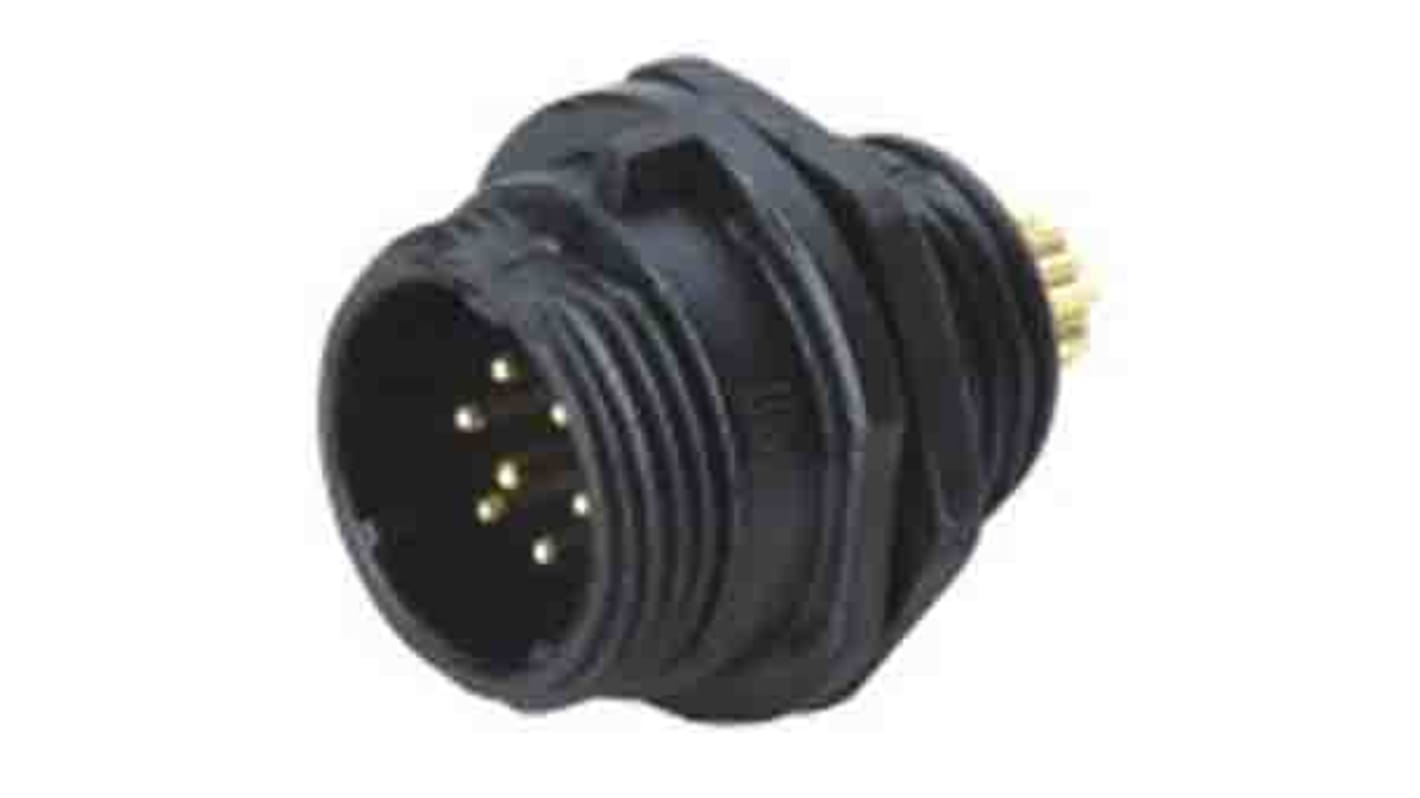

RS PRO Circular Connector, 4 Contacts, Panel Mount, Miniature Connector, Plug, Male, IP68
- RS Stock No.:
- 144-0625
- Brand:
- RS PRO
2 In stock for delivery within 1 working days
Added
Price Each
£6.70
(exc. VAT)
£8.04
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £6.70 |
| 10 - 49 | £6.36 |
| 50 - 99 | £6.04 |
| 100 + | £5.70 |
- RS Stock No.:
- 144-0625
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Front Mount Plug 5A/13A Circular Connectors (Threaded) IP68
From RS Pro, these threaded plugs are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. Typical applications include outdoor security, medical devices, communications and marine equipment. When choosing a male connector, this version should really be one you consider.
Features and Benefits
Threaded Coupling
13 mm cutout
IP68 rated waterproof connector
Material: Plastic
Termination: Solder
5 A or 13 A versions available
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 4 |
| Mounting Type | Panel Mount |
| Connector Size | Miniature |
| Plug/Socket | Plug |
| Contact Gender | Male |
| Termination Method | Solder |
| IP Rating | IP68 |
| Current Rating | 5.0A |
| Body Orientation | Straight |
| Voltage Rating | 200 V |
| Mating Type | Plug-In |
| Housing Material | Nylon |
| Pole Format | 4P |
| Contact Plating | Gold |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass |
