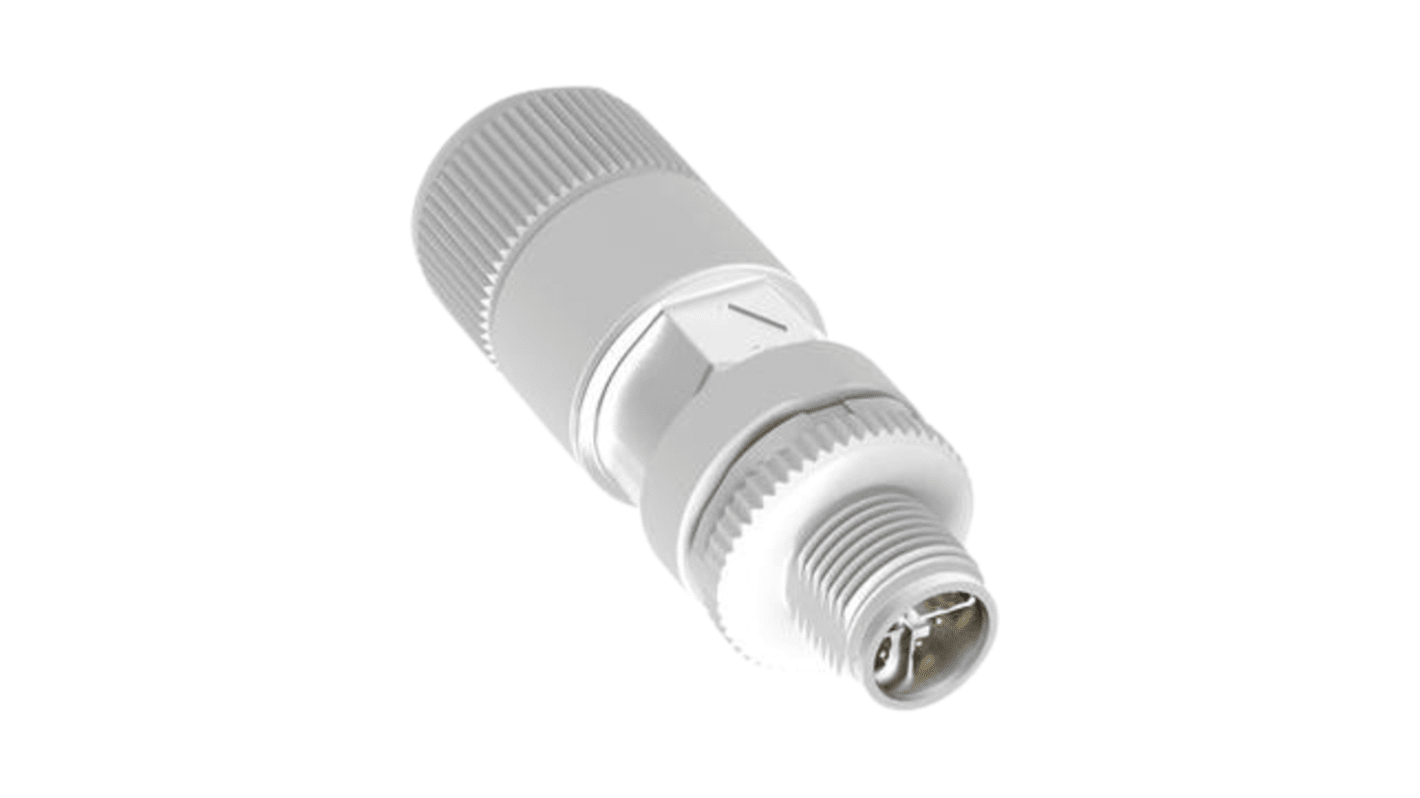

Molex Circular Connector, 8 Contacts, Cable Mount, M12 Connector, Socket, Male, IP67, Micro-Change Series
- RS Stock No.:
- 134-8793
- Mfr. Part No.:
- 120341-0806
- Brand:
- Molex
Save 29% when you buy 20 units
Subtotal (1 bag of 1 unit)*
£66.31
(exc. VAT)
£79.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag |
---|---|
1 - 4 | £66.31 |
5 - 9 | £60.28 |
10 - 14 | £53.78 |
15 - 19 | £49.80 |
20 + | £46.62 |
*price indicative
- RS Stock No.:
- 134-8793
- Mfr. Part No.:
- 120341-0806
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 8 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | IDC | |
IP Rating | IP67 | |
Current Rating | 500.0mA | |
Series | Micro-Change | |
Body Orientation | Straight | |
Coding | X | |
Voltage Rating | 48.0 V | |
Mating Type | Threaded | |
Housing Material | Polymer | |
Pole Format | 8 | |
Shielded/Unshielded | Shielded | |
Contact Plating | Gold over Nickel | |
Minimum Operating Temperature | -40°C | |
Series Number | 120341 | |
Outer Diameter | 5.50 → 9mm | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 8 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method IDC | ||
IP Rating IP67 | ||
Current Rating 500.0mA | ||
Series Micro-Change | ||
Body Orientation Straight | ||
Coding X | ||
Voltage Rating 48.0 V | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Pole Format 8 | ||
Shielded/Unshielded Shielded | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -40°C | ||
Series Number 120341 | ||
Outer Diameter 5.50 → 9mm | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- DE
Molex Micro-Change Series Circular Connector, 8 Contacts, IP67 - 120341-0806
This circular connector is designed for high-performance applications, featuring an 8-pin configuration that ensures reliable connectivity in demanding environments. The M12 size enables seamless integration into various systems, while the durable polymer housing withstands harsh conditions. Its IP67 rating guarantees protection against dust and water ingress, making it an excellent choice for industrial applications.
Features & Benefits
• Supports up to 500mA current rating for reliable performance
• IP67 rated for robust protection against moisture and dust
• Male socket connector provides secure connections in automation
• Gold over nickel plating enhances resistance to corrosion and wear
• Shielded design minimises signal interference in sensitive usage
• IP67 rated for robust protection against moisture and dust
• Male socket connector provides secure connections in automation
• Gold over nickel plating enhances resistance to corrosion and wear
• Shielded design minimises signal interference in sensitive usage
Applications
• Utilised in automation systems requiring secure connections
• Effective in industrial machinery for dependable data transmission
• Suitable for use in robotics to ensure robust wiring
• Implemented in environmental monitoring equipment for accurate readings
• Effective in industrial machinery for dependable data transmission
• Suitable for use in robotics to ensure robust wiring
• Implemented in environmental monitoring equipment for accurate readings
What temperature range can this connector operate within?
It operates effectively within a temperature range of -40°C to +85°C, ensuring reliability in extreme conditions.
How does the shielded design benefit electrical performance?
The shielded construction reduces electromagnetic interference, facilitating clearer signal transmission and improving overall system integrity.
What wiring method does it use for connectivity?
The connector employs an IDC termination method, which simplifies the connection process and ensures a secure fit for reliable operation.
