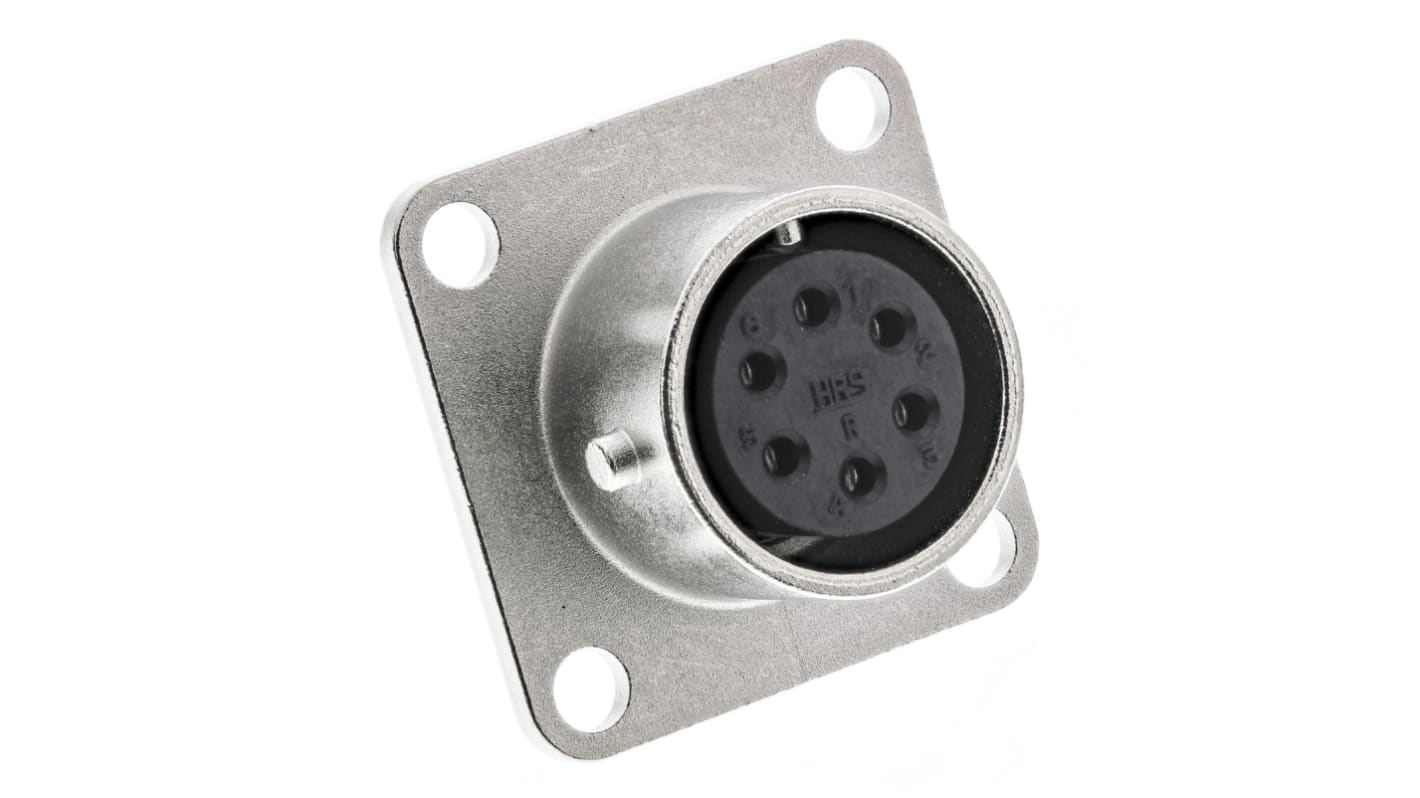

Hirose Circular Connector, 6 Contacts, Panel Mount, Miniature Connector, Socket, Female, RM Series
- RS Stock No.:
- 125-8216
- Mfr. Part No.:
- RM12BRB-6S(81)
- Brand:
- Hirose
136 In stock - FREE next working day delivery available
Added
Price Each
£16.65
(exc. VAT)
£19.98
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £16.65 |
| 10 - 24 | £15.82 |
| 25 - 49 | £14.97 |
| 50 + | £14.15 |
- RS Stock No.:
- 125-8216
- Mfr. Part No.:
- RM12BRB-6S(81)
- Brand:
- Hirose
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
RM12B Connectors with Bayonet Sleeve
RM12B circular connectors with a bayonet sleeve locking mechanism and a shell size of 12. These RM12B circular connectors have a nickel plated brass and zinc alloy shell and a synthetic resin insulator.
Shell size 12
Note
For strain relief, see Hirose JR range e.g stock no. 537-2401.
Hirose RM Range
10-way standard (15mm mating face dia.) connectors for video equipment. Consisting of cable or chassis mounting plugs and sockets with metal shells and solder type terminations.
• A rugged miniaturized circular connector
• Gives excellent mechanical and electrical performance
• Gives excellent mechanical and electrical performance
HIROSE 15mm Circular Video Connectors (Threaded)
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Mounting Type | Panel Mount |
| Connector Size | Miniature |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Series | RM |
| Body Orientation | Straight |
| Voltage Rating | 350.0 V , 490.0 V |
| Shell Size | 12 |
| Mating Type | Bayonet |
| Housing Material | Aluminium Alloy, Brass, Zinc Alloy |
| Contact Plating | Silver |
| Maximum Operating Temperature | +85°C |
| Contact Material | Brass, Copper |
| Minimum Operating Temperature | -25°C |
