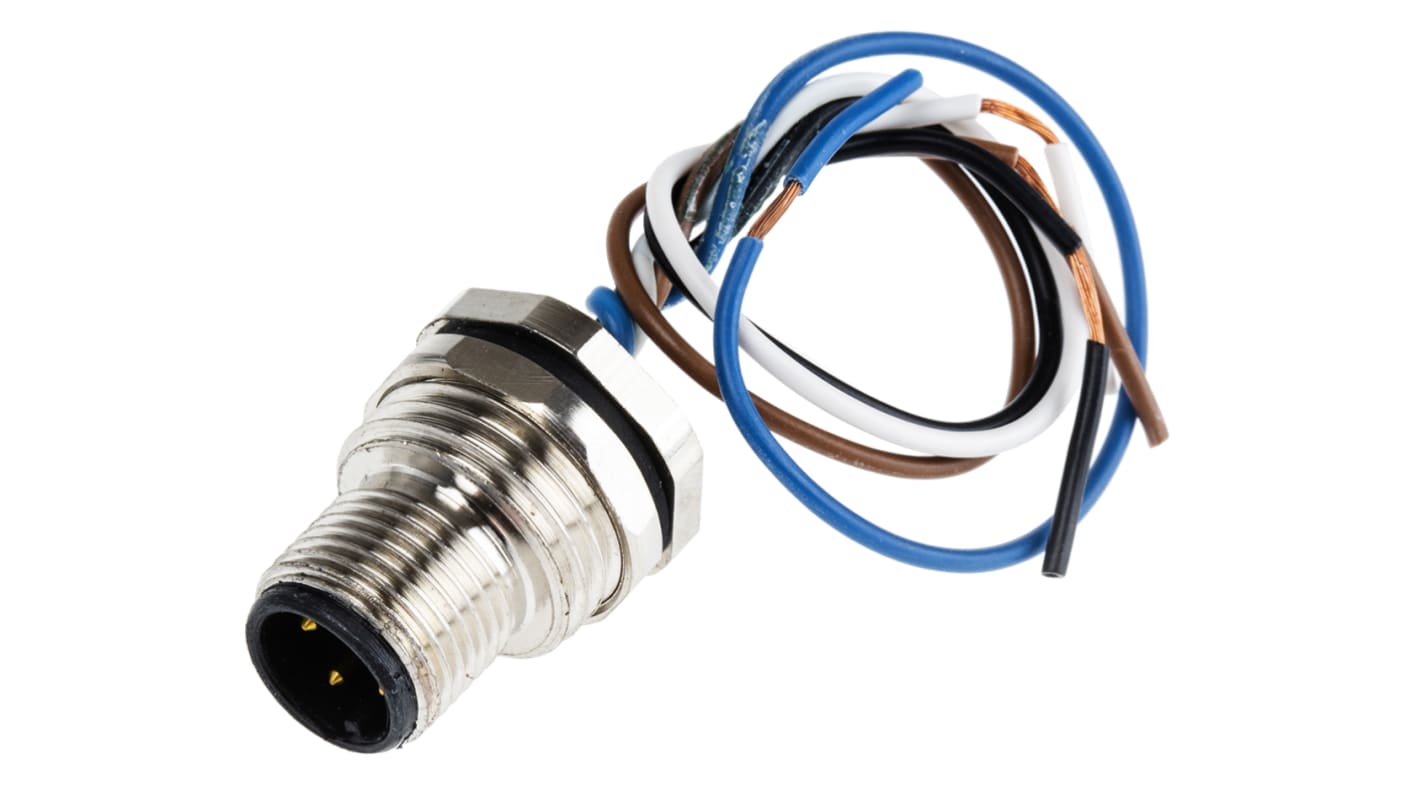

RS PRO Circular Connector, 4 Contacts, Panel Mount, M12 Connector, Plug, Male, IP67, CPM12 Series
- RS Stock No.:
- 124-7079
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£7.93
(exc. VAT)
£9.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 537 unit(s) ready to ship
- Plus 82 unit(s) ready to ship from another location
- Plus 110 unit(s) shipping from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.93 |
| 5 - 24 | £7.55 |
| 25 - 49 | £7.13 |
| 50 + | £6.33 |
*price indicative
- RS Stock No.:
- 124-7079
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 4 | |
| Product Type | Circular Connector | |
| Mount Type | Panel Mount | |
| Current | 4A | |
| Connector Size | M12 | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP67 | |
| Orientation | Straight | |
| Series | CPM12 | |
| Voltage | 250.0V | |
| Termination Type | Pre-Wired | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | No | |
| Contact Plating | Gold Plated | |
| Contact Material | Copper Zinc Alloy | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 4 | ||
Product Type Circular Connector | ||
Mount Type Panel Mount | ||
Current 4A | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP67 | ||
Orientation Straight | ||
Series CPM12 | ||
Voltage 250.0V | ||
Termination Type Pre-Wired | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals No | ||
Contact Plating Gold Plated | ||
Contact Material Copper Zinc Alloy | ||
- COO (Country of Origin):
- IN
M12 Connector M16 Clamp Nut
A series of RS Pro M12 panel-mounted connectors. Each connector within this range is supplied with a partially stripped 100 mm, 200 mm or 300 mm cable, making it perfect for your application. With IP67 rating and a durable nickel plated brass housing material, each connector is excellent within harsh environments. All models are highly reliable and excellent quality.
Features & Benefits
Contact Plating: Gold plated;Supplied with a neoprene O-Ring;Number of poles: 4;Both Female and Male versions available
