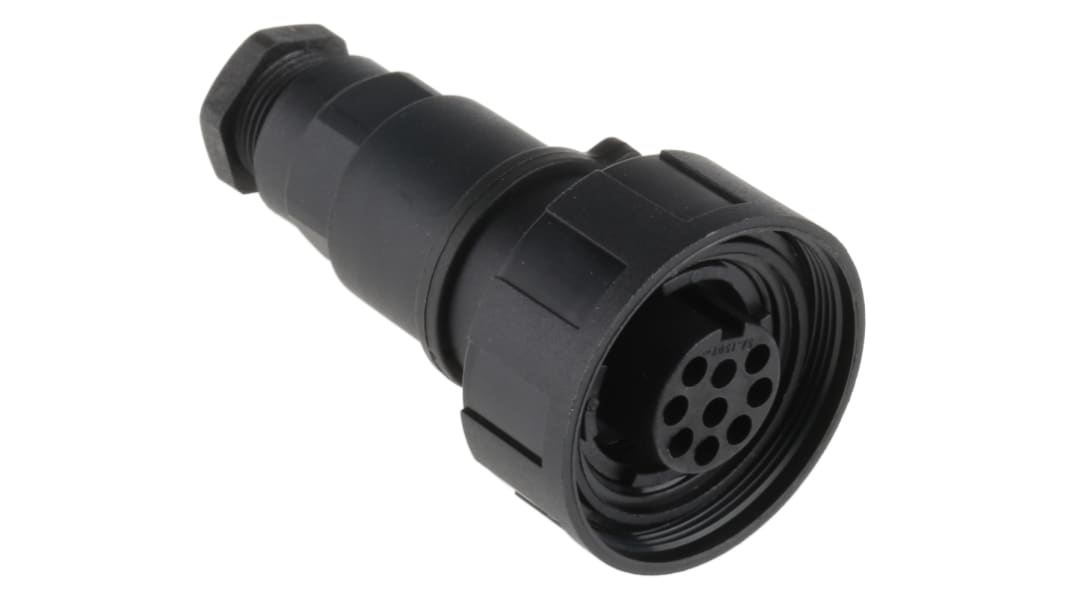

Bulgin Circular Connector, 9 Contacts, Cable Mount, Socket, Female, IP68, Standard Buccaneer Series

Save 20% when you buy 100 units

Subtotal (1 unit)*

£18.16

(exc. VAT)

£21.79

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 161 unit(s) ready to ship
  • Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£18.16
10 - 49£16.69
50 - 99£15.78
100 +£14.49

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
452-136
Distrelec Article No.:
144-62-115
Mfr. Part No.:
PX0728/S
Brand:
Bulgin
Find similar products by selecting one or more attributes.
Select all

Brand

Bulgin

Number of Contacts

9

Mounting Type

Cable Mount

Connector Size

Standard

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Crimp

IP Rating

IP68

Current Rating

5.0A

Body Orientation

Straight

Series

Standard Buccaneer

Voltage Rating

150.0 V

Shell Size

38

Mating Type

Threaded

Housing Material

Polymer

Strain Relief

No

Contact Plating

Tin

Contact Material

Copper

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-20°C

COO (Country of Origin):
TN

Bulgin Circular Connector


The Bulgin Buccaneer series 9-poles female circular flex cable connector has a socket type connection. This connector has a voltage rating of 150VAC/DC and current rating is up to 5A per contact. This cable mounting connector is ideal for use in challenging conditions. The connector shell is made from glass-filled polyamide with gold-plated copper alloy contacts. The connectors also feature a positive locking mating system that means the connector cannot be mismatched.
Environment
The standard series of buccaneer connectors are protected to IP68 when mated. This means they are dust-tight and resistant to particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.
Frequently asked questions (FAQs)Q: Are there accessories available for this connector?
A: There are connector caps available for standard buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The standard buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.
Q: What are the mating requirements of this connector?
A: The Buccaneer standard series cable connectors mate with corresponding in-line connectors for a cable-to-cable connection, or with a panel, chassis and PCB connectors.
Q: Are contacts supplied with this connector?
A: The connector comes complete with contacts.

Features and Benefits


Crimp termination
Straight body orientation
Cable acceptance ranges between 6mm and 8mm
Easy assembly, no special tools required
Insulation resistance is greater than 104Mohm
Operation temperature ranges between -20°C and 70°C
Positive locking keyways
Unshielded
Water and dustproof

Applications


Electrical equipment
Industrial automation

Certifications


CSA certified
IP68 rated
UL approved
VDE approved

Approvals

CSA; UL; VDE
