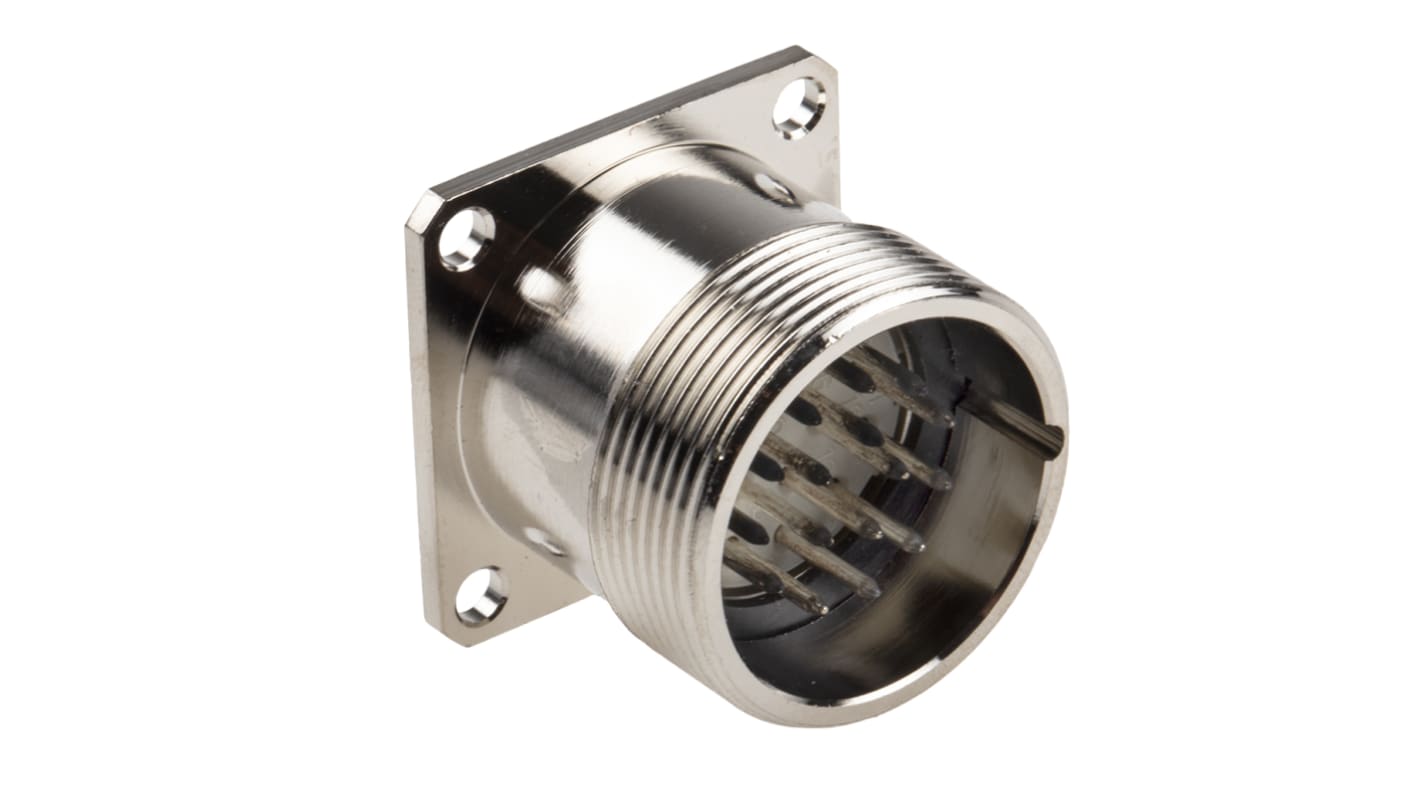

Lapp Circular Connector, 16 Contacts, Panel Mount, Plug, IP65, EPIC Series

View this category
Bulk discount available

Subtotal (1 unit)*

£29.51

(exc. VAT)

£35.41

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£29.51
5 - 9£26.56
10 - 24£25.06
25 +£23.62

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Lapp, Epic Series R 16 Pole Din Plug, 7.5A, 1.5 kV IP65, Screw Lock, Male, Through Hole
RS Stock No.
227-7814

Each

£26.39

(exc. VAT)

£31.67

(inc. VAT)

RS Stock No.:
234-708
Mfr. Part No.:
50101200+00008701
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Number of Contacts

16

Mounting Type

Panel Mount

Plug/Socket

Plug

Termination Method

Crimp

IP Rating

IP65

Current Rating

7.5A

Series

EPIC

Body Orientation

Straight

Voltage Rating

1.5 kV

Mating Type

Screw Lock

Housing Material

Copper

Contact Plating

Silver

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Contact Material

Copper

COO (Country of Origin):
DE

Epic Series R Flange Mount Circular Connectors


From Lapp, the Epic Series R range of circular connectors presents a compact solution to signal and power applications. Featuring a high contact density within a relatively small shell size, these connectors are ideal when space saving is a consideration.

These front and back panel mounting connectors have a robust flange that can screw into a surface for an assured connection.

The R Series connectors have a robust copper alloy with nickel plating construction, which offers excellent mechanical protection. They also have a screw locking mating system, and are well sealed and suitable for use in demanding environments. There are also dust-caps available to ensure maximum protection even when not mated.

Features and Benefits

• Compact Size
• Screw Locking Mating
• IP65
• Corrosion Resistant
• Mechanical Protection
• Operating temperature of -40°C to +125°C

Applications

These Lapp R series circular connectors are designed for use with multicore cables in all manner of industrial signal applications.

• Machine and Equipment Manufacturing
• Measurement and Control Technology
• Automation

Environment

The Epic Series R circular connectors are protected to IP65. This means they are dust tight and resistant to low pressure water spray. They also have a good degree of mechanical resistance, and are resistant to corrosion. As such they present a low maintenance connector solution for most indoor environments, and even some open air applications.

Mating Parts

Panel sockets and plugs connect with cable-mounted counterparts.

• 531-790 is an Epic R Series 9 pole circular connector plug
• 115-3335 is an Epic R Series 9 pole circular connector plug
• 234-657 is an Epic R Series 9 pole circular connector socket
• 115-3307 is an Epic R Series 12 pole circular connector plug
• 531-807 is an Epic R Series 12 pole circular connector plug
• 234-663 is an Epic R Series 12 pole circular connector socket
• 531-813 is an Epic R Series 16 pole circular connector socket
• 234-679 is an Epic R Series 16 pole circular connector socket
• 130-5104 is an Epic R Series 21 pole circular connector plug
• 130-5126 is an Epic R Series 26 pole circular connector plug

Accessories

A dust cap is available for flange mounted Epic Series R circular connectors. 531-829.

Note

Panel-mount shells with pin inserts will only mate with cable-mount shells with socket inserts and the panel-mount shells with socket inserts will only mate with the cable-mount shells with pin inserts.

Note

Panel-mount shells with pin inserts will only mate with cable-mount shells with socket inserts and the panel-mount shells with socket inserts will only mate with cable-mount shells with pin inserts.,Further note: The in-line coupler is designed to mate with cable mount connectors of the opposite gender.
