From Lapp, the CIRCON M23 series of circular connectors are a rugged and compact solution to industrial connector applications. With a standard M23 threaded housing for easy and assured mating, the connectors also form a tight seal when mated to prevent environmental ingress. Coupled with their nickel-plated zinc shell, which offers excellent mechanical protection, the CIRCON M23 series of connectors are durable and reliable.

The easy to assemble connector kits also feature an indented area for use with colour coding rings, which are an ideal way to identify connectors for quick and easy cable management.

These panel mounted connectors have a robust flange that can screw-in to a panel for a reliable connection to machinery or relays. There is also a dust cap available to ensure panel mount connectors are environmentally sealed even when unmated.

Features and Benefits

• Designed to DIN Specification EN61984
• Protection Class IP68
• Resistant to Vibration, Corrosion and EMI
• Contact resistance <4mΩ
• Quick and Easy Assembly
• Easy to Identify Marker System
• Operating Temperature Range -25°C to +125°C
UL, CSA and VDE approved

Environment

These robust connectors seal to IP68, which means they are highly resistant to dust ingress and resistant to water even when temporarily submerged. As such, they are suitable for use in harsh indoor environments, and even for some outdoor applications.

The connector is also designed to be resistant to damage by vibration, which makes them suitable for use with heavy industrial machinery.

Applications
These CIRCON M23 panel mount connectors are for use with multicore cables in a variety of industrial control signal applications, and for servo drive encoder feedback.

• Robotics
• Control and Automation
• Printing

Mating Connectors

Panel mounted CIRCON M23 connectors are compatible with cable mounted connectors.

• 219-475 is a 7 way cable mounted socket
• 219-481 is an 8+1 cable mounted socket
• 218-905 is a 12 way cable mounted socket
• 218-955 is a 17 way cable mounted socket
• 218-911 is a 7 way cable mounted plug
• 218-927 is an 8+1 way cable mounted plug
• 218-933 is a 12 way cable mounted plug
• 218-949 is a 17 way cable mounted plug

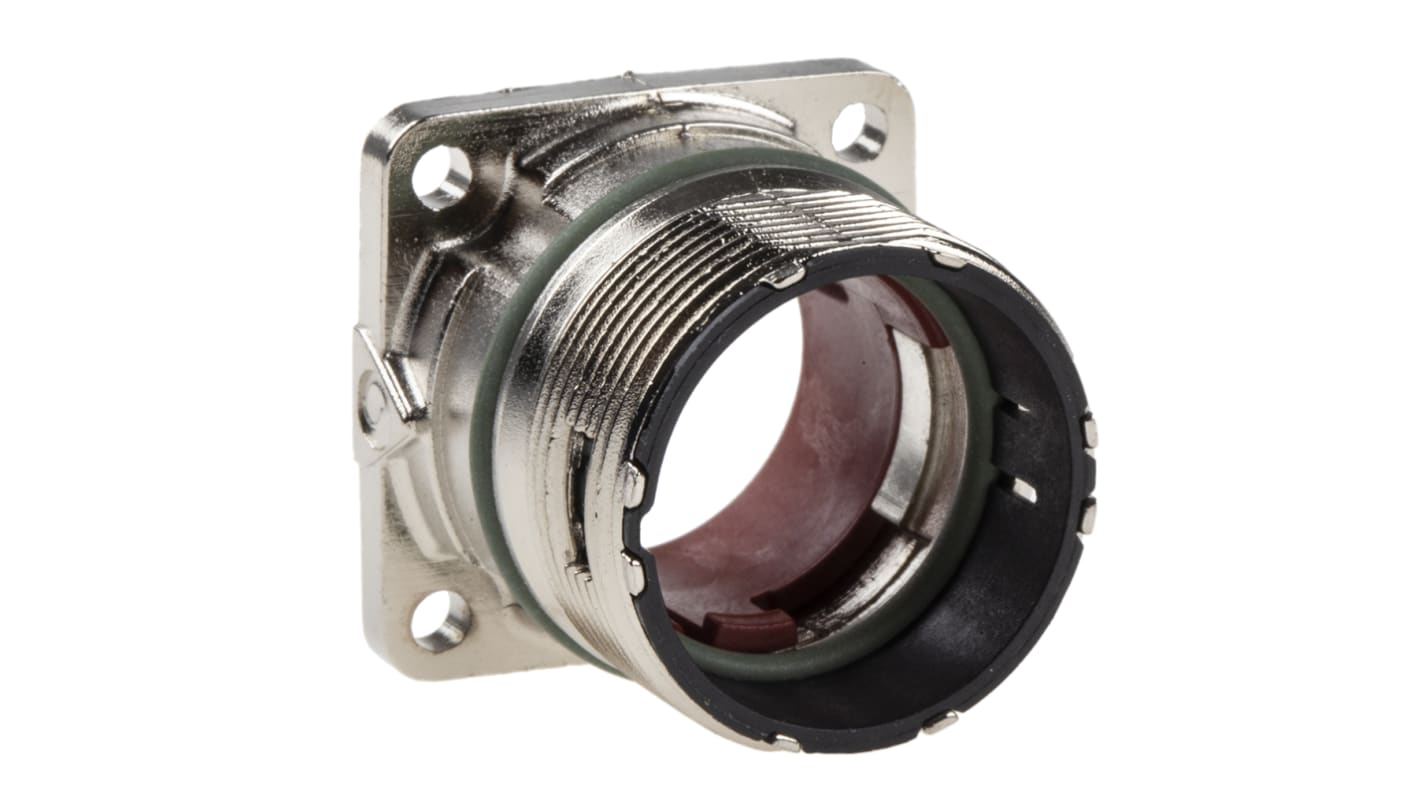

This circular connector, part of the SIGNAL M23 series, is designed for panel mounting and is suitable for use in challenging environments. With a compact M23 size and 12 contact pins, this male solder connector facilitates dependable connections in automation and control applications. It features a robust nickel-plated zinc housing that ensures resistance to chemicals and environmental conditions.

• IP68 rating provides waterproof protection in demanding settings
• Straight body orientation allows for straightforward installation
• Gold-plated contacts enhance conductivity and reliability
• Permanent vibration protection ensures long-lasting performance
• Colour coding simplifies the connection process
• Rated for operating temperatures from -25°C to +125°C

• Ideal for servo drives in automation systems
• Utilised in measurement and control technology
• Suitable for mechanical and plant engineering
• Commonly used in wind energy applications

Yes, it features an IP68 rating for waterproof protection.

Yes, the design effectively minimises interference.

Yes, it has a current rating of 7.0A.

Yes, it allows for safe fixing with 4 screws.

Epic® Circon M23 Series

The Epic® Circon M23 connector is a high quality circular connector ideal for signal transmission and servo drive encoder feedback applications in the plastics, printing, analytical instrument, robotic, and machine tool industries, and any other industrial or commercial application where a compact, rugged connector is required. The connectors guarantee an excellent EMC shielding, increased safety against intrusion of water and a clear visible and tangible action when mating.

Complies with the requirements of DIN EN 61984
Quick and easy to assemble
Highest protection against vibration, corrosion and EMI
Protection class IP68
Solder cup contacts
Contact resistance <4mΩ
100 mating cycles
Easy and fast labelling of the connector through integrated marking system
UL, CSA and VDE approved
