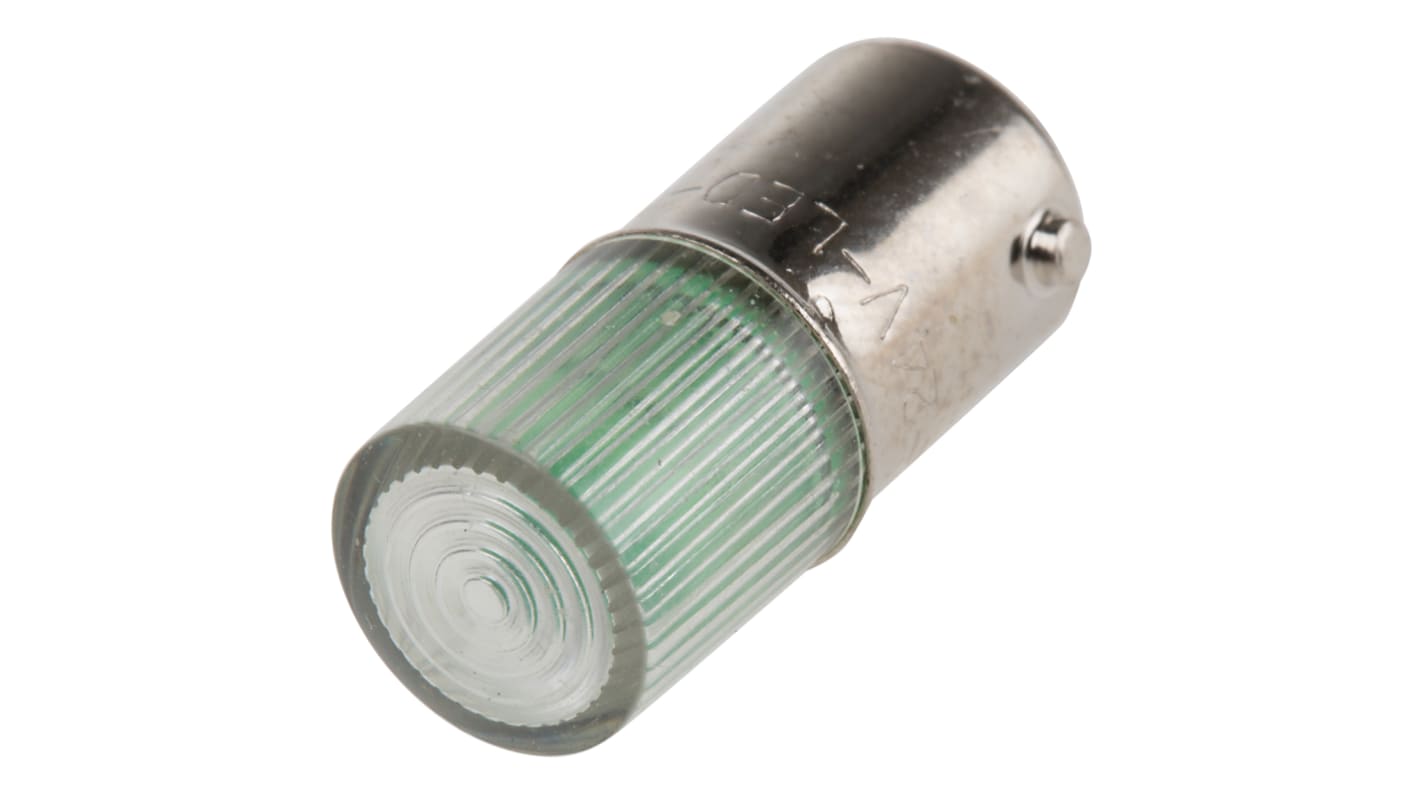

RS PRO Green LED Reflector Bulb, 24V dc, BA9s Base, 11mm Diameter, 85mcd
- RS Stock No.:
- 212-323
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 212-323
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Voltage Rating | 24V dc | |
| Light Output Colour | Green | |
| Intensity | 85mcd | |
| Lamp Base | BA9s | |
| Chip Type | Single Chip | |
| Diameter | 11mm | |
| Length | 28mm | |
| Viewing Angle | 180 ° | |
| Peak Wavelength | 568nm | |
| Current Rating | 35mA | |
| Life Hours | 60000h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Voltage Rating 24V dc | ||
Light Output Colour Green | ||
Intensity 85mcd | ||
Lamp Base BA9s | ||
Chip Type Single Chip | ||
Diameter 11mm | ||
Length 28mm | ||
Viewing Angle 180 ° | ||
Peak Wavelength 568nm | ||
Current Rating 35mA | ||
Life Hours 60000h | ||
- COO (Country of Origin):
- GB
BA9s Flashing, 24Vdc, Single-Chip LED's
Flashing single chip LEDs
Body coded R, G or Y to indicate colour
Anode is base contact
Body coded R, G or Y to indicate colour
Anode is base contact
Multi-Chip LEDs
Multi-chip LEDs are semi-conducting alternatives to incandescent filament lamps. Construction consists of standard filament lamp bases incorporating a current limiting resistor and a cluster of LED chips bonded onto a substrate. Multi-chip LEDs have many advantages over standard filament lamps.
Very high immunity to shock and vibration
Current consumption is between 50 and 65% lower
Lower operating temperatures
Current consumption is between 50 and 65% lower
Lower operating temperatures
Note
The operating voltage must not be exceeded by more than 10% as this will result in reduced life expectancy.
