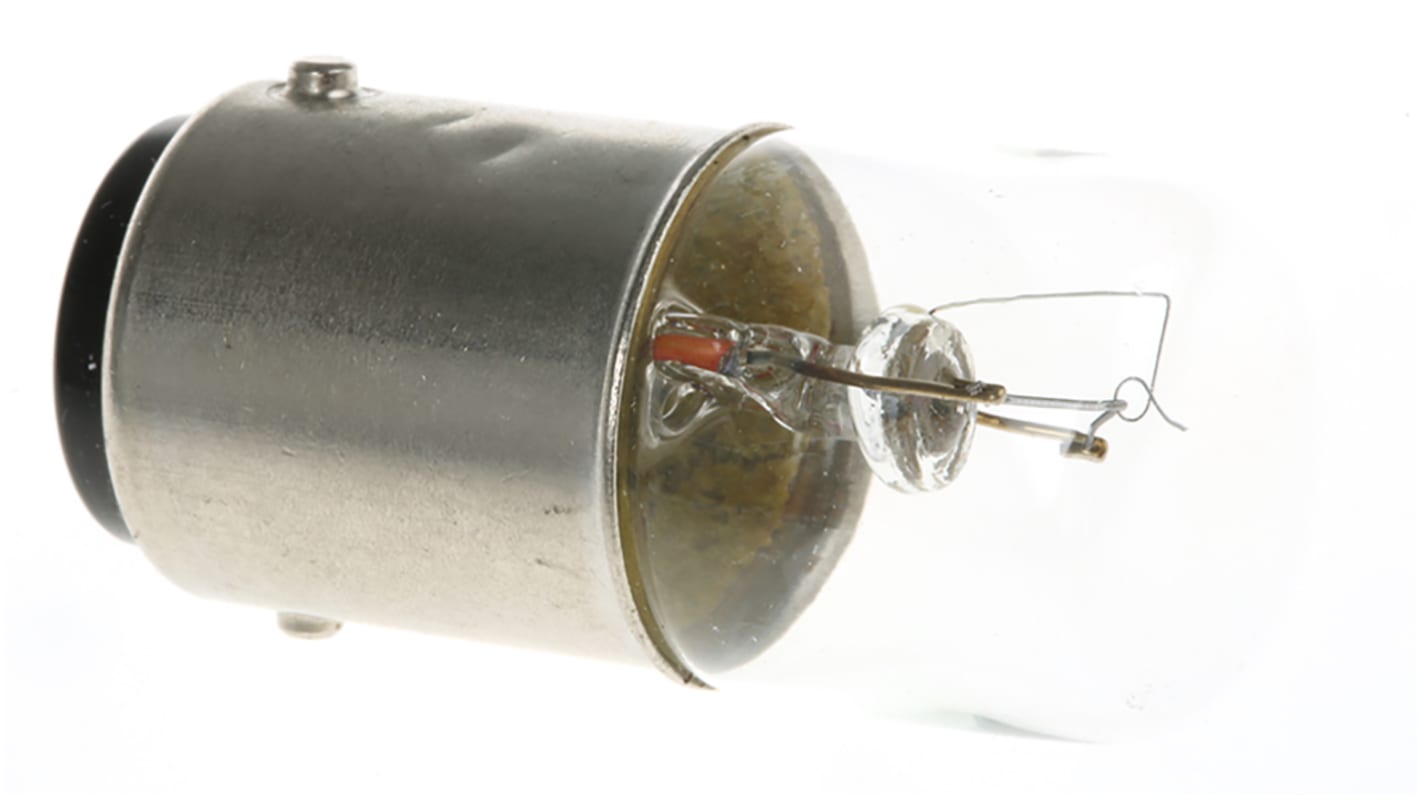

RS PRO BA15d Indicator Light, Clear, 12 V, 400 mA, 3000h
- RS Stock No.:
- 339-3377
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.86
(exc. VAT)
£9.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 160 unit(s) ready to ship
- Plus 235 unit(s) ready to ship from another location
- Plus 500 unit(s) shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.572 | £7.86 |
| 50 - 245 | £1.444 | £7.22 |
| 250 - 495 | £1.278 | £6.39 |
| 500 - 1245 | £1.106 | £5.53 |
| 1250 + | £0.944 | £4.72 |
*price indicative
- RS Stock No.:
- 339-3377
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Voltage Rating | 12 V | |
| Wattage | 5 W | |
| Lamp Base | BA15d | |
| Current Rating | 400 mA | |
| Diameter | 16mm | |
| Lamp Size | T16 | |
| Length | 35 mm | |
| Lens Colour | Clear | |
| Luminosity | 35 lm | |
| Life Hours | 3000h | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Voltage Rating 12 V | ||
Wattage 5 W | ||
Lamp Base BA15d | ||
Current Rating 400 mA | ||
Diameter 16mm | ||
Lamp Size T16 | ||
Length 35 mm | ||
Lens Colour Clear | ||
Luminosity 35 lm | ||
Life Hours 3000h | ||
- COO (Country of Origin):
- KR
T16 BA15d Tubular SBC
Filament lamps will perform to specification and give optimum life when:
a) They are powered at the rated voltage from a stabilised 50 Hz AC supply.
b) Ambient temperature is in the range 20°C to 25°C.
c) No mechanical vibration is present.
Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments (<80mA).
Power from a DC supply at the rated voltage can reduce the listed life by up to 50%.
The effect of deviation from the rated operating voltage should be noted:
5% above will reduce lamp life by up to 50%.
5% below will significantly increase lamp life.
Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
a) They are powered at the rated voltage from a stabilised 50 Hz AC supply.
b) Ambient temperature is in the range 20°C to 25°C.
c) No mechanical vibration is present.
Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments (<80mA).
Power from a DC supply at the rated voltage can reduce the listed life by up to 50%.
The effect of deviation from the rated operating voltage should be noted:
5% above will reduce lamp life by up to 50%.
5% below will significantly increase lamp life.
Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
