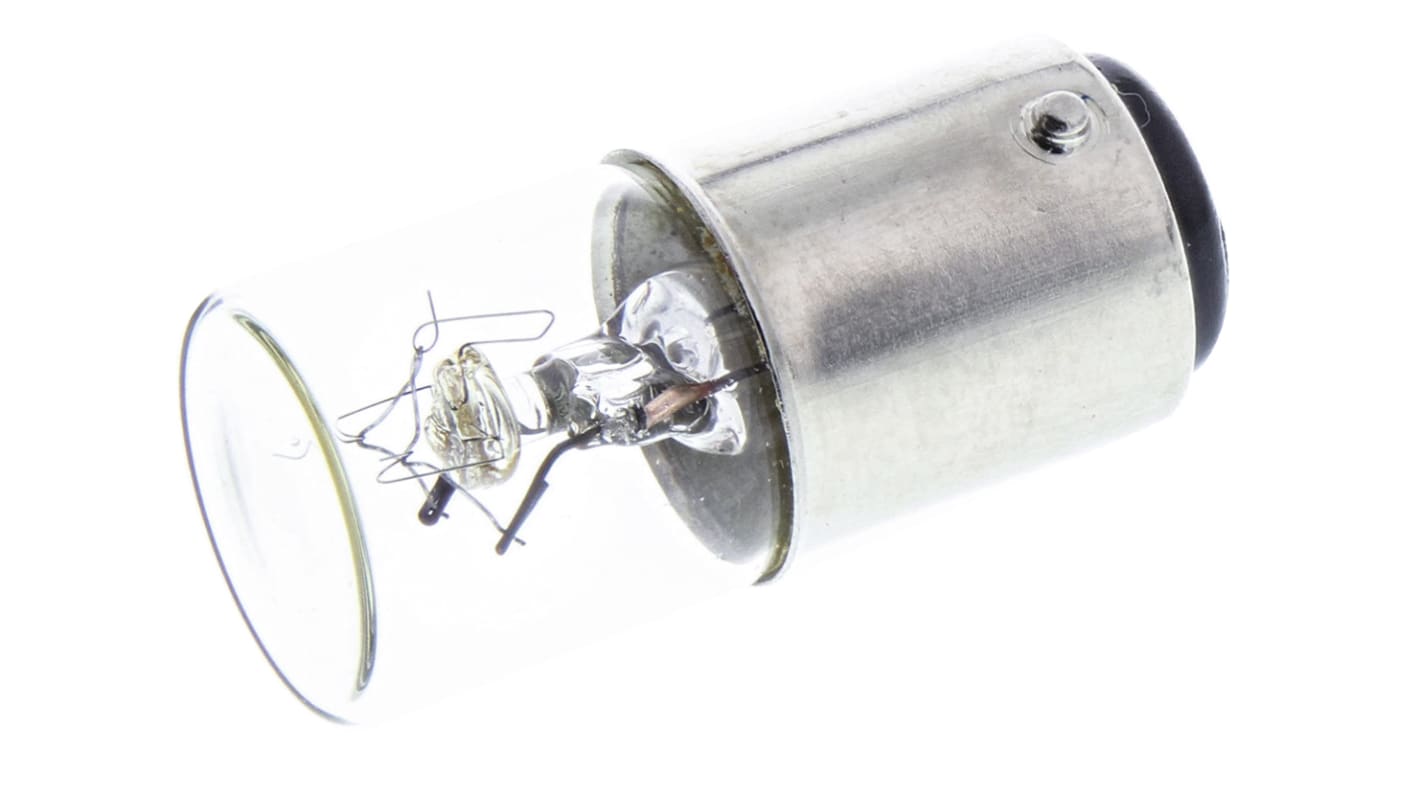

Orbitec BA15d Indicator Light, Clear, 48 V, 100 mA, 2000h

Bulk discount available

Subtotal (1 pack of 10 units)*

£28.96

(exc. VAT)

£34.75

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 150 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£2.896£28.96
50 - 240£2.617£26.17
250 - 490£2.334£23.34
500 - 990£2.054£20.54
1000 +£1.949£19.49

*price indicative

RS Stock No.:
171-7052
Mfr. Part No.:
B3528
Brand:
Orbitec
Find similar products by selecting one or more attributes.
Select all

Brand

Orbitec

Wattage

5W

Voltage Rating

48 V

Lamp Base

BA15d

Current Rating

100 mA

Diameter

16mm

Lamp Size

T5

Length

35 mm

Lens Colour

Clear

Life Hours

2000h

COO (Country of Origin):
KR

BA 15d filament lamps


Filament lamps will perform to specification and give optimum life when:
a) They are powered at the rated voltage from a stabilised 50 Hz AC supply.
b) Ambient temperature is in the range 20°C to 25°C.
c) No mechanical vibration is present.
Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments (<80mA).
Power from a DC supply at the rated voltage can reduce the listed life by up to 50%.
The effect of deviation from the rated operating voltage should be noted:
5% above will reduce lamp life by up to 50%.
5% below will significantly increase lamp life.
Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
