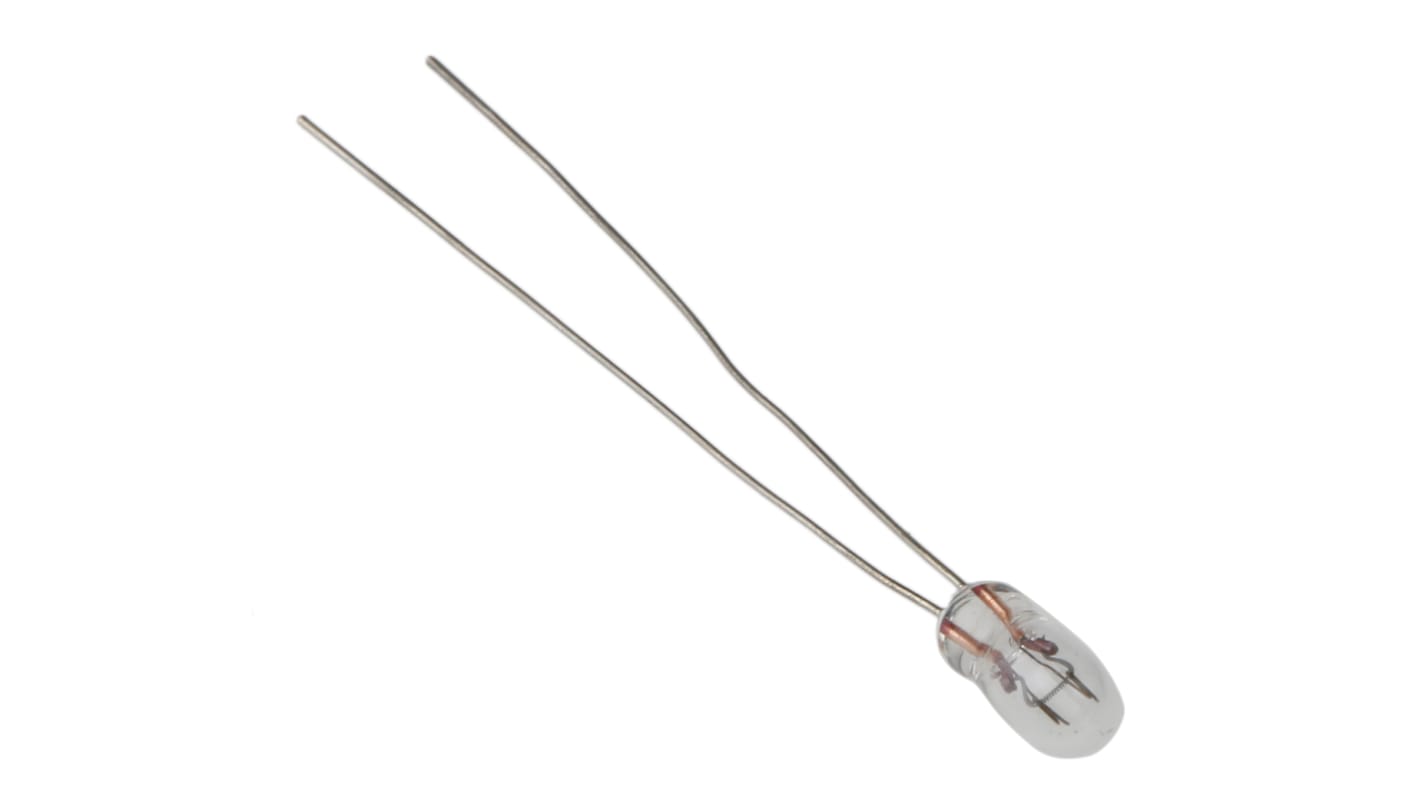

RS PRO Wire Terminal Indicator Light, Clear, 28 V, 24 mA, 4000h
- RS Stock No.:
- 587-686
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 10 units)*
£8.95
(exc. VAT)
£10.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,180 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.895 | £8.95 |
50 - 240 | £0.872 | £8.72 |
250 - 490 | £0.785 | £7.85 |
500 - 990 | £0.746 | £7.46 |
1000 + | £0.71 | £7.10 |
*price indicative
- RS Stock No.:
- 587-686
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Voltage Rating | 28 V | |
Lamp Base | Wire Terminal | |
Current Rating | 24 mA | |
Diameter | 3.18mm | |
Lamp Size | T1 | |
Length | 6.35 mm | |
Lens Colour | Clear | |
Luminosity | 1.9 lm | |
Life Hours | 4000h | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Voltage Rating 28 V | ||
Lamp Base Wire Terminal | ||
Current Rating 24 mA | ||
Diameter 3.18mm | ||
Lamp Size T1 | ||
Length 6.35 mm | ||
Lens Colour Clear | ||
Luminosity 1.9 lm | ||
Life Hours 4000h | ||
- COO (Country of Origin):
- TW
T-1 (3mm) Wire-Ended
A range of T-1 (3mm) wire ended filament indicators, specifically intended for illumination in confined spaces, e.g. meters, switches, etc.
Wire-Ended & Bi-Pin
Filament lamps will perform to specification and give optimum life when:,a) They are powered at the rated voltage from a stabilised 50Hz ac supply,b) Ambient temperature is in the range 20 to 25°C,c) No mechanical vibration is present.,Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80mA). Operation from a dc supply at rated voltage can reduce specified life by up to 50%. The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care therefore should be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
