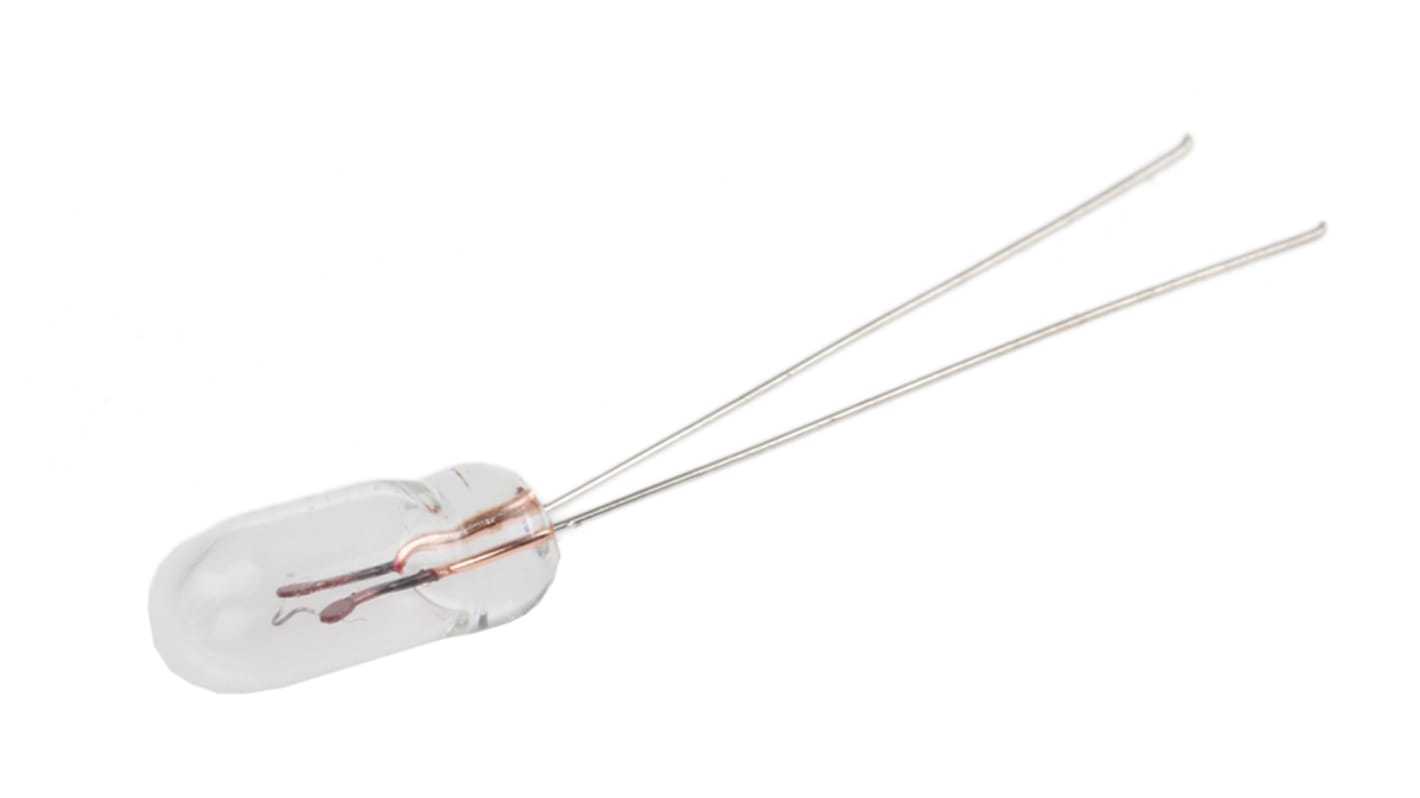

RS PRO Wire Terminal Indicator Light, Clear, 6 V, 55 mA, 10000h
- RS Stock No.:
- 106-256
- Distrelec Article No.:
- 304-17-897
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£5.27
(exc. VAT)
£6.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,790 unit(s) shipping from 22 October 2025
- Plus 60 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.527 | £5.27 |
*price indicative
- RS Stock No.:
- 106-256
- Distrelec Article No.:
- 304-17-897
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Voltage Rating | 6 V | |
Lamp Base | Wire Terminal | |
Current Rating | 55 mA | |
Diameter | 5.1mm | |
Lamp Size | T1 1/2 | |
Length | 13.2 mm | |
Lens Colour | Clear | |
Luminosity | 1 lm | |
Life Hours | 10000h | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Voltage Rating 6 V | ||
Lamp Base Wire Terminal | ||
Current Rating 55 mA | ||
Diameter 5.1mm | ||
Lamp Size T1 1/2 | ||
Length 13.2 mm | ||
Lens Colour Clear | ||
Luminosity 1 lm | ||
Life Hours 10000h | ||
- COO (Country of Origin):
- KR
T-1 (5mm) Wire-Ended
Suitable for applications in the aerospace, telecommunications and computer industries.
Wire-Ended & Bi-Pin
Filament lamps will perform to specification and give optimum life when:,a) They are powered at the rated voltage from a stabilised 50Hz ac supply,b) Ambient temperature is in the range 20 to 25°C,c) No mechanical vibration is present.,Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80mA). Operation from a dc supply at rated voltage can reduce specified life by up to 50%. The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care therefore should be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
