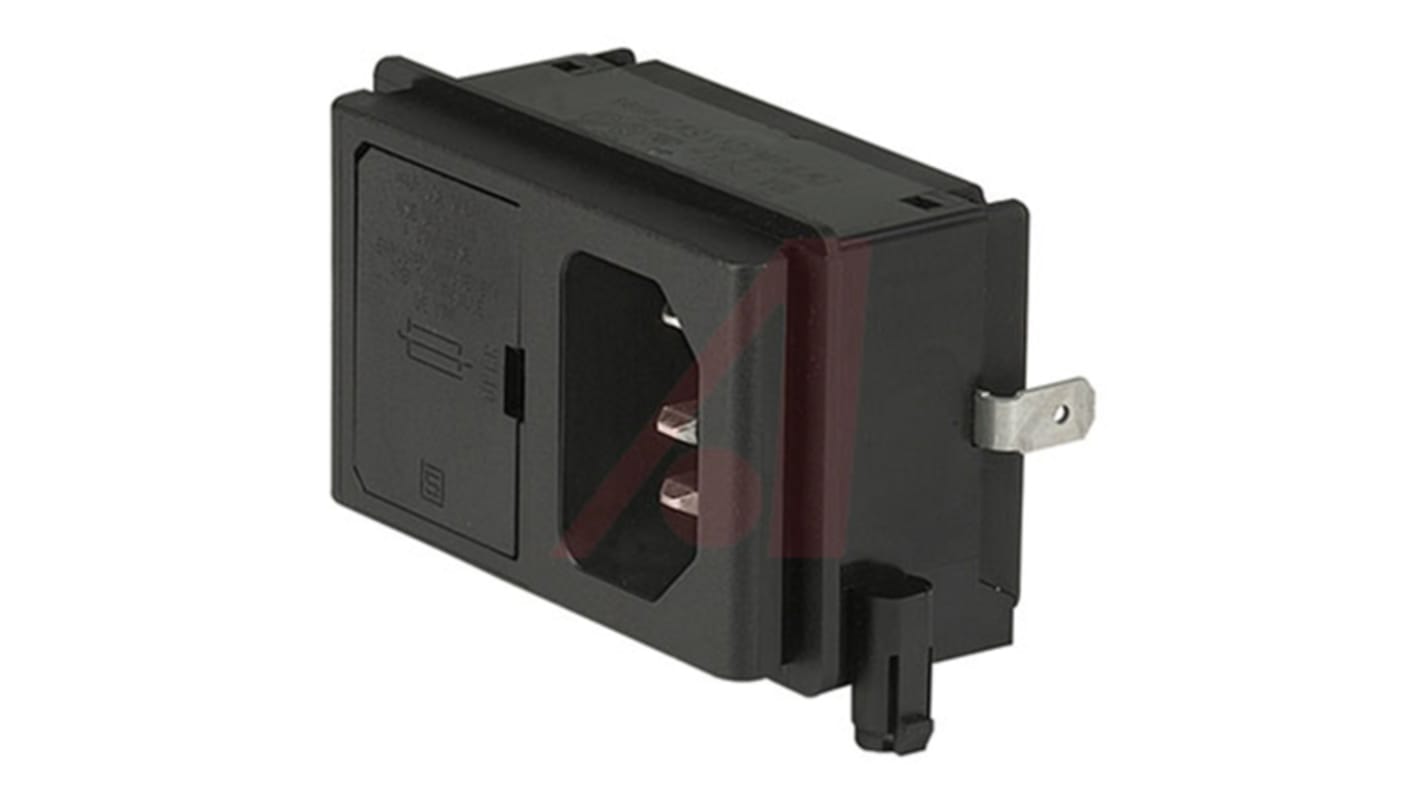

Schurter 10A, 125 V ac, 250 V ac Male Screw Filtered IEC Connector 2 Pole KP01.1352.01, Quick Connect, Solder 1 Fuse
- RS Stock No.:
- 870-0824
- Mfr. Part No.:
- KP01.1352.01
- Brand:
- Schurter
Discontinued product
- RS Stock No.:
- 870-0824
- Mfr. Part No.:
- KP01.1352.01
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
KP Series
Schurter KP series C14 IEC appliance inlets with integral 1 or 2 pole line switch. The KP series is designed for panel mounting and has two options available. A screw-on from front or rear version, or a snap-in version.
All single elements are already partially wired
Panel mounted
PCB terminals
Panel mounted
PCB terminals
Note
Fuse Holders must be ordered separately.
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Number of Fuses | 1 |
| Fuse Size | 5 x 20mm |
| Switch Type | 2 Pole |
| Termination Method | Quick Connect, Solder |
| Current Rating | 10A |
| Voltage Rating | 125 V ac, 250 V ac |
| Mounting Type | Screw |
| Operating Frequency | 50 Hz, 60 Hz |
| IEC Connector Type | C14 |
| Width | 56.1mm |
| Depth | 27.8mm |
| Height | 36mm |
