Schurter 10A, 250 V ac Snap-In Filtered IEC Connector 3-107-477
- RS Stock No.:
- 188-9540
- Mfr. Part No.:
- 3-107-477
- Brand:
- Schurter
Available to back order for despatch 10/06/2024
Added
Price Each (In a Box of 10)
£22.468
(exc. VAT)
£26.962
(inc. VAT)
| Units | Per unit | Per Box* |
| 10 - 10 | £22.468 | £224.68 |
| 20 - 40 | £20.538 | £205.38 |
| 50 - 90 | £19.983 | £199.83 |
| 100 + | £19.457 | £194.57 |
| *price indicative | ||
- RS Stock No.:
- 188-9540
- Mfr. Part No.:
- 3-107-477
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- SK
Product Details

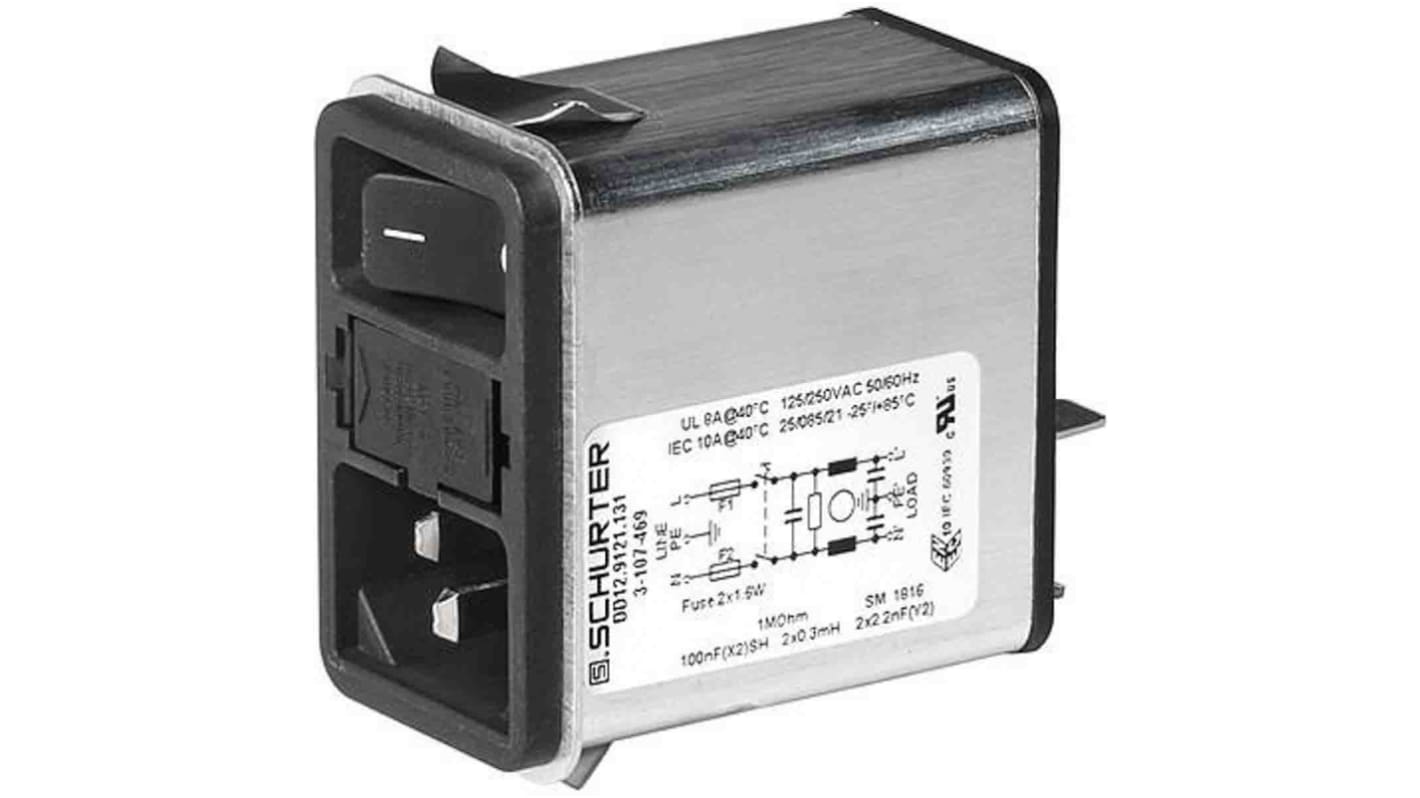

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, Line Switch 2-pole.
Panel mount: Screw-on from front side
4 Functions: Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole, Line filter in standard and medical version
V-Lock notch standard
Quick connect terminals 6.3 x 0.8 mm
Unique Selling Proposition
Various mounting options
Attractive flat design
Switch for highest inrush current
V-Lock cord retaining
Characteristics
Ultra-compact design. Ideal for low profile designs
Aluminium case provides good shielding
All single elements are already wired
Ideal for application with high transient loads
Suitable for use in equipment
Suitable for use in medical equipment
4 Functions: Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole, Line filter in standard and medical version
V-Lock notch standard
Quick connect terminals 6.3 x 0.8 mm
Unique Selling Proposition
Various mounting options
Attractive flat design
Switch for highest inrush current
V-Lock cord retaining
Characteristics
Ultra-compact design. Ideal for low profile designs
Aluminium case provides good shielding
All single elements are already wired
Ideal for application with high transient loads
Suitable for use in equipment
Suitable for use in medical equipment
Specifications
Attribute | Value |
|---|---|
| Series | DD12 |
| Current Rating | 10A |
| Voltage Rating | 250 V ac |
| Mounting Type | Snap-In |
| Dimensions | 52 x 60.9 x 32.5mm |
