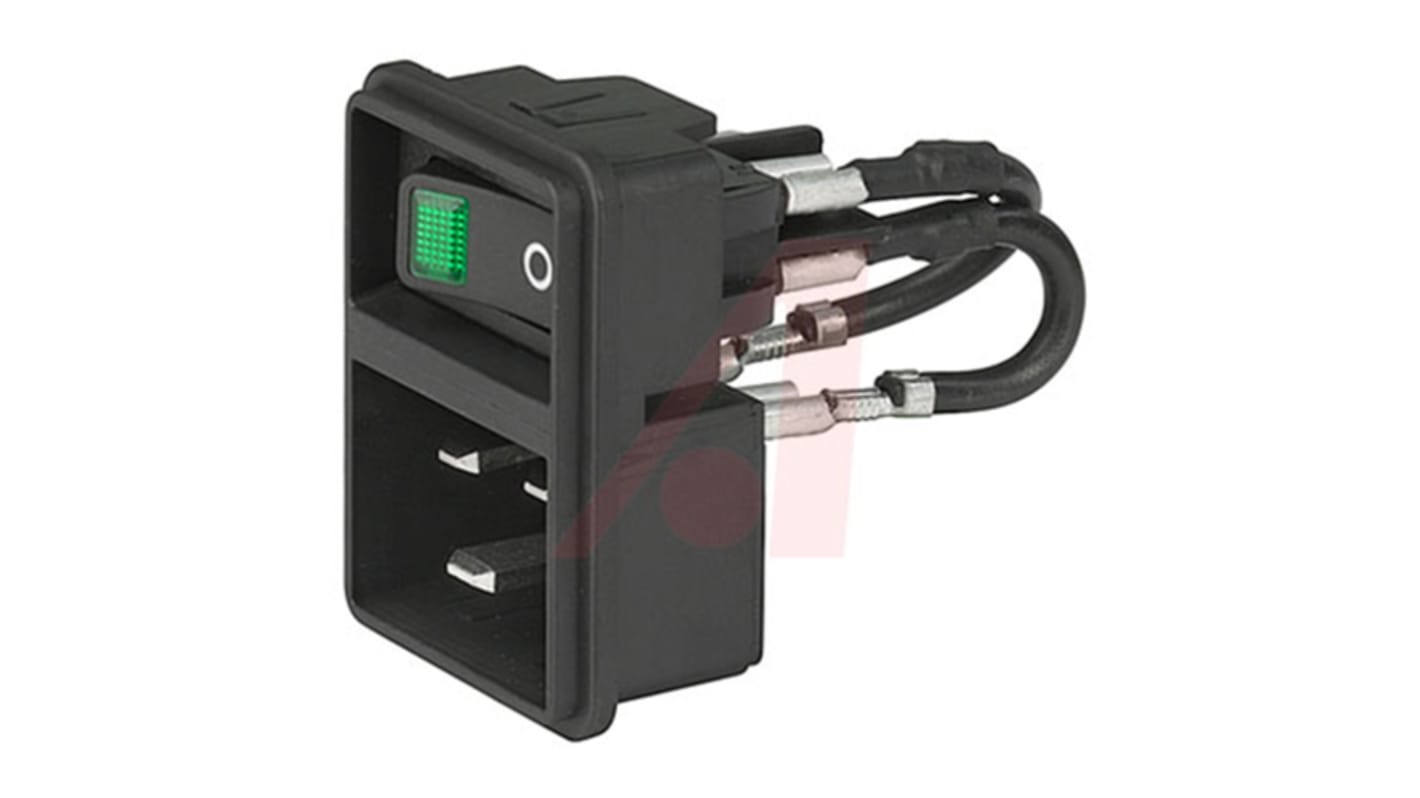

Schurter C20 Snap-In IEC Connector Male, 16A, 250 V

View all IEC Connectors
Discontinued
RS Stock No.:
870-3417
Mfr. Part No.:
EC11.0031.201
Brand:
Schurter
Find similar products by selecting one or more attributes.
Select all

Brand

Schurter

IEC Connector Type

C20

Mounting Type

Snap-In

Gender

Male

Current Rating

16 A, 20A

Body Orientation

Straight

Termination Method

Quick Connect

Switch Type

2 Pole

Number of Fuses

None

Voltage Rating

250 V

COO (Country of Origin):
CH

EC11 Series


Schurter EC11 series C20 power entry modules come in two versions. They are both panel mount but the user has a choice of either screw-on or snap-in versions. The screw-on can be mounted and secured from the front and rear side whilst the snap-in is mounted from the front side only.
The EC11 series offer two functions, appliance inlet protection class I and II and a line switch for either 1 or 2 poles.

6.3 x 0.8mm quick connect terminals
Ultra-compact design
All single elements are already wired
Line switch non-illuminated or illuminated
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950

Note

Fuse Holders must be ordered separately.
