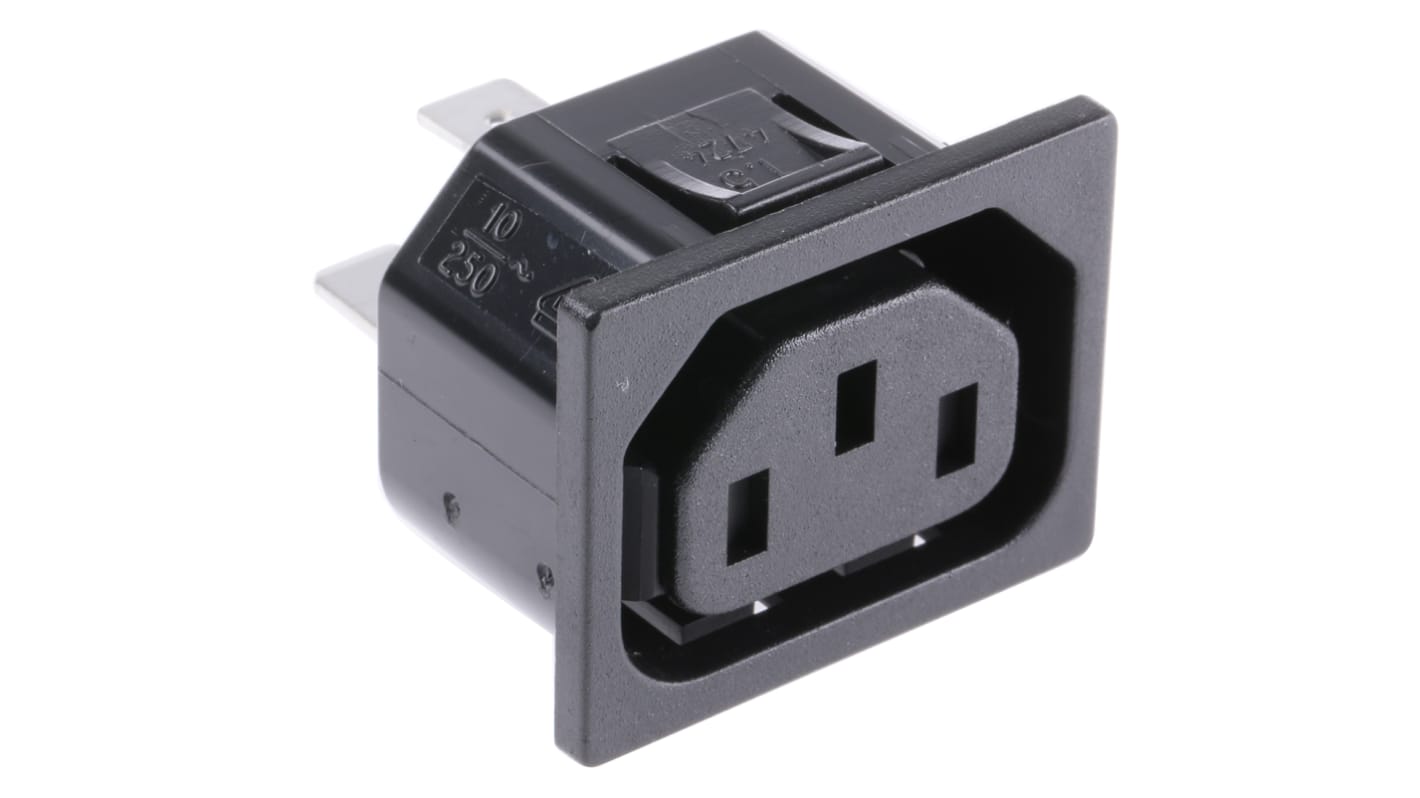

Schurter C13 Snap-In IEC Plug Socket, 15A, 250 V ac

  • RS Stock No. 539-2174
  • Mfr. Part No. 4724.0000
  • Brand Schurter
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

EEC 22 female panel clip-on sockets, 4723 Series

These female panel mount sockets are clipped on using harpoons (SNAP-IN mounting).
Equipped with safety gates.
Faston 6.3 x 0.8 mm terminal connection.
For panels with 1 or 1.5-mm maximum thickness.

Standards

  UL and VDE.

Approvals

CCC

Specifications
Attribute Value
IEC Connector Type C13
Mounting Type Snap-In
Gender Female
Current Rating 15A
Body Orientation Straight
Termination Method Solder
Voltage Rating 250 V ac
669 In stock for FREE next working day delivery
Price Each
£ 2.19
(exc. VAT)
£ 2.63
(inc. VAT)
Units
Per unit
1 - 9
£2.19
10 - 24
£2.11
25 - 49
£1.84
50 +
£1.68
