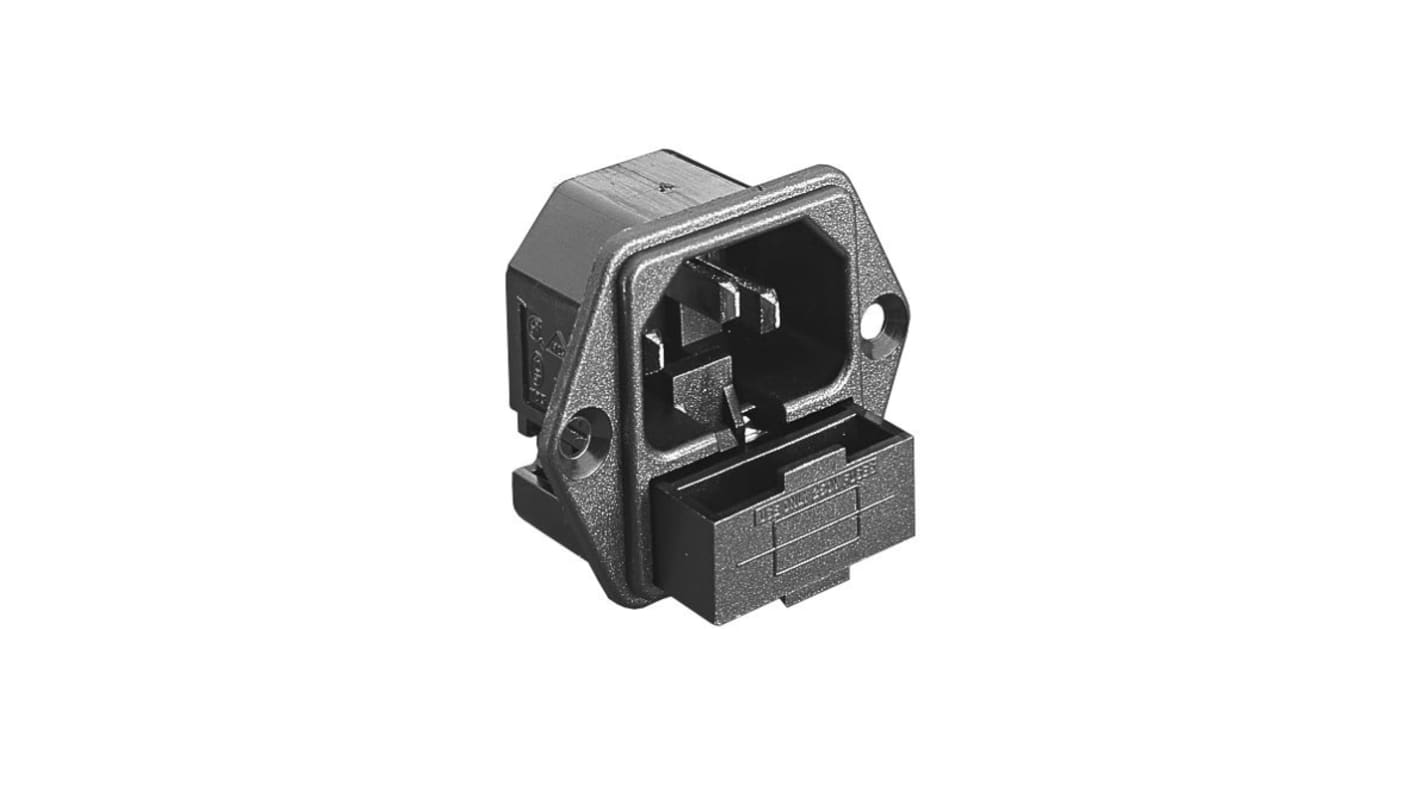

Bulgin C14 Straight Snap-in IEC Connector, 250V Male, Fuse Size 5 x 20 mm, 10A
- RS Stock No.:
- 204-8036
- Mfr. Part No.:
- PF0001/28
- Brand:
- Bulgin
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 204-8036
- Mfr. Part No.:
- PF0001/28
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| IEC Connector Type | C14 | |
| Product Type | IEC Connector | |
| Mount Type | Snap-in | |
| Current | 10A | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Number of Fuses | 1 | |
| Voltage | 250V | |
| Rewireable | Yes | |
| Termination Type | Quick Connect | |
| Fuse Size | 5 x 20 mm | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Shuttered | Yes | |
| Series | PF | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
IEC Connector Type C14 | ||
Product Type IEC Connector | ||
Mount Type Snap-in | ||
Current 10A | ||
Connector Gender Male | ||
Orientation Straight | ||
Number of Fuses 1 | ||
Voltage 250V | ||
Rewireable Yes | ||
Termination Type Quick Connect | ||
Fuse Size 5 x 20 mm | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Shuttered Yes | ||
Series PF | ||
- COO (Country of Origin):
- TN
The Bulgin flanged mount fused inlet has single fused of size 5 x 20mm. Its maximum dissipation per fuse is 2.5W.
maximum operating temp is –20°C to +70°C
Nylon mouldings
