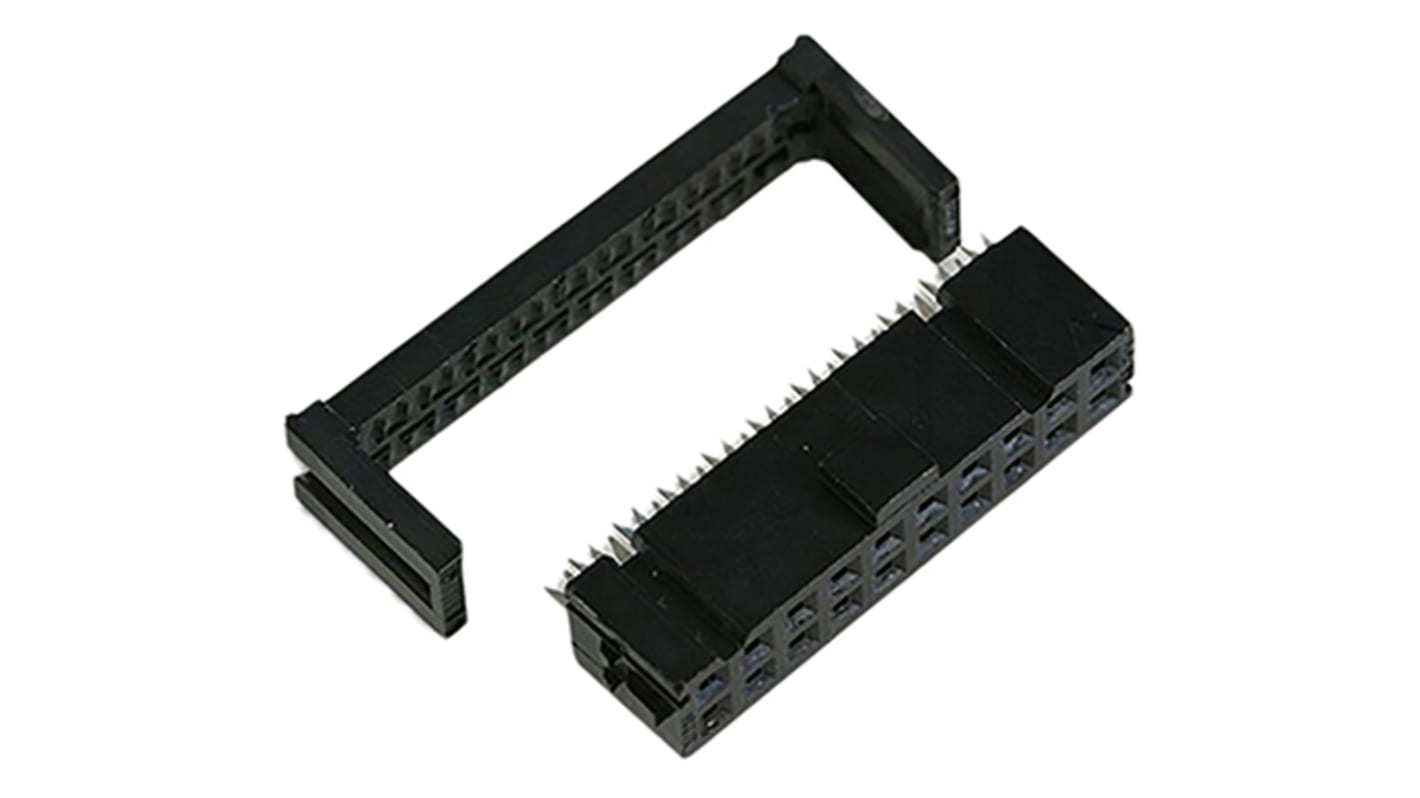

Molex 40-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 896-7645
- Mfr. Part No.:
- 90635-1402
- Brand:
- Molex
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.68
(exc. VAT)
£3.22
(inc. VAT)
- RS Stock No.:
- 896-7645
- Mfr. Part No.:
- 90635-1402
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 40 | |
| Number of Rows | 2 | |
| Gender | Female | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Vertical | |
| Termination Method | Crimp | |
| Current Rating | 1A | |
| Contact Plating | Gold | |
| Series | QF-50 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Voltage Rating | 250 V ac, 250 V dc | |
| Housing Material | PET | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 40 | ||
Number of Rows 2 | ||
Gender Female | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Vertical | ||
Termination Method Crimp | ||
Current Rating 1A | ||
Contact Plating Gold | ||
Series QF-50 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Voltage Rating 250 V ac, 250 V dc | ||
Housing Material PET | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- IE
Molex 1.27mm QF-50 Single Beam IDC Ribbon Cable Connectors
1.27mm QF-50 IDC single beam vertical MIL/DIN version ribbon cable/wire trap female connectors with an upper housing pre-loaded with gold plated phosphor bronze IDC contacts. These QF-50 single beam ribbon cable/wire trap connectors are fully shrouded with a 90 degree cable entry angle and black UL94V-0 polyester housings which are fully polarized to ensure accurate mating. The mating pitch of these QF-50 single beam IDC ribbon cable connectors is 2.54mm, the termination interface is 1.27mm and accepts ribbon cable with a 26-28 AWG wire size.
Part numbers 92321-1xxx are QF-50 to QF-50 cable assemblies terminated by two female QF-50 connectors with a 28 AWG, 1.27mm pitch and a 7 strand ribbon cable. These QF-50 to QF-50 cable assemblies are available with a variety of connector sizes and ribbon cable lengths.
Part numbers 92321-1xxx are QF-50 to QF-50 cable assemblies terminated by two female QF-50 connectors with a 28 AWG, 1.27mm pitch and a 7 strand ribbon cable. These QF-50 to QF-50 cable assemblies are available with a variety of connector sizes and ribbon cable lengths.
1.27mm Molex QF-50 Single Beam Ribbon Cable Connectors
