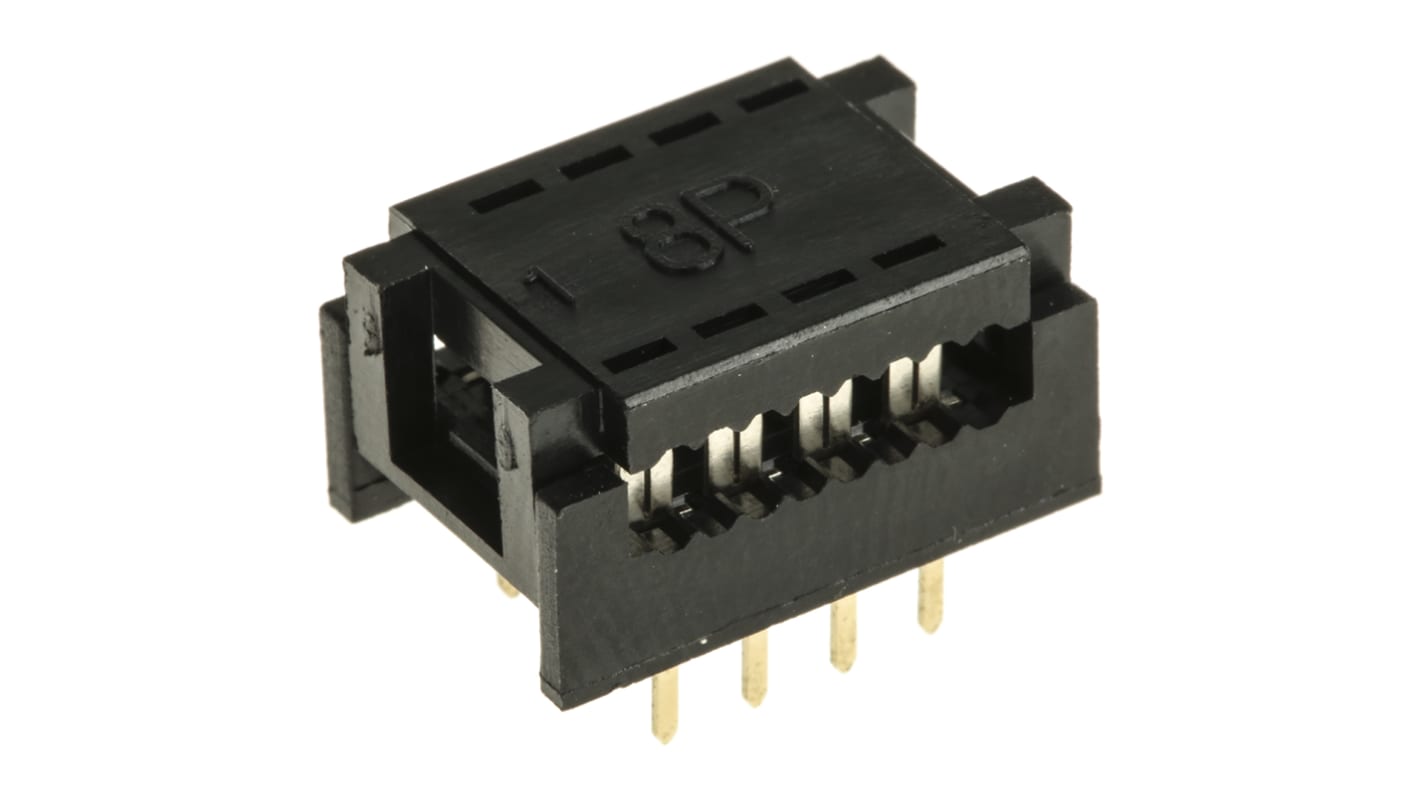

RS PRO 8-Way IDC Connector Plug for Cable Mount, 2-Row
- RS Stock No.:
- 642-5102
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 642-5102
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Gender | Male | |
| Pitch | 2.54mm | |
| Mounting Type | Cable Mount | |
| Body Orientation | Straight | |
| Termination Method | IDC | |
| Current Rating | 1A | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Housing Material | Glass Fibre Reinforced PBT | |
| Contact Material | Phosphor Bronze | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Gender Male | ||
Pitch 2.54mm | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Termination Method IDC | ||
Current Rating 1A | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Housing Material Glass Fibre Reinforced PBT | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- CN
Low Profile DIL Plugs
This RS Pro low profile DIL plugs quickly and easily terminates flat cables then mounts directly to the PCB. These connectors are ideal for interconnecting PCBs in a permanent flat cable. The low profile design allows more boards being stacked.
Features and Benefits
Heavy-duty gold plated contacts
Fast easy mass termination
Eliminates need for 2 piece header/socket set
Low profile design
Standards
IDC
