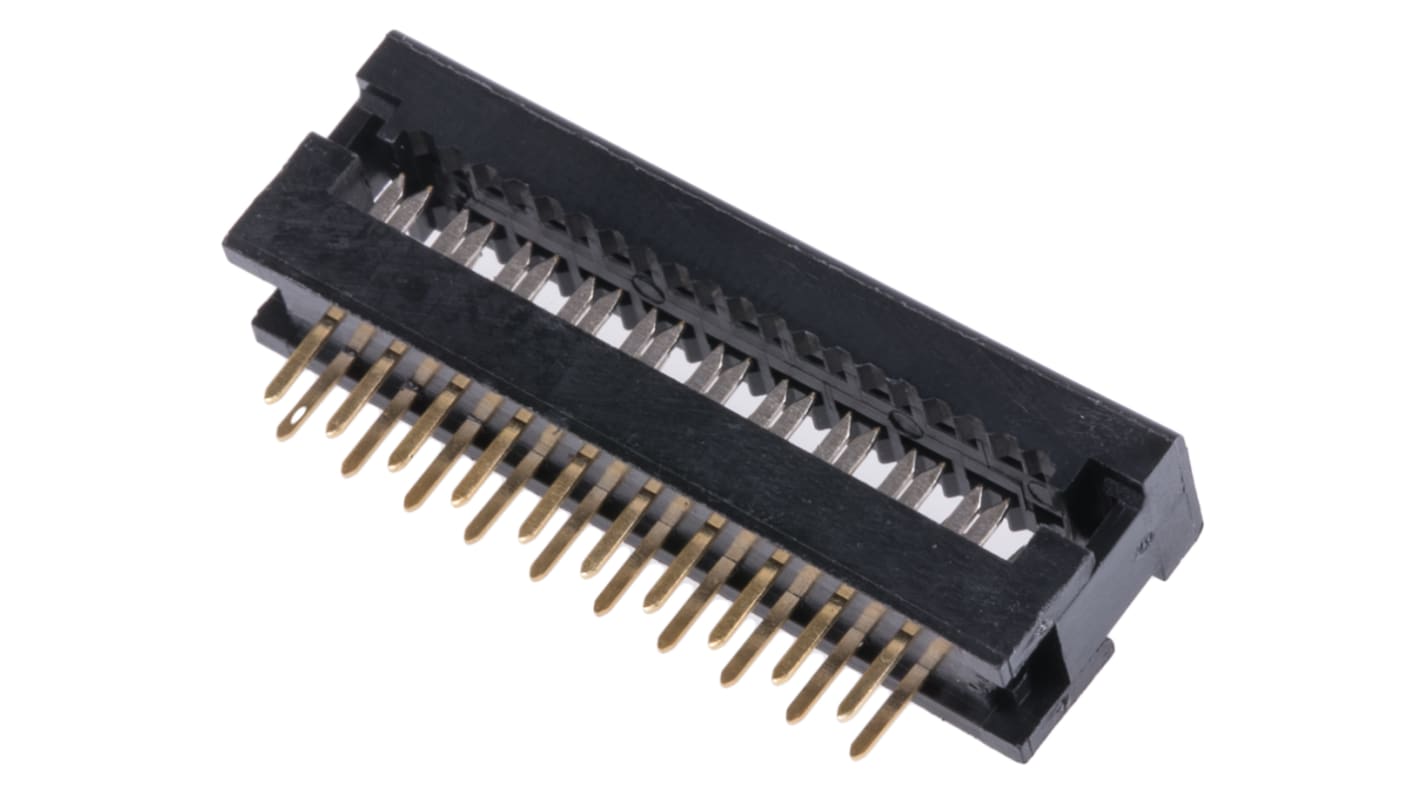

RS PRO 20-Way IDC Connector Plug for Cable Mount, 2-Row

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Two-Way Transition Connectors

RS Pro IDC connector plug consists of 2-row transition connectors on a 2.54 mm grid pitch. This cable mount plug features 16 contacts and right-angle orientation. It has 0.8 μm brass contact with gold plating.

Features and Benefits

0.8 μm gold plated pins Right angle orientation
Brass contacts

Standards

IDC

Specifications
Attribute Value
Number of Contacts 20
Number of Rows 2
Gender Male
Pitch 2.54mm
Mounting Type Cable Mount
Body Orientation Right Angle
Termination Method IDC
Current Rating 3A
Contact Plating Gold
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Housing Material PBT
Contact Material Brass
303 In stock - FREE next working day delivery available
Price Each
£ 2.06
(exc. VAT)
£ 2.47
(inc. VAT)
Units
Per unit
1 - 24
£2.06
25 - 74
£1.86
75 - 199
£1.66
200 - 399
£1.46
400 +
£1.38
