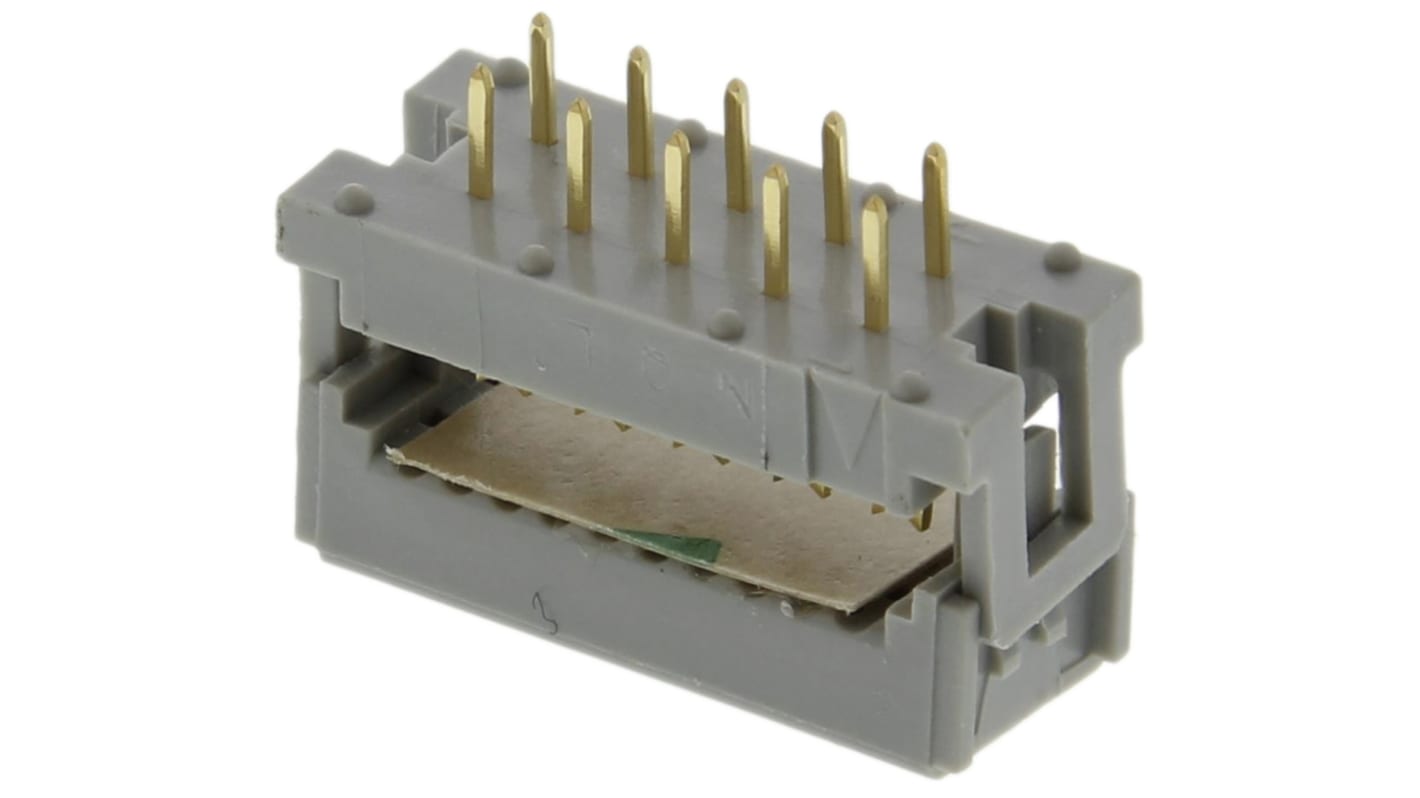

3M 10-Way IDC Connector Plug for Cable Mount, 2-Row
- RS Stock No.:
- 502-8952
- Mfr. Part No.:
- 7810-0000PR
- Brand:
- 3M
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 502-8952
- Mfr. Part No.:
- 7810-0000PR
- Brand:
- 3M
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
3M 78 Series 2.54 x 2.54mm PCB IDC Transition Ribbon Cable Connector
78 Series 2.54 x 2.54mm PCB mount two row IDC ribbon cable transition connectors that allow ribbon cable connection to a PCB without the need for two connectors thus reducing costs. These 78 Series PCB IDC transition connectors have a 7.3mm terminated height for low profile off the board applications, solder bumps built into the housings that facilitate board cleaning and fit a standard 2.54 x 2.54mm header layout.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Number of Rows | 2 |
| Gender | Male |
| Pitch | 2.54mm |
| Mounting Type | Cable Mount |
| Body Orientation | Right Angle |
| Termination Method | IDC |
| Current Rating | 1A |
| Contact Plating | Gold over Nickel |
| Series | 78XX |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Contact Material | Copper |
| Housing Material | PET |
