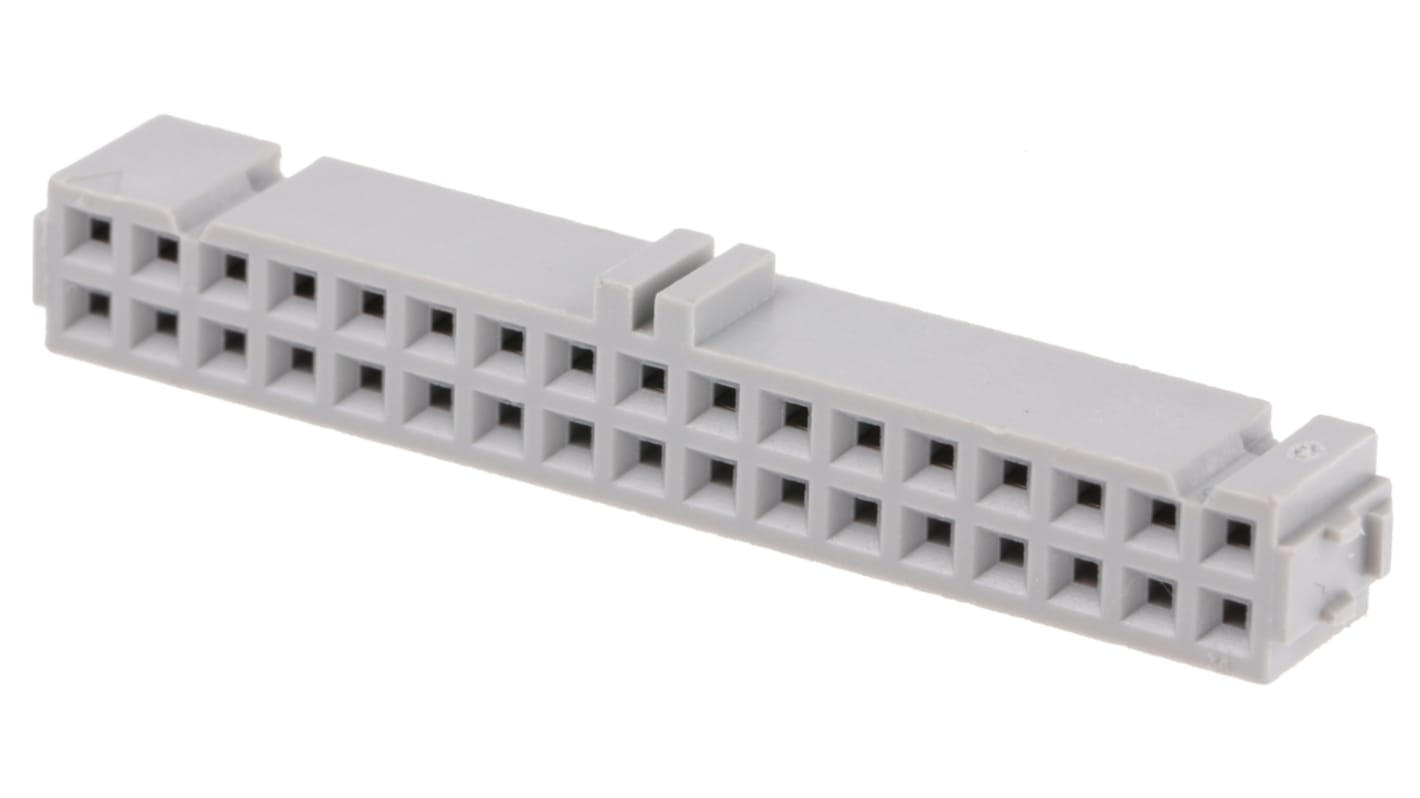

3M 34-Way IDC Connector Socket for Cable Mount, 2-Row
- RS Stock No.:
- 192-7489
- Mfr. Part No.:
- 89134-0101
- Brand:
- 3M
Discontinued product
- RS Stock No.:
- 192-7489
- Mfr. Part No.:
- 89134-0101
- Brand:
- 3M
- COO (Country of Origin):
- US
3M 891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets
From 3M, the 891 Series ribbon cable connectors feature military polarization and centre bumps. They terminate faster than two-piece sockets and their sword packaging makes easy loading of manual and semi-automatic assembly equipment.
These 891 series IDC ribbon cable socket connectors have a double-recessed cover which allows cable to be terminated from either side and are supplied preassembled.
Strain reliefs (192-7530 typically) are available separately
These 891 series IDC ribbon cable socket connectors have a double-recessed cover which allows cable to be terminated from either side and are supplied preassembled.
Strain reliefs (192-7530 typically) are available separately
Features and Benefits
• Preassembled, terminates faster than two-piece sockets
• Sword packaging makes easy loading of manual and semi-automatic assembly equipment
• Bumps prevent premature latch locking during shipment
• Optional double-sided adhesive pull tab for easy unplugging
• Double-recessed cover for cable terminating from either side eliminates need for single-recessed cover connectors
• Sword packaging makes easy loading of manual and semi-automatic assembly equipment
• Bumps prevent premature latch locking during shipment
• Optional double-sided adhesive pull tab for easy unplugging
• Double-recessed cover for cable terminating from either side eliminates need for single-recessed cover connectors
Applications
Ribbon cables are known for their space saving and high data transfer capabilities. They are often used to connect internal computer peripherals, and less frequently for external connections. They are known for being well suited to mass termination with IDC (insulation displacement connectors.) This quick and practical termination solution means that ribbon cabling is a common standard in electronics and computing.
Why choose 3M?
3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.
3M IDC Connector, 1.25A Current Rating, 2.54mm Pitch - 891 Series - 89134-0101
Looking for a quick way to wire your computer's internal connections? This female IDC connector from 3M mounts onto the end of your ribbon cable, eliminating the need to strip your wires and making assembly quick. As it supports up to 34 conductors, it completes numerous circuits at once to give you efficient system coverage. The housing's nickel-plated bronze contacts come with a conductive gold coating to achieve reliable electrical connections.
Features & Benefits
Durable PBT-GF body for effective impact resistance
Compact pitch of 2.54mm for easy mounting in crowded systems
Built-in polarising key to ensure correct connection orientation
Wide operating temperature range between -55°C and +105°C for use in demanding conditions
Compact pitch of 2.54mm for easy mounting in crowded systems
Built-in polarising key to ensure correct connection orientation
Wide operating temperature range between -55°C and +105°C for use in demanding conditions
Applications
PC building
Server management
Telecommunications
Server management
Telecommunications
What types of wires can I use this IDC connector with?
You can use this connector with stranded conductors between 28 and 26 AWG, for easy compatibility.
Attribute | Value |
---|---|
Number of Contacts | 34 |
Number of Rows | 2 |
Gender | Female |
Pitch | 2.54mm |
Mounting Type | Cable Mount |
Body Orientation | Right Angle |
Termination Method | IDC |
Current Rating | 1.25A |
Contact Plating | Gold over Nickel |
Series | 891 |
Minimum Operating Temperature | -55.0°C |
Maximum Operating Temperature | 105.0°C |
Voltage Rating | 1 kV |
Contact Material | Brass |
Housing Material | PBT |
