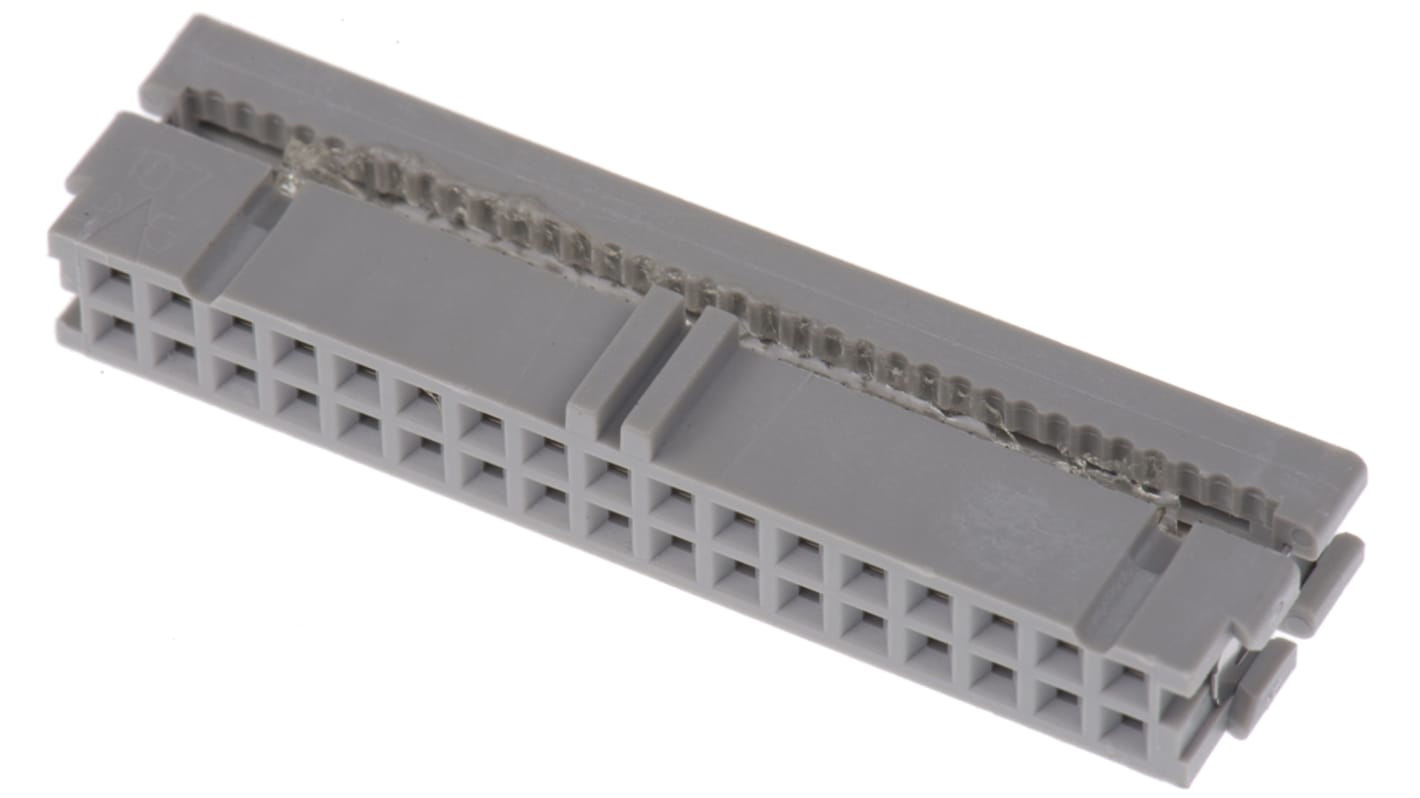

3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch. These IDC cable sockets accept 26 AWG and 28 AWG solid and stranded 1.27 mm pitch flat ribbon cable or discrete wire. The use of IDC contacts eliminates the need for prior cable preparation and stripping and provides a quick and simple interconnection system for mass termination. The contacts are made from beryllium copper which has a high resistance to corrosion, good wear resistance and better electrical conductivity than brass or bronze. The housings of these 3000 series IDC sockets feature dual slot military polarization to aid accurate mating with the header connector. The design of these 3000 series IDC sockets sets the standard for MIL spec and IEC standardization. These 3000 series ribbon cable sockets feature positive locking metal 'J' clips that ensure the cover of the connector is securely retained. The covers have a transfer adhesive on them that holds the cover onto the ribbon cable for precise alignment between the connector and the cables. This feature also results helps with the production of high yield terminations. A pull tab is available separately which is attached to the socket using a strip of adhesive. The pull tab is used to reduce stress on the cable terminations when the socket connector is unplugged from the mated header. A keying plug is also available which is plugged into a socket contact so that the male pin cannot enter it.

IDC contacts for quick and easy mass termination
No cable preparation required
Robust and reliable beryllium copper contacts
Positive locking metal ’J’ clips for secure cover retention
Transfer adhesive on covers for precise cable to connector alignment

These 3000 series wire mount IDC sockets are used in wire to board or internal wiring applications. Applications include factory and automation, test and instrumentation, medical, communications and networking and computers and peripherals

Make a reliable connection between your control board and a PCB with this socket connector from 3M. It lets you hook up multiple wires quickly, thanks to its insulation displacement contacts that remove the need for you to strip conductors of their sheathing. You'll know when you're using the right header connection because its housing is designed to assist you with accurate mating. Beryllium copper contacts ensure optimum electrical flow and resist corrosion for longevity.

• Transfer adhesive to help with precise cable-to-connector alignment
• J-clips ensure the connector's cover is securely held in place to prevent dust from settling on contacts
• Wide operating temperature range of -55°C to +105°C for compatibility with demanding settings

• Communications systems
• Industrial automation
• Medical equipment

Yes, this socket is insulated so it's safe to handle and you're protected from electric shocks.
