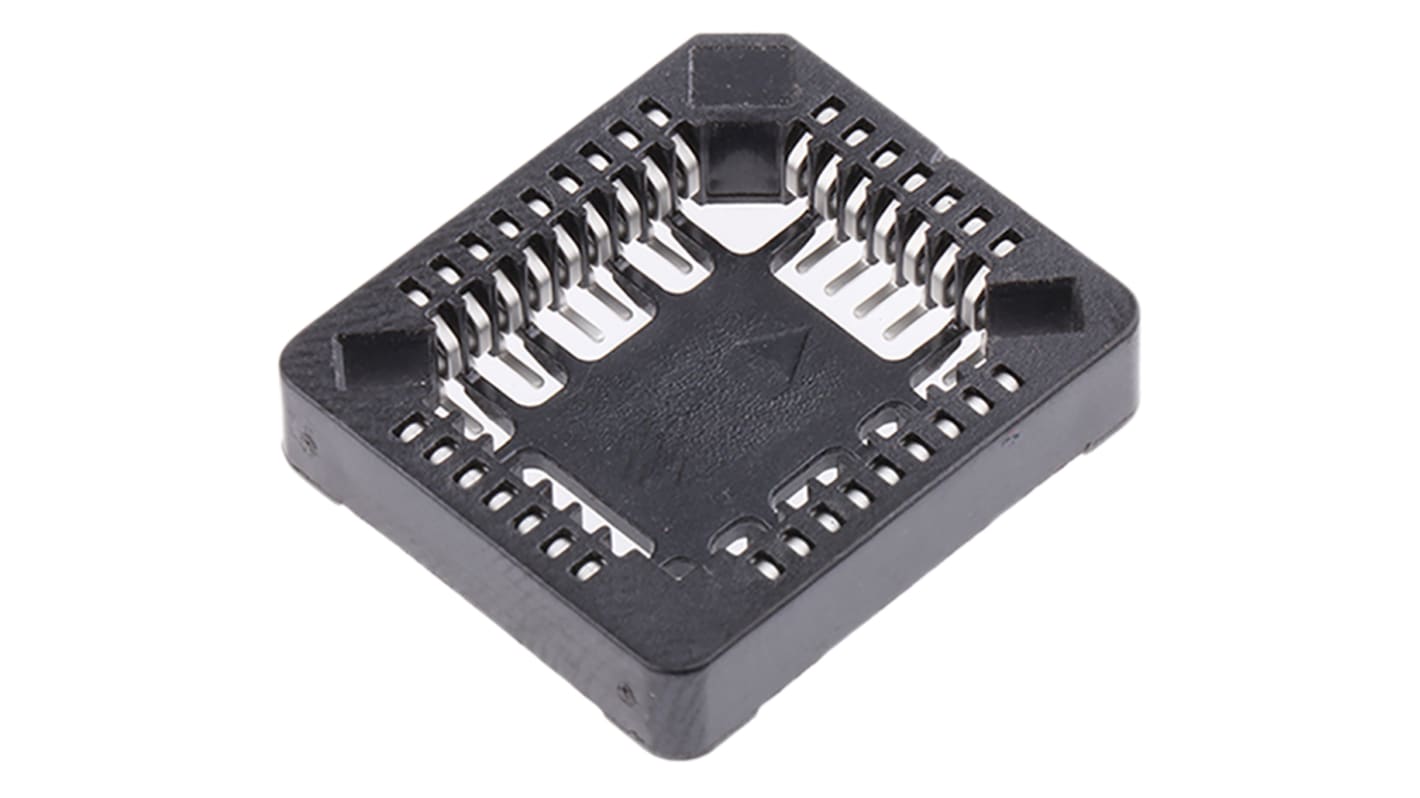

3M 1.27mm Pitch 32 Way PLCC Socket

  • RS Stock No. 615-5437
  • Mfr. Part No. 8432-21B1-RK-TP
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

3M 8400 Series SMT PLCC Sockets

8400 Series SMT PLCC sockets that accept PLCCs conforming to JEDEC outline MO-047 for square and MO-052 for rectangular. These 8400 series SMT PLCC sockets have a low profile design, an open top for unrestricted airflow and feature moulded slots to facilitate device extraction. The high temperature insulator of these 8400 PLCC sockets makes them compatible with IR reflow and wave soldering and they are also compatible with automated loading equipment.
Part numbers 84XX-21A1-RK-XX have a location post (tube packaging only)

Specifications
Attribute Value
IC Socket Type PLCC Socket
Gender Female
Number of Contacts 32
Pitch 1.27mm
Body Orientation Straight
Contact Material Copper Alloy
Contact Plating Tin over Nickel
Termination Method Solder
Housing Material PPS
Discontinued product
