3M 2.54mm Pitch Through Hole PGA ZIF Test Socket
- RS Stock No.:
- 249-5949
- Mfr. Part No.:
- 200-6315-9UN-1900
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 249-5949
- Mfr. Part No.:
- 200-6315-9UN-1900
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Package Type | PGA | |
| Pitch | 2.54mm | |
| Socket Mounting Type | Through Hole | |
Select all | ||
|---|---|---|
Brand 3M | ||
Package Type PGA | ||
Pitch 2.54mm | ||
Socket Mounting Type Through Hole | ||
- COO (Country of Origin):
- JP

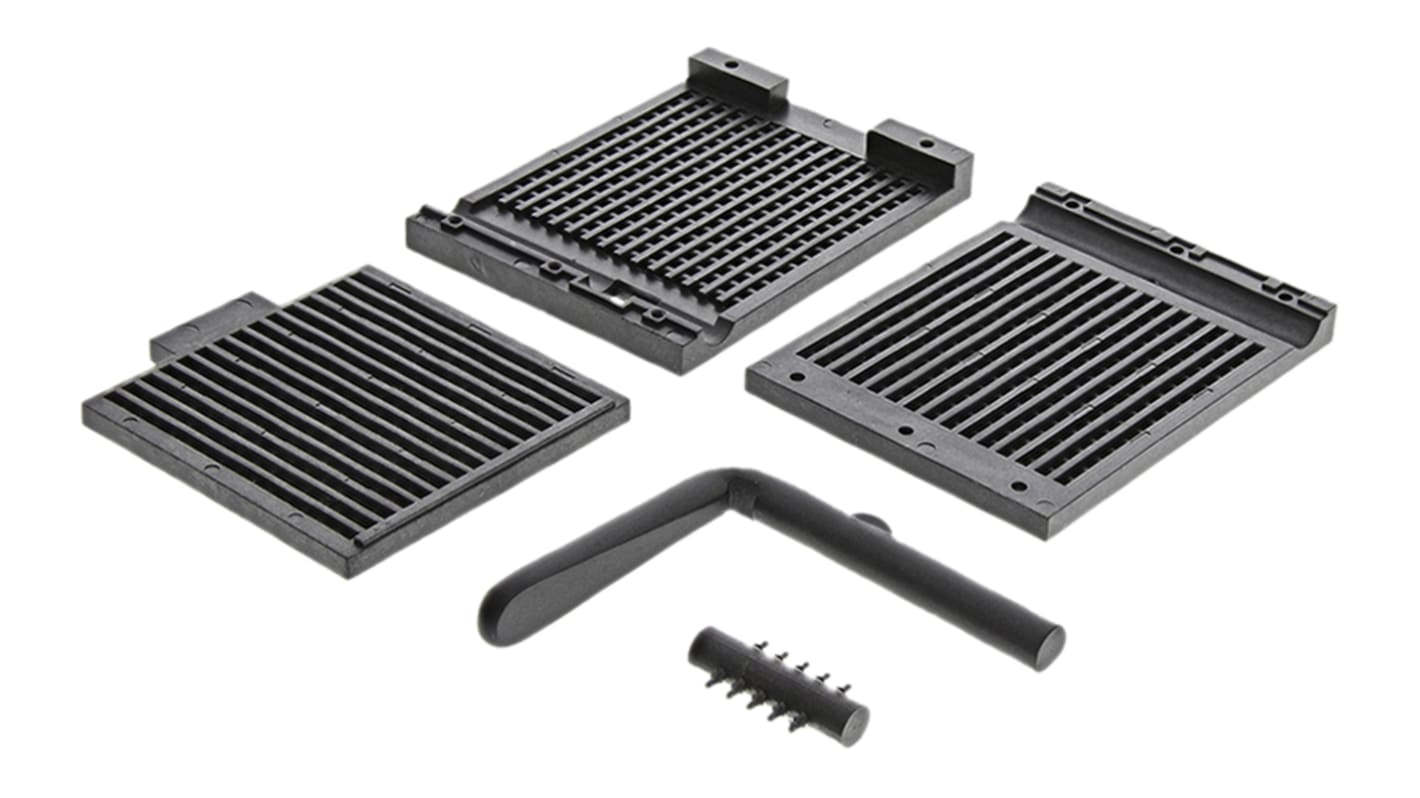

3M PGA, ZIF Test Socket Kits
Available in 3 different PGA grid sizes, these Zero Insertion Force socket kits are ideal when only a few test sockets are needed. The open pattern top plate allows the user to load only those contacts needed for the specific device pin pattern. Each socket comes with a PTFE coated stainless steel lever and optical locating holes for robotics loading and unloading.
Body material Polyethersulphone (PES)
Contact material Beryllium Copper
Contact plating Gold over Nickel
Temperature Range -55°C to +105°C
Flammability UL 94 V-0
Insulation Resistance > 1 x 1000MΩ (at 500Vdc)
Current rating =1A
Durability 25000 Actuations (At Room Temperature 24°C)
Contact material Beryllium Copper
Contact plating Gold over Nickel
Temperature Range -55°C to +105°C
Flammability UL 94 V-0
Insulation Resistance > 1 x 1000MΩ (at 500Vdc)
Current rating =1A
Durability 25000 Actuations (At Room Temperature 24°C)
Note
Contacts must be ordered separately. Stock No. 249-5961 is a bag of 100 gold plated contacts.
