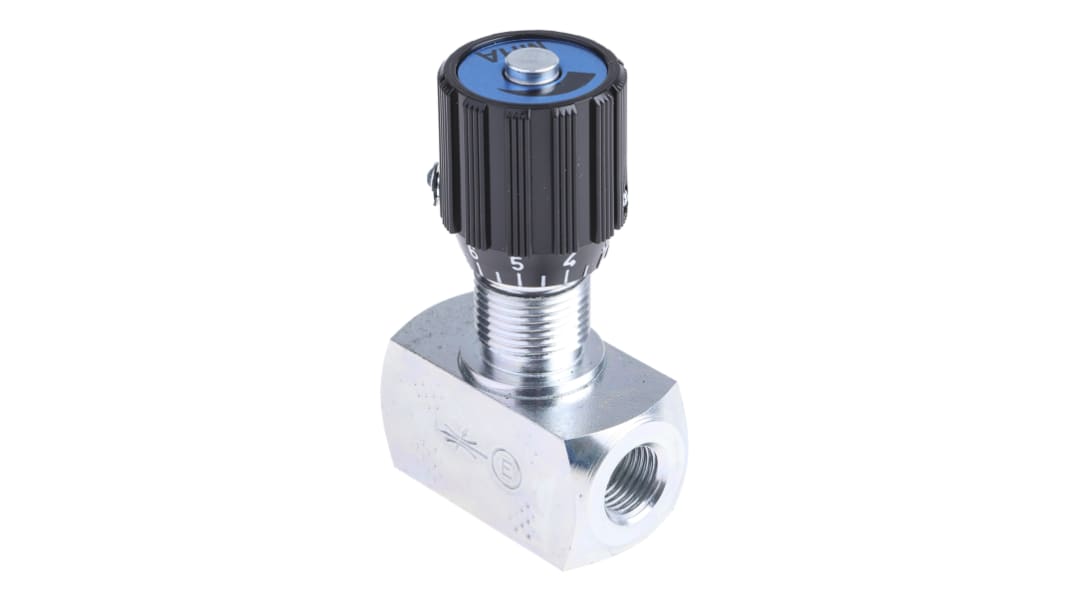

RS PRO Inline Mounting Hydraulic Flow Control Valve, G 1/4, 350bar, 50L/min
- RS Stock No.:
- 243-5521
- Brand:
- RS PRO
Subtotal (1 unit)*
£31.68
(exc. VAT)
£38.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 97 unit(s) ready to ship
- Plus 35 unit(s) ready to ship from another location
- Plus 90 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.68 |
*price indicative
- RS Stock No.:
- 243-5521
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connection Port Thread | G 1/4 | |
| Maximum Flow Rate | 50L/min | |
| Thread Size | 1/4in | |
| Maximum Operating Pressure | 350bar | |
| Manufacturer Series | NDV | |
| Body Material | Steel | |
| Seal Material | Nitrile Rubber | |
| Thread Standard | G | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -10°C | |
| Mounting Type | Inline | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Connection Port Thread G 1/4 | ||
Maximum Flow Rate 50L/min | ||
Thread Size 1/4in | ||
Maximum Operating Pressure 350bar | ||
Manufacturer Series NDV | ||
Body Material Steel | ||
Seal Material Nitrile Rubber | ||
Thread Standard G | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -10°C | ||
Mounting Type Inline | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
RS PRO Line Mounting Hydraulic Flow Control Valve, G 1/4, 350 bar
Regulate flow through a system with this RS PRO line mounting hydraulic flow control valve. Ideal for high-pressure, high-volume operations, it's made from tough materials and has a double-acting effect to permit flow control in both directions.
An ergonomic-locking screw with an easy-to-read 0 to 9 scale makes stabilising flow straightforward. Turning it clockwise or counter-clockwise assures you a maximum flow rate of 50 L per minute. The screw is attached to a sturdy steel body with nitrile rubber seals. These are resistant to oil and fuel and have high tensile strength. Thanks to its heavy-duty construction, this valve is capable of withstanding pressures of up to 350 bars, which is equivalent to that found on the seafloor.
This product has been thoroughly tested to guarantee its consistency and durability. You can use it in various industrial applications, including food processing, materials handling and factory automation.
An ergonomic-locking screw with an easy-to-read 0 to 9 scale makes stabilising flow straightforward. Turning it clockwise or counter-clockwise assures you a maximum flow rate of 50 L per minute. The screw is attached to a sturdy steel body with nitrile rubber seals. These are resistant to oil and fuel and have high tensile strength. Thanks to its heavy-duty construction, this valve is capable of withstanding pressures of up to 350 bars, which is equivalent to that found on the seafloor.
This product has been thoroughly tested to guarantee its consistency and durability. You can use it in various industrial applications, including food processing, materials handling and factory automation.
Features and Benefits
• Line mounting hydraulic flow control valve
• Body made from steel
• Nitrile rubber seals
• Maximum flow rate of 50 L per minute
• Maximum operating pressure of 350 bars
• Operating temperature range of -10°C to +100°C
• G 1/4-inch thread
• NDV series
• Body made from steel
• Nitrile rubber seals
• Maximum flow rate of 50 L per minute
• Maximum operating pressure of 350 bars
• Operating temperature range of -10°C to +100°C
• G 1/4-inch thread
• NDV series
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
