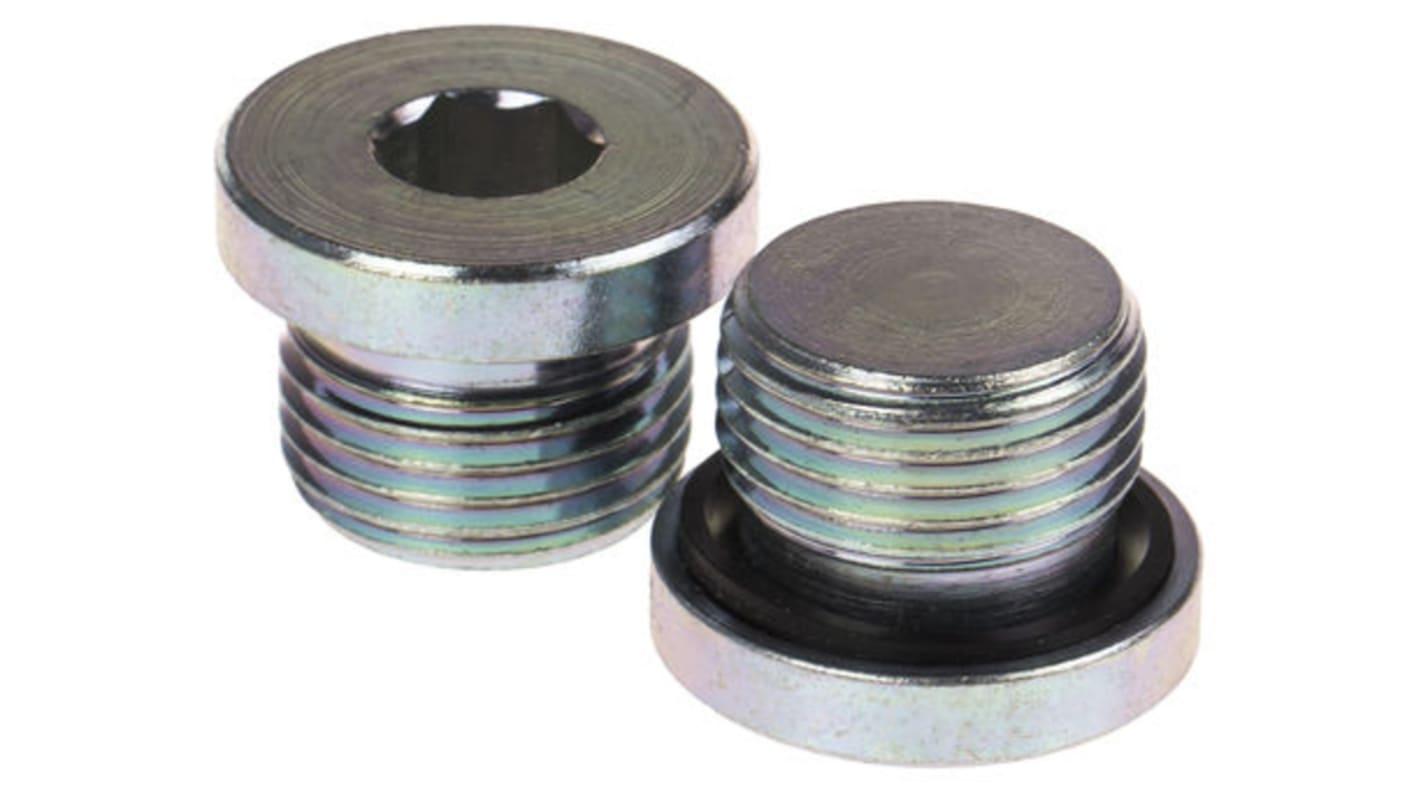

Parker, Steel Hydraulic Blanking Plug, Max Operating Pressure 400 bar, Thread Size M18 x 1.5
- RS Stock No.:
- 871-2278
- Mfr. Part No.:
- VSTI18x1.5EDCF
- Brand:
- Parker
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 871-2278
- Mfr. Part No.:
- VSTI18x1.5EDCF
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Hydraulic Fitting Type | Hydraulic Blanking Plug | |
| Material | Steel | |
| Finish | Zinc Plated | |
| Connector A - Thread Standard | Metric | |
| Maximum Operating Pressure | 400bar | |
Select all | ||
|---|---|---|
Brand Parker | ||
Hydraulic Fitting Type Hydraulic Blanking Plug | ||
Material Steel | ||
Finish Zinc Plated | ||
Connector A - Thread Standard Metric | ||
Maximum Operating Pressure 400bar | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- PL
Blanking Plug
Blanking plugs for ports, male metric thread. Manufactured from steel to BS5200 with a zinc chromated finish to give a high corrosion resistance (500 hours in salt spray test). All adaptors have a working temperature range -40 to +120°C (-3 to +120°C for plugs).
Visible bite of progressive ring helps prevent blow-off
Excellent sealing capacity when used in various applications including vacuum and hydraulic systems
Stress evenly distributed throughout out minimising concentration at the bite point
Compact overall dimensions make EO fittings ideal or confined spaces
Strong Construction
Hygienic Design
Excellent Resistance to Corrosion
Excellent sealing capacity when used in various applications including vacuum and hydraulic systems
Stress evenly distributed throughout out minimising concentration at the bite point
Compact overall dimensions make EO fittings ideal or confined spaces
Strong Construction
Hygienic Design
Excellent Resistance to Corrosion
Features and Benefits
Warning
Hydraulic systems can work at high pressures, and fittings and adaptors can be subjected to extreme loadings such as vibration and uncontrolled pressure peaks. When choosing fittings or adaptors careful attention should be given to the technical specifications.
