Parker Nut Female 37° JIC Flare to UNF 9/16-18, 6BMTXS
- RS Stock No.:
- 274-5902
- Mfr. Part No.:
- 6BMTXS
- Brand:
- Parker
Subtotal (1 box of 10 units)*
£7.88
(exc. VAT)
£9.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £7.88 | £0.788 |
*price indicative
- RS Stock No.:
- 274-5902
- Mfr. Part No.:
- 6BMTXS
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Parker | |
Connector A | Female 37° JIC Flare | |
Connector A - Thread Size | 3/8in | |
Hydraulic Fitting Type | Nut | |
Connector B | UNF 9/16-18 | |
Material | Steel | |
Connector A - Gender | Female | |
Maximum Operating Pressure | 517bar | |
Select all | ||
---|---|---|
Brand Parker | ||
Connector A Female 37° JIC Flare | ||
Connector A - Thread Size 3/8in | ||
Hydraulic Fitting Type Nut | ||
Connector B UNF 9/16-18 | ||
Material Steel | ||
Connector A - Gender Female | ||
Maximum Operating Pressure 517bar | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
End Nut
Suitable for use with complete range of Triple-Lok flared tube fittings and hydraulic tube
The Parker Triple Lok nut is a tube fitting part with high temperature and high pressure capabilities, which makes it a reliable solution for hydraulic applications.
Superior plating
Robust design
Robust design

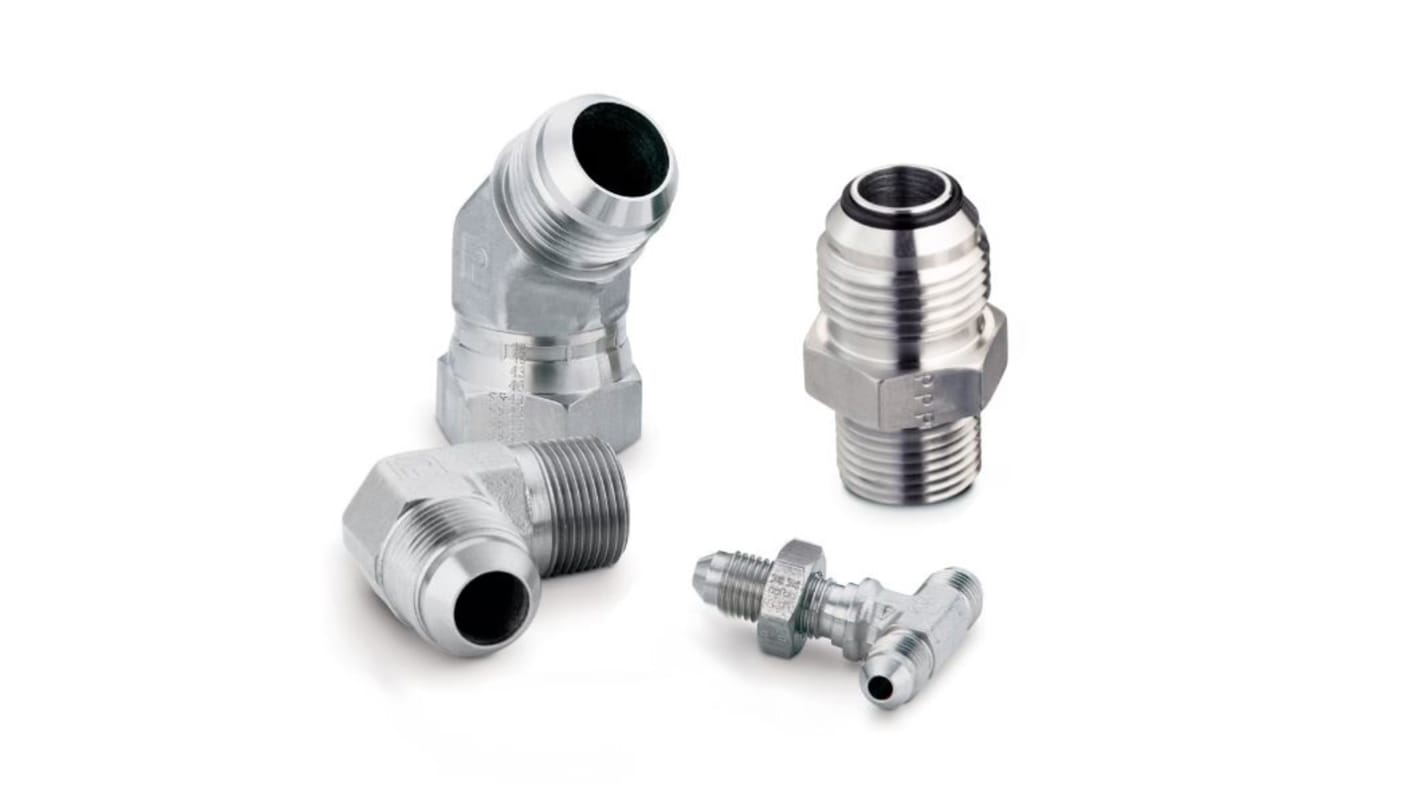

Flared Tube Fittings
Triple-Lok 37° flared fittings are for use with metric tube. Their simplicity, compact design and ease of assembly have led to their widespread choice for applications that use fluid power in motion control. The steel fittings are ideally suited for low and medium pressure applications up to 350 bar nominal pressure and have an operating temperature range of -40°C to +120°C. Their design is simple. The flaring tool vice and flaring pins (available separately) create a seal and hold fluid under pressure in the system. The tube end is flared to 37° and clamped between the fitting nose and the sleeve when the nut is tightened. This provides an effective single seal point between fitting nose and tube flare. The Parker Triple-Lok fitting consists of three components: fitting body; tube nut; sleeve. For steel fittings it is recommended that seamless drawn steel tubes to DIN 2391/C are used.
