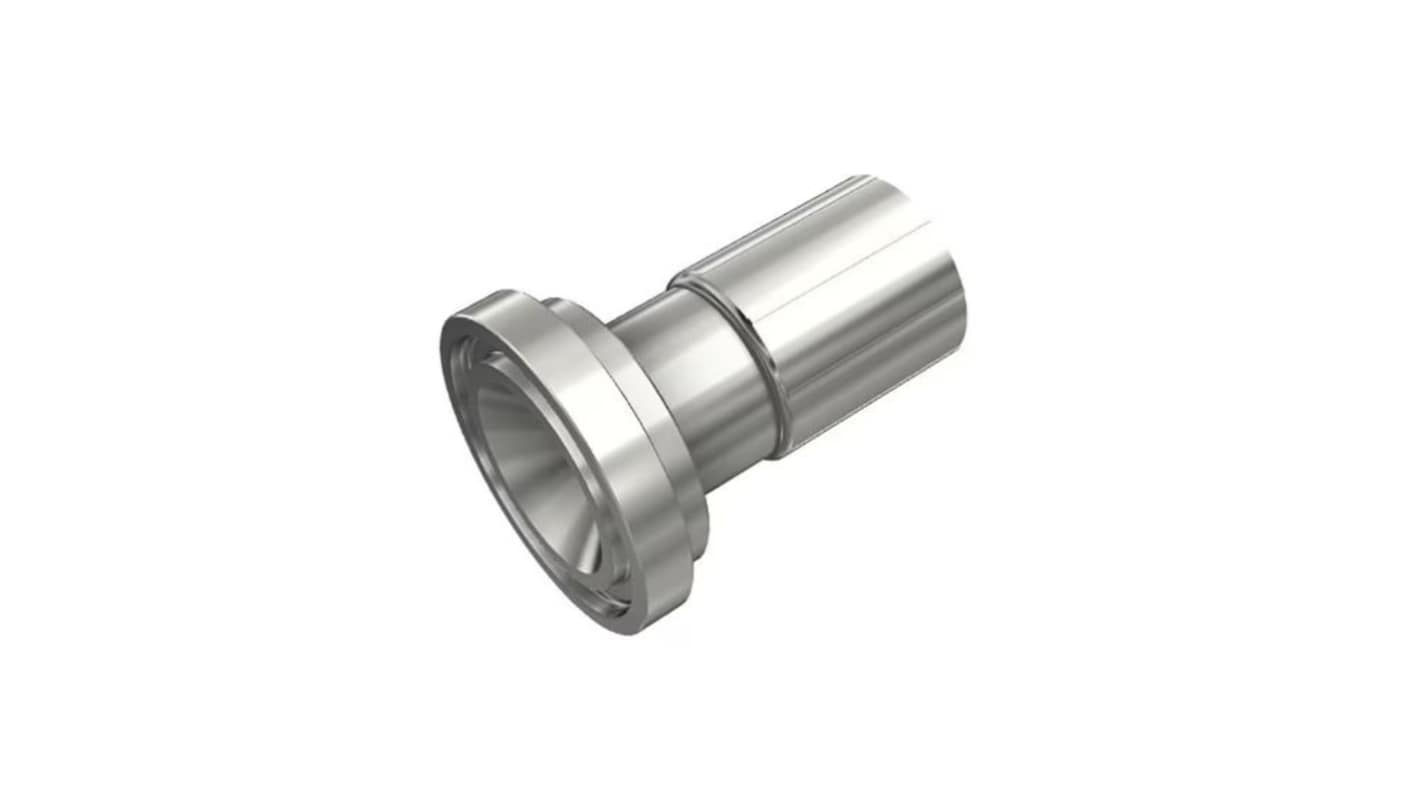

Parker Crimped Hose Fitting 1 in Hose to 1 in Flange
- RS Stock No.:
- 174-642
- Mfr. Part No.:
- 11548-16-16
- Brand:
- Parker
Subtotal (1 box of 4 units)*
£80.12
(exc. VAT)
£96.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £80.12 | £20.03 |
*price indicative
- RS Stock No.:
- 174-642
- Mfr. Part No.:
- 11548-16-16
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Parker | |
Connector A | 1 in Hose | |
Hydraulic Fitting Type | Crimped Hose Fitting | |
Connector B | 1 in Flange | |
Material | Steel | |
Finish | Chrome 6 Free Plated | |
Maximum Operating Pressure | 35 MPa | |
Select all | ||
---|---|---|
Brand Parker | ||
Connector A 1 in Hose | ||
Hydraulic Fitting Type Crimped Hose Fitting | ||
Connector B 1 in Flange | ||
Material Steel | ||
Finish Chrome 6 Free Plated | ||
Maximum Operating Pressure 35 MPa | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Parker No-Skive medium pressure fittings 48 series are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers. Assembly of No-Skive hose and fittings does not require removal of the outer cover of the hose. This eliminates premature hydraulic hose failure caused by skiving too long or short.
Matched hose and fitting system guarantees an approved and safe combination
Longest service life of the final product to the end users
Offers the easiest and most efficient and safe production process
ISO 12151-3-S-L standard
Meets the requirements of SAE J1273 and ISO 17165-2
Longest service life of the final product to the end users
Offers the easiest and most efficient and safe production process
ISO 12151-3-S-L standard
Meets the requirements of SAE J1273 and ISO 17165-2
