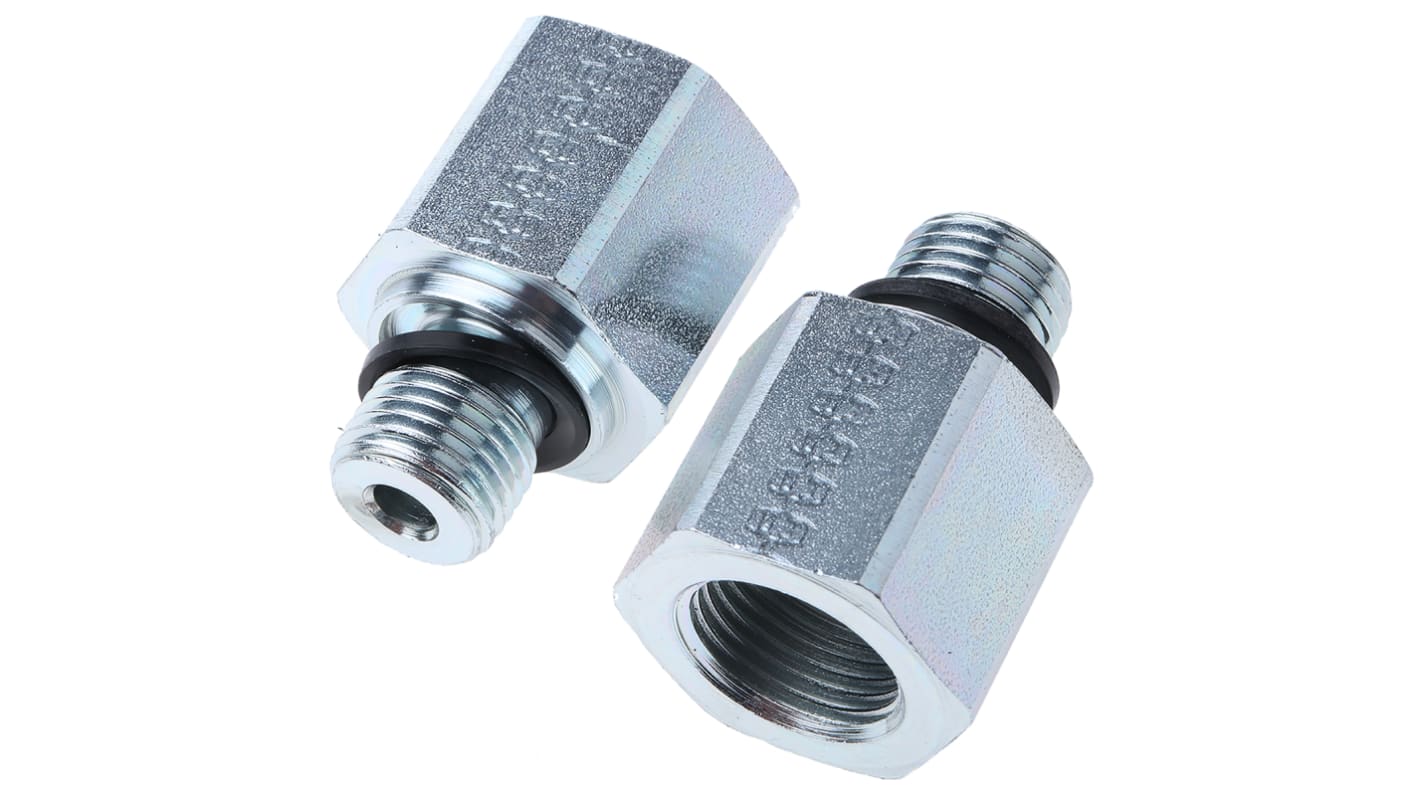

Parker Hydraulic Straight Threaded Reducer G 1/4 Male to G 3/8 Female, RI1/4EDX3/8CF

Subtotal (1 pack of 2 units)*

£11.40

(exc. VAT)

£13.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 42 unit(s) shipping from 27 October 2025
  • Plus 30 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£11.40£5.70

*price indicative

RS Stock No.:
110-501
Mfr. Part No.:
RI1/4EDX3/8CF
Brand:
Parker
Find similar products by selecting one or more attributes.
Select all

Brand

Parker

Connector A

G 1/4 Male

Connector A - Thread Size

1/4in

Hydraulic Fitting Type

Hydraulic Straight Threaded Reducer

Connector B

G 3/8 Female

Connector B - Thread Size

3/8in

Material

Steel

Finish

Zinc Plated

Connector A - Thread Standard

G

Connector A - Gender

Male

Connector B - Gender

Female

Connector B - Thread Standard

G

Maximum Operating Pressure

400bar

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+100°C

RoHS Status: Exempt

COO (Country of Origin):
DE

BSP Reducers


Reducing thread adaptors with male (Rs) BSP parallel thread to female (Rp) BSP parallel thread. Male thread is sealed at the port connection with a nitrile rubber seal. Operating temperature range without pressure reductions is -30 to +100°C. Manufactured from steel to BS5200 with a zinc yellow chromated finish to give a high corrosion resistance (500 hours in salt spray test). The 60° female cone makes these adaptors an ideal port fitting for use with our range of BSP reusable fittings and crimped hose assemblies.

Features and Benefits


Visible bite of progressive ring helps prevent blow-off
Excellent sealing capacity when used in various applications including vacuum and hydraulic systems
Stress evenly distributed throughout out minimising concentration at the bite point
Compact overall dimensions make EO fittings ideal or confined spaces

Note

For adaptors of unequal sizes then the lower pressure rating is applicable.

Warning

Hydraulic systems can work at high pressures, and fittings and adaptors can be subjected to extreme loadings such as vibration and uncontrolled pressure peaks. When choosing fittings or adaptors careful attention should be given to the technical specifications.

Standards

DIN 3852
