Bosch Rexroth, R901278761 CETOP Mounting Hydraulic Solenoid Actuated Directional Control Valve, CETOP 5, E, 24V dc
- RS Stock No.:
- 122-712
- Mfr. Part No.:
- R901278761
- Brand:
- Bosch Rexroth
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£367.48
(exc. VAT)
£440.98
(inc. VAT)
- RS Stock No.:
- 122-712
- Mfr. Part No.:
- R901278761
- Brand:
- Bosch Rexroth
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bosch Rexroth | |
| Number of Positions | 2 | |
| Number of Ports | 4-way | |
| CETOP Mounting | CETOP 5 | |
| Power Supply Voltage | 24V dc | |
| Solenoid Type | Double | |
| Manufacturer Series | 3X | |
| Spool Type | E | |
| Maximum Flow Rate | 80L/min | |
| Maximum Operating Pressure | 350 bar | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Bosch Rexroth | ||
Number of Positions 2 | ||
Number of Ports 4-way | ||
CETOP Mounting CETOP 5 | ||
Power Supply Voltage 24V dc | ||
Solenoid Type Double | ||
Manufacturer Series 3X | ||
Spool Type E | ||
Maximum Flow Rate 80L/min | ||
Maximum Operating Pressure 350 bar | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

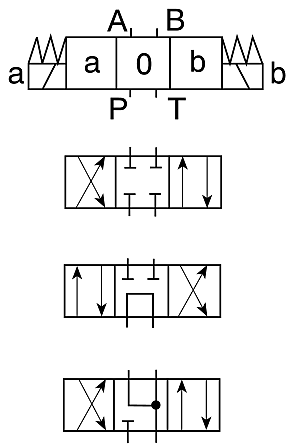

Solenoid Operated Directional Spool Valves, CETOP 5, Size 10
10X Series direct operating, spring return directional control spool valves.
Operated by a 24Vdc or 110Vac power supply
Porting is to CETOP 5 size 10 for subplate mounting, making these valves interchangeable with any other valve conforming to CETOP 5 standard
Mounting pattern to DIN 24 340 form A, ISO4401 and CETOP – RP 121H
Each valve has an emergency hand operator (only possible up to approx. 50 bar)
Wet pin ac or dc solenoids
Replacement coils 24Vdc and 110Vac are available separately
Seal kit available separately
Porting is to CETOP 5 size 10 for subplate mounting, making these valves interchangeable with any other valve conforming to CETOP 5 standard
Mounting pattern to DIN 24 340 form A, ISO4401 and CETOP – RP 121H
Each valve has an emergency hand operator (only possible up to approx. 50 bar)
Wet pin ac or dc solenoids
Replacement coils 24Vdc and 110Vac are available separately
Seal kit available separately
