RS PRO Steel Single Inline Mounting, Hydraulic Check Valve, G 1/4, 15L/min
- RS Stock No.:
- 283-8295
- Brand:
- RS PRO
Subtotal (1 unit)*
£14.46
(exc. VAT)
£17.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 110 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.46 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£114.97
(exc. VAT)
£137.96
(inc. VAT)
- RS Stock No.:
- 283-8295
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thread Size | 1/4in | |
| Connection Port Thread | G 1/4 | |
| Body Material | Steel | |
| Maximum Flow Rate | 15L/min | |
| Single/Double | Single | |
| Maximum Operating Pressure | 350bar | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +100°C | |
| Mounting Type | Inline | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thread Size 1/4in | ||
Connection Port Thread G 1/4 | ||
Body Material Steel | ||
Maximum Flow Rate 15L/min | ||
Single/Double Single | ||
Maximum Operating Pressure 350bar | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
Mounting Type Inline | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

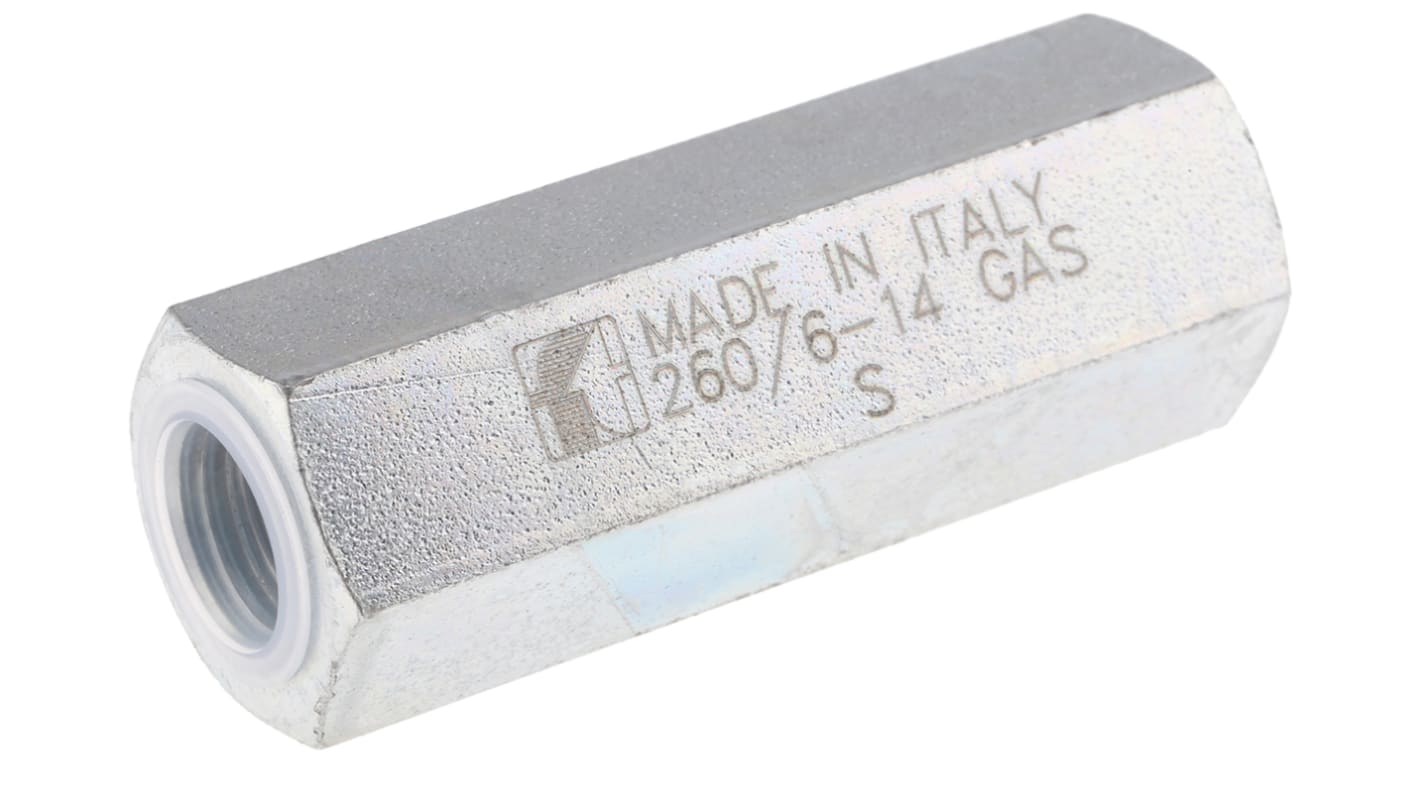

RS PRO Steel Inline Mounting, Hydraulic Check Valve, G 1/4, 15 L/min
Need a reliable check valve for your hydraulic system? This RS PRO inline mounting valve is easy to install, connecting directly to your pipeline. It's made from a strong stainless steel material with a corrosion-resistant Nylon guide for increased durability.
The ball mechanism is spring-loaded for positive action, so it can be fitted vertically or horizontally, giving you greater flexibility. This valve has a standard CETOP (Comité Européenne des Transmissions Oléohydrauliques et Pneumatiques) mounting pattern, so it can be used in a wide variety of hydraulic, pneumatic and mechanical applications.
The soft-seated thermoplastic ball material creates a tight seal, so it can be used with gas. For systems that use water, try an alternative component, such as a zinc-passivated carbon steel valve instead.
The ball mechanism is spring-loaded for positive action, so it can be fitted vertically or horizontally, giving you greater flexibility. This valve has a standard CETOP (Comité Européenne des Transmissions Oléohydrauliques et Pneumatiques) mounting pattern, so it can be used in a wide variety of hydraulic, pneumatic and mechanical applications.
The soft-seated thermoplastic ball material creates a tight seal, so it can be used with gas. For systems that use water, try an alternative component, such as a zinc-passivated carbon steel valve instead.
Features and Benefits
• Steel body material
• G 1/4 connection port thread
• Maximum flow rate of 15 L/min
• Maximum operating pressure of 350 bar
• Operating temperature range of -20°C to +100°C
• Inline mounting type
• Thread size of 1/4 in
• Thread standard is G
• G 1/4 connection port thread
• Maximum flow rate of 15 L/min
• Maximum operating pressure of 350 bar
• Operating temperature range of -20°C to +100°C
• Inline mounting type
• Thread size of 1/4 in
• Thread standard is G
