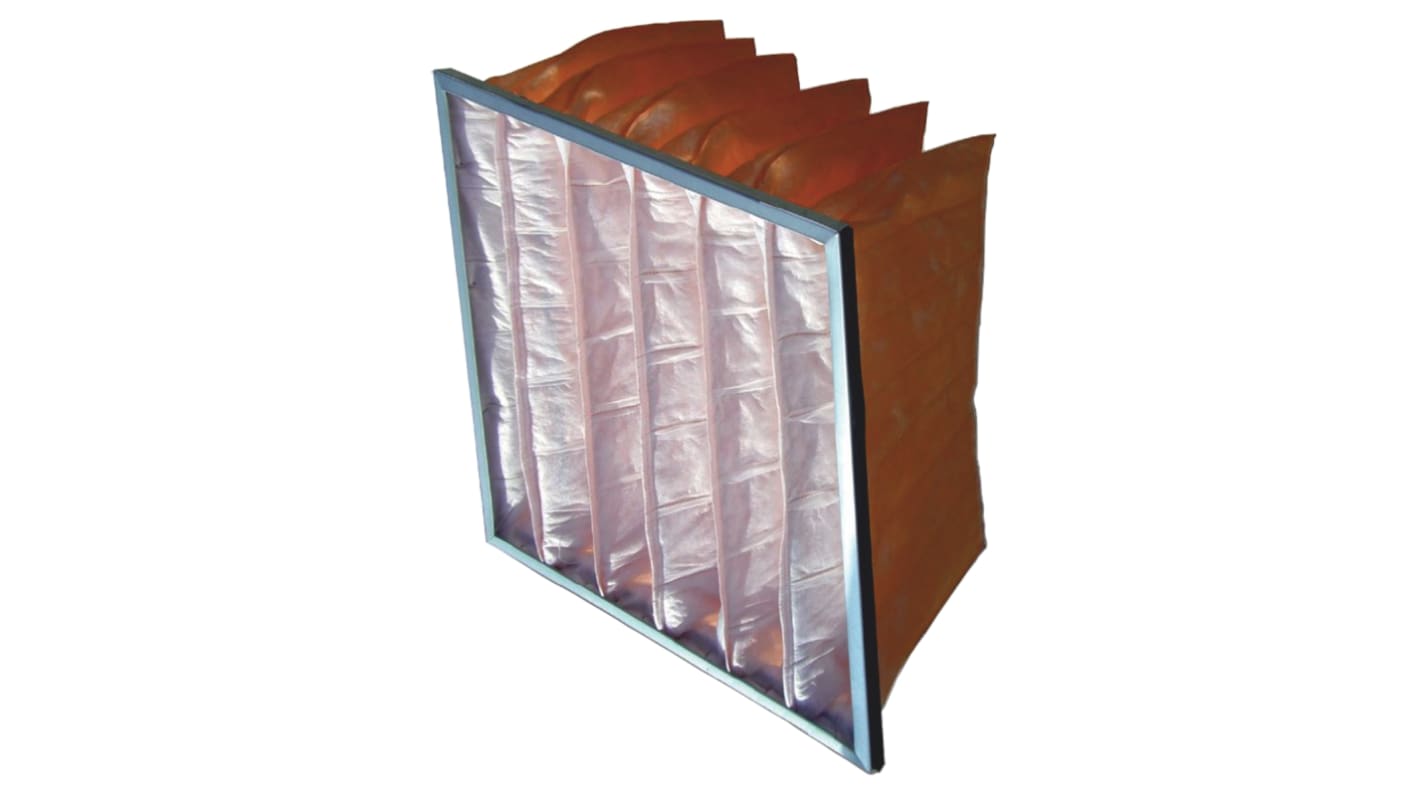

RS PRO Polypropylene Bag Filter, F6, M5 Grade, 11 MERV Rating, 592 x 287 x 350mm

View all HVAC Air Filters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
827-9721
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Filter Type

Bag

Nominal Dimensions

24 x 12 x 15in

Actual Dimensions

592 x 287 x 350mm

Filter MERV Rating

11

Number of Pockets

4

Filter Grade

F6, M5

Maximum Air Flow

63.63m³/h

Initial Pressure Drop

75Pa

Final Pressure Drop

250Pa

Colour

Brown

Case Material

Galvanised Steel

Media Material

Polypropylene

Header Size

20mm

Actual Depth

350mm

Nominal Width

12in

Actual Height

592mm

Actual Width

287mm

Nominal Dimensions Height x Width

24 x 12 in, 24 x 12 x 15 in

Nominal Height

24in

Nominal Depth

15in

COO (Country of Origin):
GB

RS Synthetic Bag Filters - UL900 Class 2 Fire Rated


The Class 2 Fire Rated RS Synthetic Bag Filters are used widely in government buildings, hospitals and other sensitive areas. This grade of filter is suitable for the air filtration and conditioning of offices, theatres, computer rooms and spray booths. These bag filters are manufactured by mounting the 100% polypropylene synthetic media into a galvanised steel header frame.

Efficient mechanised manufacturing techniques deliver cost effective filtration
Hydrophobic media allows great performance in damp atmospheres
Rolled safety edge to prevent the filter material from being cut and to ensure the safety of installation engineers
Extra built-in pre-filter layer which provides extended filter life
Ultrasonically welded pockets to provide highly reliable leak free seams

Approvals

UL900 Class 2 Fire Rated
DIN 53438 K2 / F2
Eurovent Approved
