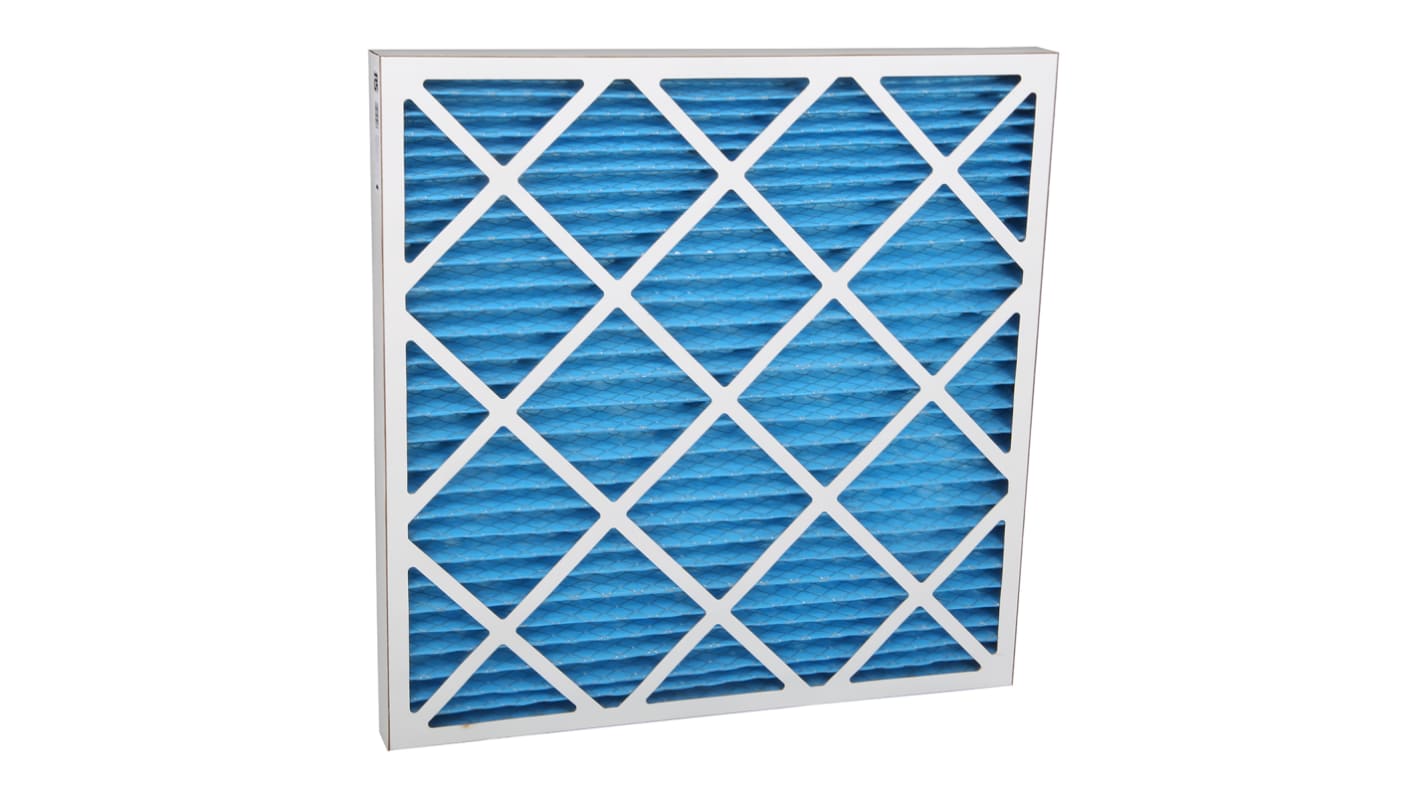

RS PRO Intrepid Pleated Panel Filter, G4 Grade, 7 MERV Rating, 594 x 594 x 45mm
- RS Stock No.:
- 730-2811
- Brand:
- RS PRO
Subtotal (1 pack of 12 units)*
£142.14
(exc. VAT)
£170.568
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 384 unit(s) ready to ship
- Plus 72 unit(s) ready to ship from another location
- Plus 336 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
12 + | £11.845 | £142.14 |
*price indicative
- RS Stock No.:
- 730-2811
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Filter Type | Pleated Panel | |
Nominal Dimensions | 24 x 24 x 2in | |
Actual Dimensions | 594 x 594 x 45mm | |
ISO 16890 Class | ISO-C-75 | |
Filter MERV Rating | 7 | |
Filter Grade | G4 | |
Maximum Air Flow | 3400m³/h | |
Initial Pressure Drop | 38Pa | |
Final Pressure Drop | 200Pa | |
Colour | Blue | |
Case Material | AquaKote | |
Media Material | Intrepid | |
Actual Depth | 45mm | |
Nominal Dimensions Height x Width | 24 x 24 in, 24 x 24 x 2 in | |
Actual Height | 594mm | |
Nominal Depth | 2in | |
Nominal Width | 24in | |
Actual Width | 594mm | |
Nominal Height | 24in | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Filter Type Pleated Panel | ||
Nominal Dimensions 24 x 24 x 2in | ||
Actual Dimensions 594 x 594 x 45mm | ||
ISO 16890 Class ISO-C-75 | ||
Filter MERV Rating 7 | ||
Filter Grade G4 | ||
Maximum Air Flow 3400m³/h | ||
Initial Pressure Drop 38Pa | ||
Final Pressure Drop 200Pa | ||
Colour Blue | ||
Case Material AquaKote | ||
Media Material Intrepid | ||
Actual Depth 45mm | ||
Nominal Dimensions Height x Width 24 x 24 in, 24 x 24 x 2 in | ||
Actual Height 594mm | ||
Nominal Depth 2in | ||
Nominal Width 24in | ||
Actual Width 594mm | ||
Nominal Height 24in | ||
- COO (Country of Origin):
- GB
RS PRO Pleated Panel Filter, Intrepid Media, G4 Grade
This energy-saving panel filter offers pre-filtration or a basic level of filtration in heating, ventilation and air conditioning (HVAC) systems. As part of the RS PRO range, it's been stringently tested for consistent quality and durability.
The panel is made with patented Kimberly Clark Intrepid® filter media. This media's graduated density ensures even dirt loading, greater dust holding and longer filter life, which means that the panel will consistently filter at the same level. The media is also hydrophobic and has an extra natural electrostatic charge, giving it constant efficiency. Made from continuous fibres, it won't shed.
The filter media is pleated, then bonded into a frame made from water-repellent AquaKote® card. This card is manufactured from a renewable source and has excellent tear resistance.
The HVAC air filter is Eurovent-approved as a quality component. As a grade 4 filter, this product captures particles you can see with the naked eye. Standard air filters of this kind are used to collect debris and dust in spaces such as factories.
The panel is made with patented Kimberly Clark Intrepid® filter media. This media's graduated density ensures even dirt loading, greater dust holding and longer filter life, which means that the panel will consistently filter at the same level. The media is also hydrophobic and has an extra natural electrostatic charge, giving it constant efficiency. Made from continuous fibres, it won't shed.
The filter media is pleated, then bonded into a frame made from water-repellent AquaKote® card. This card is manufactured from a renewable source and has excellent tear resistance.
The HVAC air filter is Eurovent-approved as a quality component. As a grade 4 filter, this product captures particles you can see with the naked eye. Standard air filters of this kind are used to collect debris and dust in spaces such as factories.
Features and Benefits
• Air filter
• Pleated panel filter type
• Intrepid® filter media for longer filter life
• Initial pressure drop of 38 Pa
• Final pressure drop of 200 Pa
• Filter MERV rating of 7
• Filter grade of G4
• Maximum air flow of 3,400 m³/h
• AquaKote® card case
• Blue colour
• Nominal height of 24 in
• Nominal width of 24 in
• Nominal depth of 2 in
• Actual height of 594 mm
• Actual width of 594 mm
• Actual depth of 45 mm
• Eurovent approved
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• Pleated panel filter type
• Intrepid® filter media for longer filter life
• Initial pressure drop of 38 Pa
• Final pressure drop of 200 Pa
• Filter MERV rating of 7
• Filter grade of G4
• Maximum air flow of 3,400 m³/h
• AquaKote® card case
• Blue colour
• Nominal height of 24 in
• Nominal width of 24 in
• Nominal depth of 2 in
• Actual height of 594 mm
• Actual width of 594 mm
• Actual depth of 45 mm
• Eurovent approved
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
