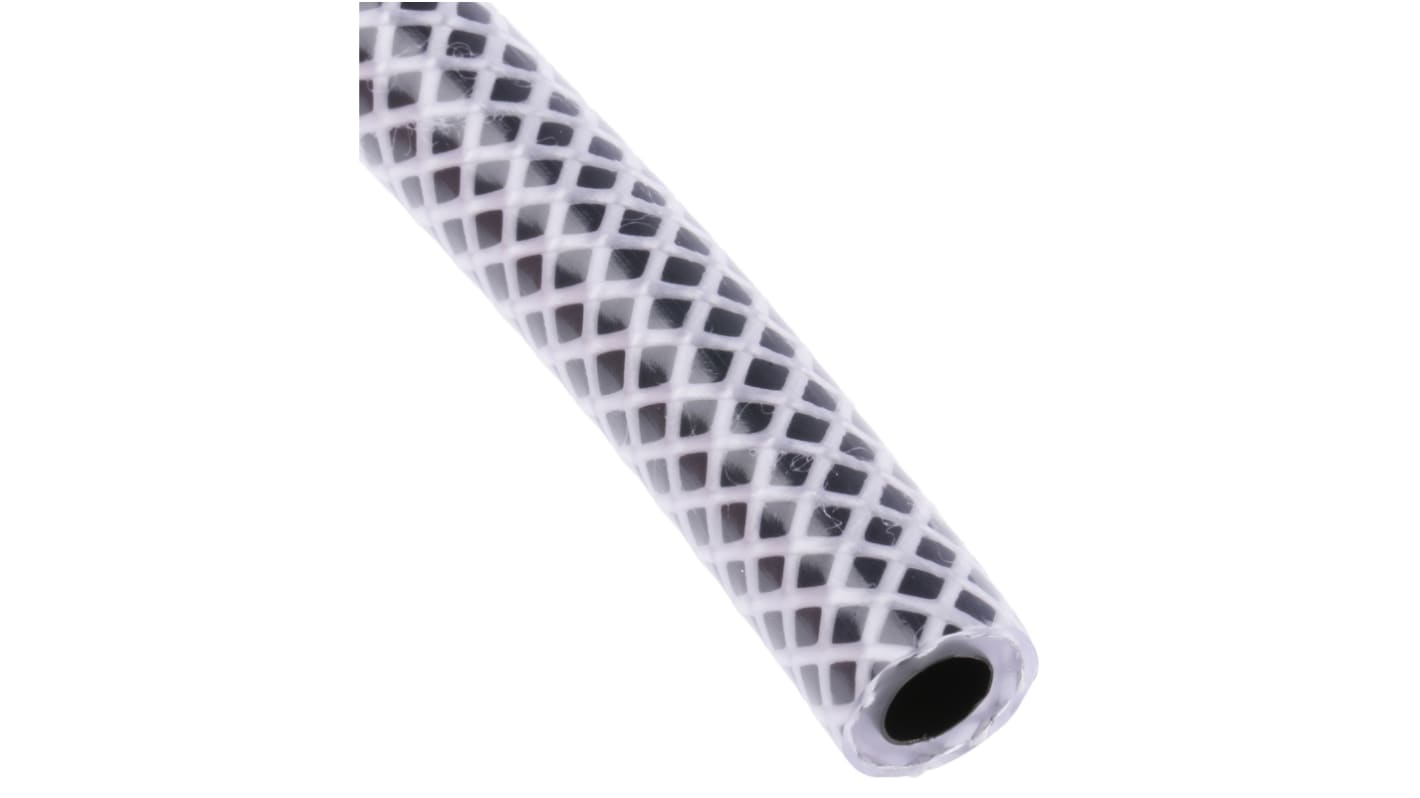

RS PRO PVC, Hose Pipe, 6mm ID, 11mm OD, Black, 30m
- RS Stock No.:
- 399-1139
- Brand:
- RS PRO
Subtotal (1 unit)*
£148.60
(exc. VAT)
£178.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £148.60 |
*price indicative
- RS Stock No.:
- 399-1139
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Hose Pipe/Flexible Tube | Hose Pipe | |
| Inner Diameter | 6mm | |
| Outer Diameter | 11mm | |
| Material | PVC | |
| Hose Pipe Action | Transfer | |
| Maximum Working Pressure | 10 bar | |
| Suitable Applications | Compressed Air | |
| Standards Met | ISO 2878 | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +60°C | |
| Colour | Black | |
| Length | 30m | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Hose Pipe/Flexible Tube Hose Pipe | ||
Inner Diameter 6mm | ||
Outer Diameter 11mm | ||
Material PVC | ||
Hose Pipe Action Transfer | ||
Maximum Working Pressure 10 bar | ||
Suitable Applications Compressed Air | ||
Standards Met ISO 2878 | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +60°C | ||
Colour Black | ||
Length 30m | ||
- COO (Country of Origin):
- GB
Extra Flexible Antistatic Air Hose
Designed specifically for electro-static sensitive environments, Anti-Static Hose is the effective hosing solution for areas with potentially damaging static build-up. Widely used by the electronics industry and developed in collaboration with a leading manufacturer of pneumatic tools
Features and Benefits
• Effective anti-static properties to reduce the risk of electro-static damage
• Highly flexible, reinforced PVC hose
• Typical electrical resistance recorded at between (3 x 103 Ω per metre (minimum) and 1 x 106 Ω per metre (maximum)
• Low toxic liner suitable for food use
• Cadmium and silicone-free
• Resistant to a wide range of chemicals
• Abrasion-resistant
• Specially selected high tensile polyester fibres used at the optimum braid angle of 54° 44′(54.73°) creates an effective and balanced pressure hose
• Service temperature -15°C to + 60°C
• 4:1 safety factor
Product Application Information
• Widely used by the electronics industry – especially computers
• Pneumatic tools and equipment in electro-static sensitive areas
Note
The connection device must be earthed/grounded
Working Pressure is at +20°C
Working Pressure is at +20°C
Standards
BS6066 1981 (1986) and ISO 5774 1980
Approvals
BS2050 1978(1998) 4.12
PVC Industrial Hoses - Coloured
A range of industrial hoses made from Cadmium free materials. Offering excellent abrasion resistance and good flexibility, they are Silicone free ,with a service temperature of -15°C to +60°C.
