RS PRO CPE, FKM, NBR, Hose Pipe, 9.5mm ID, 16.5mm OD, Black, 25m
- RS Stock No.:
- 146-7749
- Brand:
- RS PRO
Subtotal (1 unit)*
£361.12
(exc. VAT)
£433.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 999,999,996 unit(s) shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £361.12 |
*price indicative
- RS Stock No.:
- 146-7749
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Hose Pipe/Flexible Tube | Hose Pipe | |
| Inner Diameter | 9.5mm | |
| Outer Diameter | 16.5mm | |
| Material | CPE, FKM, NBR | |
| Hose Pipe Action | Transfer | |
| Maximum Working Pressure | 7 bar | |
| Suitable Applications | Fuel & Oil | |
| Standards Met | SAE J30 R9 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +130°C | |
| Colour | Black | |
| Length | 25m | |
| Bend Radius | 62mm | |
| Inner Material | FKM, NBR | |
| Flexible | Yes | |
| Outer Material | CPE | |
| Reinforced | Yes | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Hose Pipe/Flexible Tube Hose Pipe | ||
Inner Diameter 9.5mm | ||
Outer Diameter 16.5mm | ||
Material CPE, FKM, NBR | ||
Hose Pipe Action Transfer | ||
Maximum Working Pressure 7 bar | ||
Suitable Applications Fuel & Oil | ||
Standards Met SAE J30 R9 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +130°C | ||
Colour Black | ||
Length 25m | ||
Bend Radius 62mm | ||
Inner Material FKM, NBR | ||
Flexible Yes | ||
Outer Material CPE | ||
Reinforced Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH

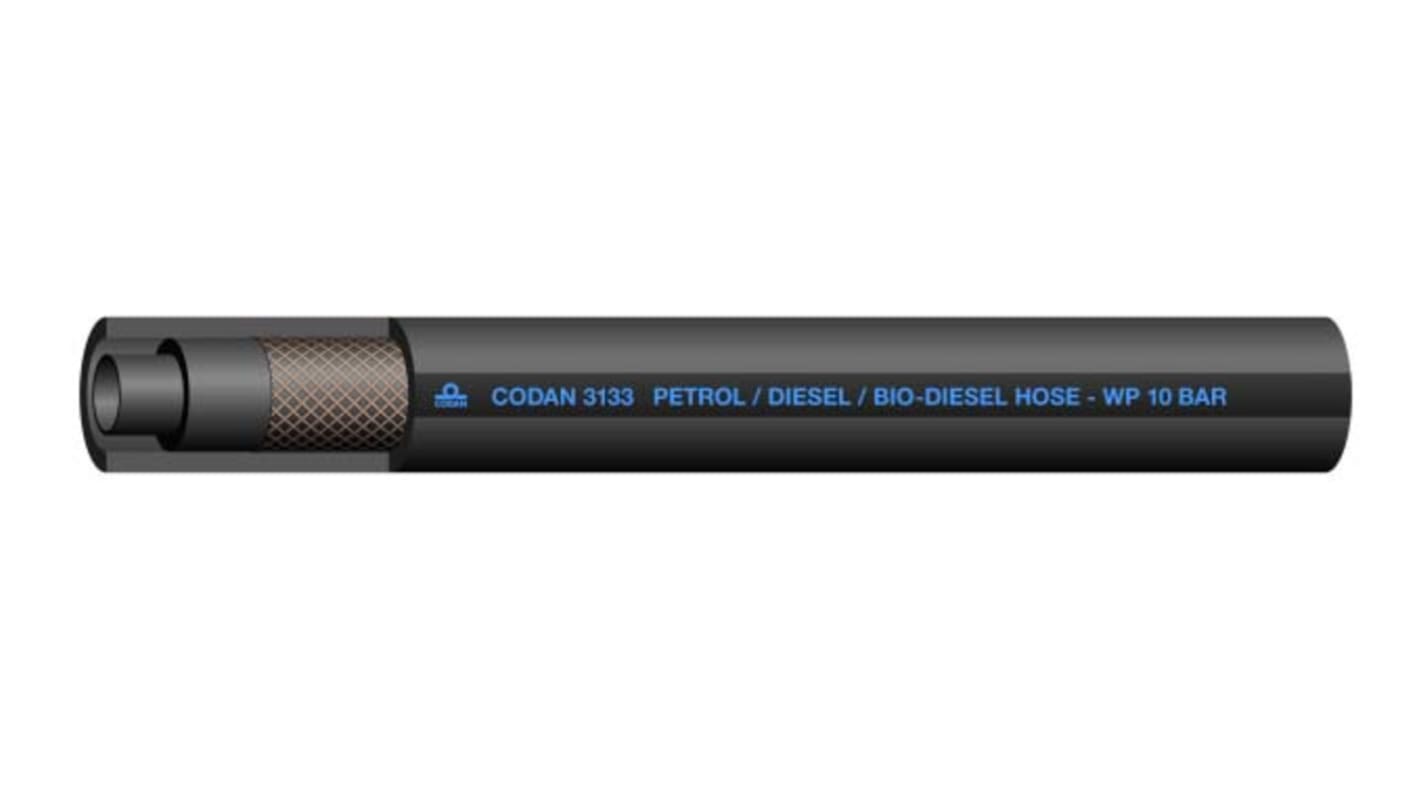

Black, flexible hose for fuel in automotive or engine application. High resistance to all above media and especially used in Car, Truck,Agricultural and Construction equipment vehicles for fuel injection systems. High temp hose with low permeation for Petrol at less than15g/m2/24hrs. Normally installed using crimped ferrules or petrol hose clips. Suitable for petrol, diesel, ethanol, gasoline, oxidized sour gas, oil and biodiesel. Intermittent Temperature: +150 °C
