RS PRO PVC, Hose Pipe, 76mm ID, 89.6mm OD, Clear, 5m
- RS Stock No.:
- 136-9533
- Brand:
- RS PRO
Subtotal (1 unit)*
£250.60
(exc. VAT)
£300.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £250.60 |
*price indicative
- RS Stock No.:
- 136-9533
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Hose Pipe/Flexible Tube | Hose Pipe | |
| Inner Diameter | 76mm | |
| Outer Diameter | 89.6mm | |
| Material | PVC | |
| Hose Pipe Action | Transfer, Vacuum | |
| Maximum Working Pressure | 4.7 bar | |
| Suitable Applications | Food | |
| Standards Met | EU Food | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +55°C | |
| Colour | Clear | |
| Length | 5m | |
| Bend Radius | 200mm | |
| Reinforced | Yes | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Hose Pipe/Flexible Tube Hose Pipe | ||
Inner Diameter 76mm | ||
Outer Diameter 89.6mm | ||
Material PVC | ||
Hose Pipe Action Transfer, Vacuum | ||
Maximum Working Pressure 4.7 bar | ||
Suitable Applications Food | ||
Standards Met EU Food | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +55°C | ||
Colour Clear | ||
Length 5m | ||
Bend Radius 200mm | ||
Reinforced Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

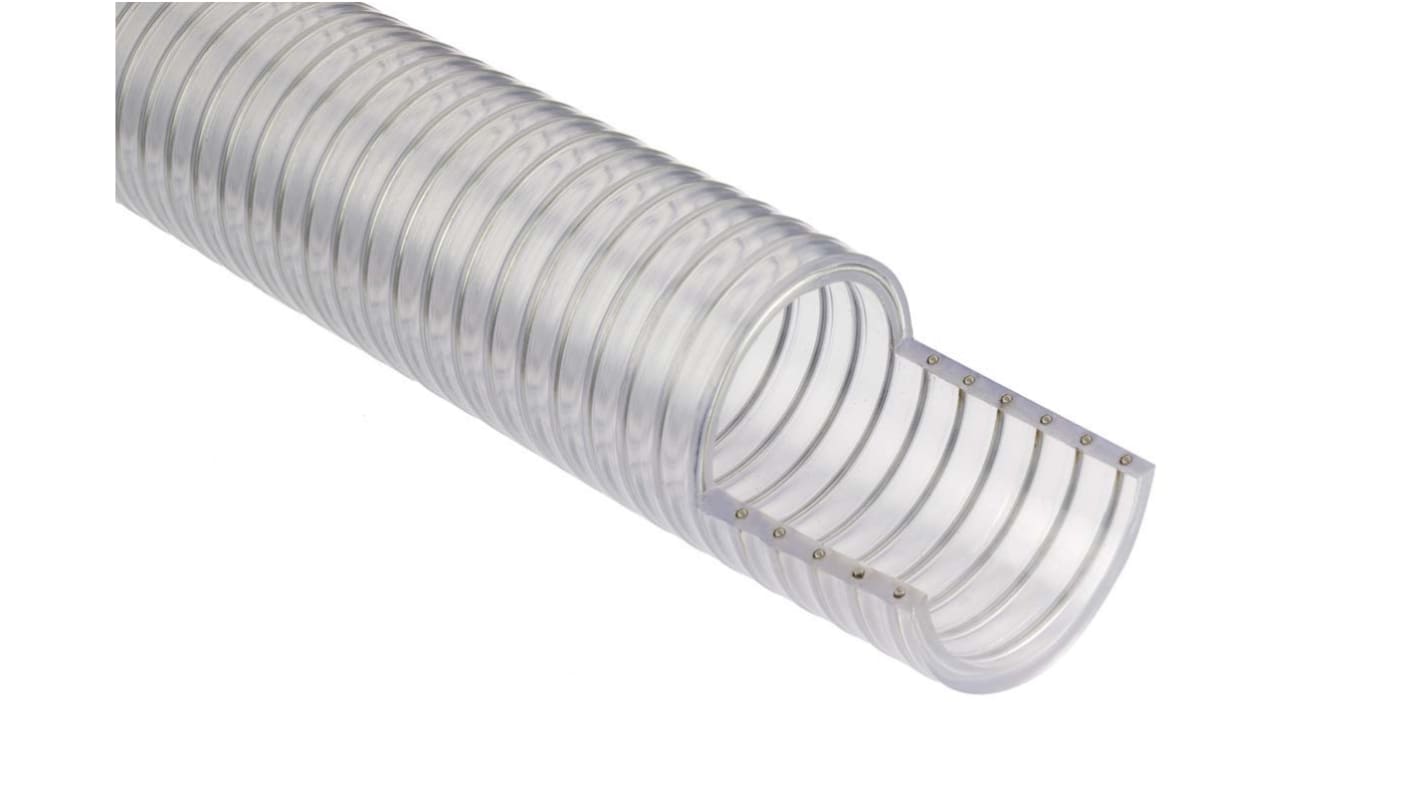

RS PRO Non-Toxic Clear/Wire Reinforced Delivery Hose
This extremely tough and flexible non-toxic transparent PVC hose from our own RS PRO brand is designed to allow easy identification of blockages. It has excellent resistance to pressure, vacuum, abrasion and accidental crushing with a coarse pitch and steel helix spring preventing bulging and bursting.
Features and Benefits
• Highly flexible over a wide temperature range
• Smooth bore reduces flow loss
• Designed for more arduous applications
• Manufactured from compounds containing nitrile
• Reinforced with high tensile polyester fibres, excellent for transportation of fuel oils in high pressure applications
• Smooth bore reduces flow loss
• Designed for more arduous applications
• Manufactured from compounds containing nitrile
• Reinforced with high tensile polyester fibres, excellent for transportation of fuel oils in high pressure applications
Specifications
• Temperature range -10°C to +55°C
• Non-toxic and suitable for food applications
• Resistant to full vacuum
• Anti-static feature
• Independently tested to European Food Regulation 10/2011
• Can be used repeatedly with all food types (excluding fatty foods) at full temperature range
• RoHS and REACH compliant
• Non-toxic and suitable for food applications
• Resistant to full vacuum
• Anti-static feature
• Independently tested to European Food Regulation 10/2011
• Can be used repeatedly with all food types (excluding fatty foods) at full temperature range
• RoHS and REACH compliant
Applications
This RS PRO clear PVC hose is suitable for the suction and delivery of water, slurries, granules, foodstuffs and dilute chemicals.
Ideally suited for:
Ideally suited for:
• Agriculture
• Food processing
• Plastic handling
• Marine and construction industries
• Food processing
• Plastic handling
• Marine and construction industries
