Contitech Vacupress Oil PVC, Hose Pipe, 32mm ID, 42.5mm OD, Black, 5m
- RS Stock No.:
- 135-7810
- Mfr. Part No.:
- 265032RS5
- Brand:
- Contitech
Subtotal (1 unit)*
£134.91
(exc. VAT)
£161.89
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 5 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £134.91 |
*price indicative
- RS Stock No.:
- 135-7810
- Mfr. Part No.:
- 265032RS5
- Brand:
- Contitech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Contitech | |
Hose Pipe/Flexible Tube | Hose Pipe | |
Inner Diameter | 32mm | |
Outer Diameter | 42.5mm | |
Material | PVC | |
Hose Pipe Action | Transfer, Vacuum | |
Maximum Working Pressure | 16 bar | |
Suitable Applications | Fuel & Oil | |
Series | Vacupress Oil | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +55°C | |
Colour | Black | |
Length | 5m | |
Bend Radius | 100mm | |
Reinforced | Yes | |
Select all | ||
---|---|---|
Brand Contitech | ||
Hose Pipe/Flexible Tube Hose Pipe | ||
Inner Diameter 32mm | ||
Outer Diameter 42.5mm | ||
Material PVC | ||
Hose Pipe Action Transfer, Vacuum | ||
Maximum Working Pressure 16 bar | ||
Suitable Applications Fuel & Oil | ||
Series Vacupress Oil | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +55°C | ||
Colour Black | ||
Length 5m | ||
Bend Radius 100mm | ||
Reinforced Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Merlett Vacupress Oil

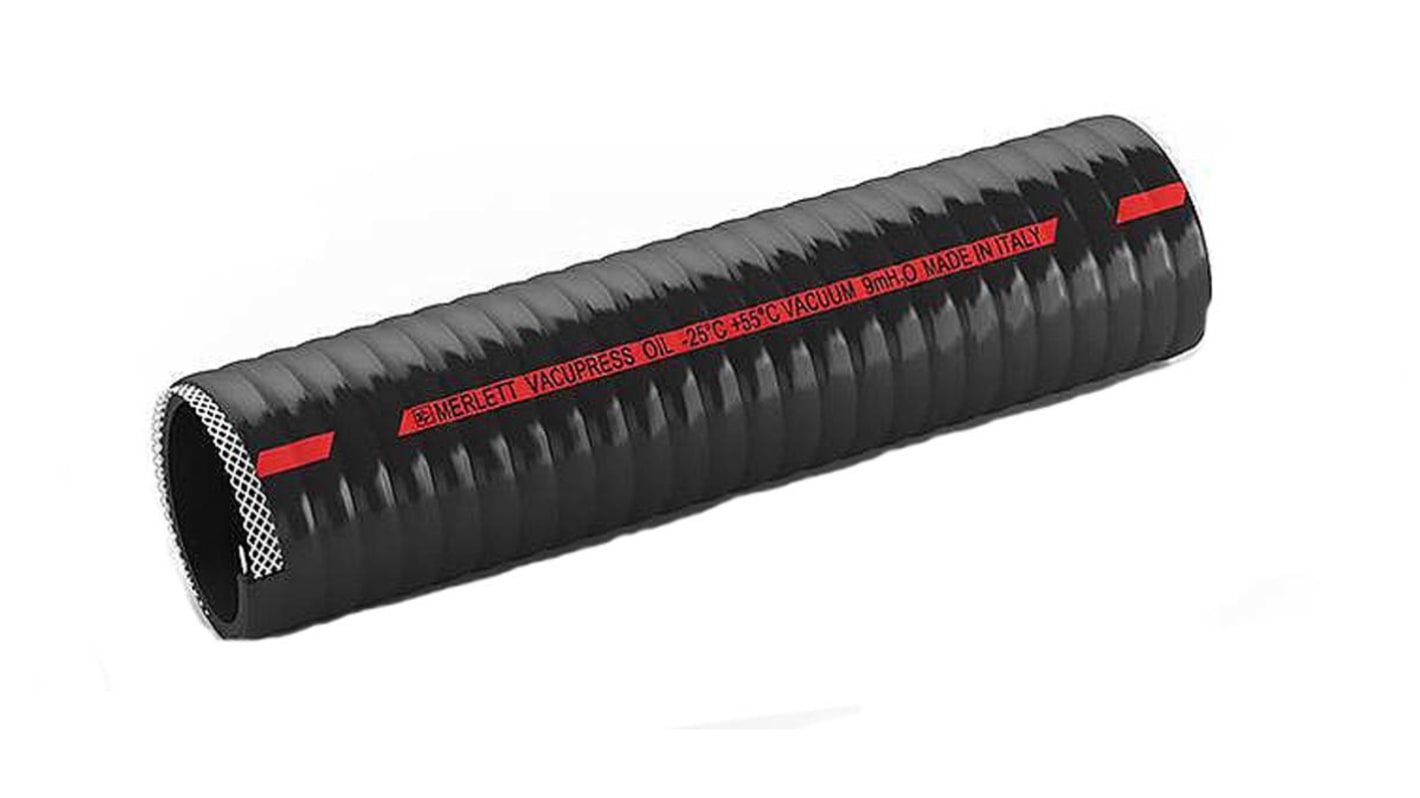

A two layer hose with a PVC (polyvinyl chloride) / PU (polyurethane) outer and inner constructed from a PVC, PU and NBR rubber compound mix. The two layers sandwich a polyester yarn reinforcement and a galvanised steel spiral to help maintain shape and crush resistance.
Features and Benefits
Smooth surface
Excellent flexibility
Abrasion resistance
Steel spiral
Polyester yarn reinforcement
Good Crush resistance
Applications
Suitable for the suction and delivery of oils, blue diesel, diesel and bio diesel in various industry sectors including,
Agriculture
Building
Marine
Transport
Rubber Hose
A range of fully flexible rubber hoses. All have spirally laid, textile reinforcement.
