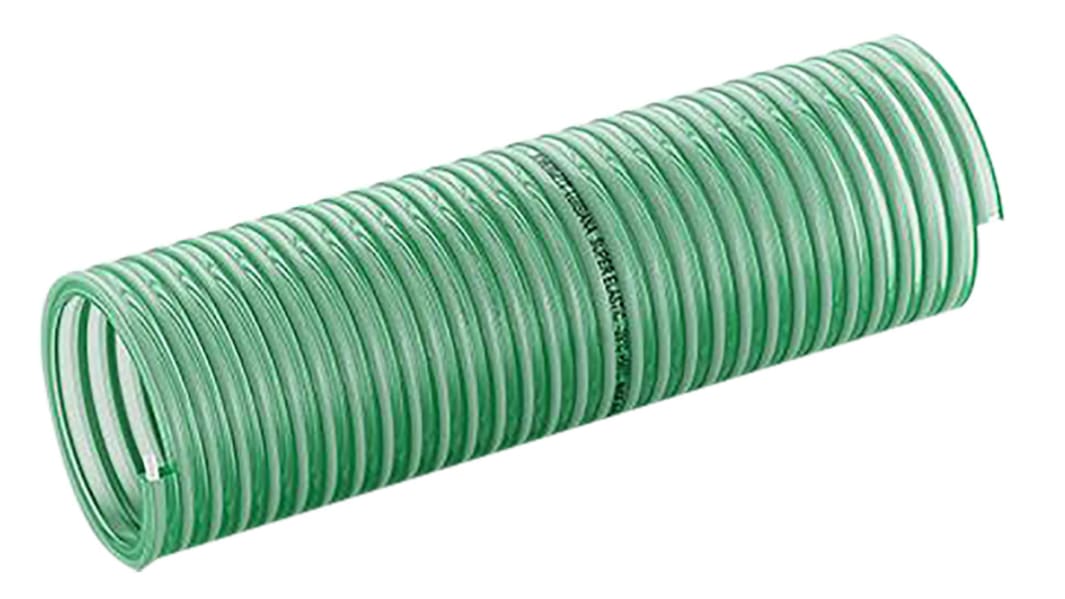

Contitech Luisiana PVC, Hose Pipe, 38mm ID, 45.4mm OD, Green, 5m
- RS Stock No.:
- 125-8972
- Mfr. Part No.:
- 9110220389005G
- Brand:
- Contitech
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 125-8972
- Mfr. Part No.:
- 9110220389005G
- Brand:
- Contitech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Contitech | |
Hose Pipe/Flexible Tube | Hose Pipe | |
Inner Diameter | 38mm | |
Outer Diameter | 45.4mm | |
Material | PVC | |
Hose Pipe Action | Transfer, Vacuum | |
Maximum Working Pressure | 4.5 bar | |
Suitable Applications | Industrial | |
Series | Luisiana | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +55°C | |
Colour | Green | |
Length | 5m | |
Bend Radius | 155mm | |
Reinforced | Yes | |
Select all | ||
---|---|---|
Brand Contitech | ||
Hose Pipe/Flexible Tube Hose Pipe | ||
Inner Diameter 38mm | ||
Outer Diameter 45.4mm | ||
Material PVC | ||
Hose Pipe Action Transfer, Vacuum | ||
Maximum Working Pressure 4.5 bar | ||
Suitable Applications Industrial | ||
Series Luisiana | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +55°C | ||
Colour Green | ||
Length 5m | ||
Bend Radius 155mm | ||
Reinforced Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Merlett Luisiana Superelastic Green Hosing
The Luisiana Superelastic hosing from Merlett is a PVC hose with rigid PVC spirals.
Features and Benefits
Smooth surface
Flexible
Good abrasion resistance
Temperature range of -25°C to 55°C
Good crush resistance
Flexible
Good abrasion resistance
Temperature range of -25°C to 55°C
Good crush resistance
Product Application Information
Ideal for delivering liquids and suction.
