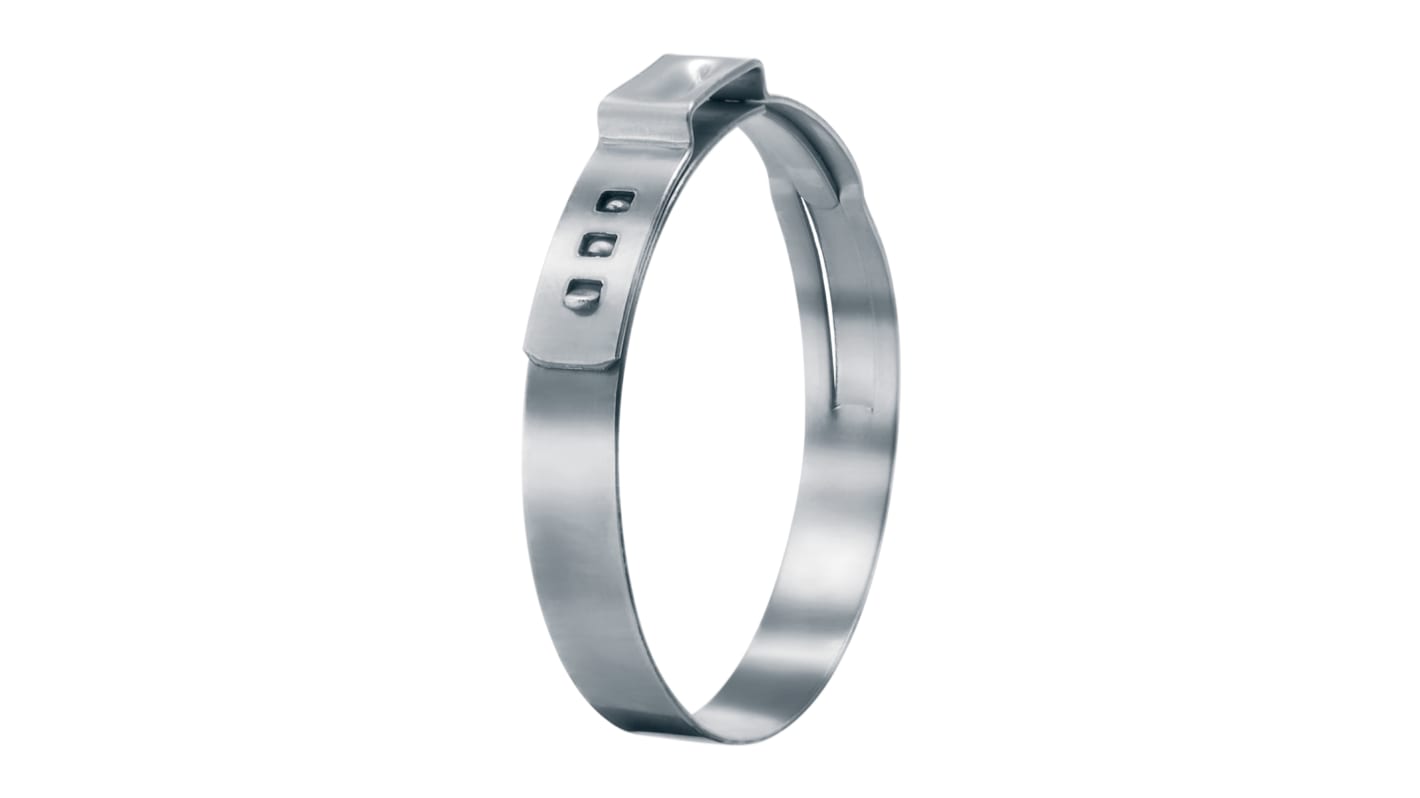

Oetiker Stainless Steel Stepless O Clip, 5mm Band Width, 10.1 → 11.8mm ID
- RS Stock No.:
- 189-4552
- Mfr. Part No.:
- OET16700008
- Brand:
- Oetiker
158 In stock - FREE next working day delivery available
13 available from Europe for delivery within 2 working day(s).
Price 1 Bag of 5
£4.57
(exc. VAT)
£5.48
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £4.57 | £0.914 |
*price indicative
- RS Stock No.:
- 189-4552
- Mfr. Part No.:
- OET16700008
- Brand:
- Oetiker
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Corrosion resistance
Narrow band: concentrates transmission of clamping force, less weight
Stepless over 360°: uniform compression or uniform surface pressure
Clamp ear: compensates for component tolerances, adjustable surface pressure
Dimple: increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion
Burr-free strip edges: reduced risk of damage to parts being clamped
Narrow band: concentrates transmission of clamping force, less weight
Stepless over 360°: uniform compression or uniform surface pressure
Clamp ear: compensates for component tolerances, adjustable surface pressure
Dimple: increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion
Burr-free strip edges: reduced risk of damage to parts being clamped
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 10.1 → 11.8mm |
| Clip Type | Stepless O Clip |
| Material | Stainless Steel |
| Inside Diameter Minimum | 10.1mm |
| Inside Diameter Maximum | 11.8mm |
| Band Width | 5mm |
| Stainless Steel Type | 1.4301 / UNS S30400 |
