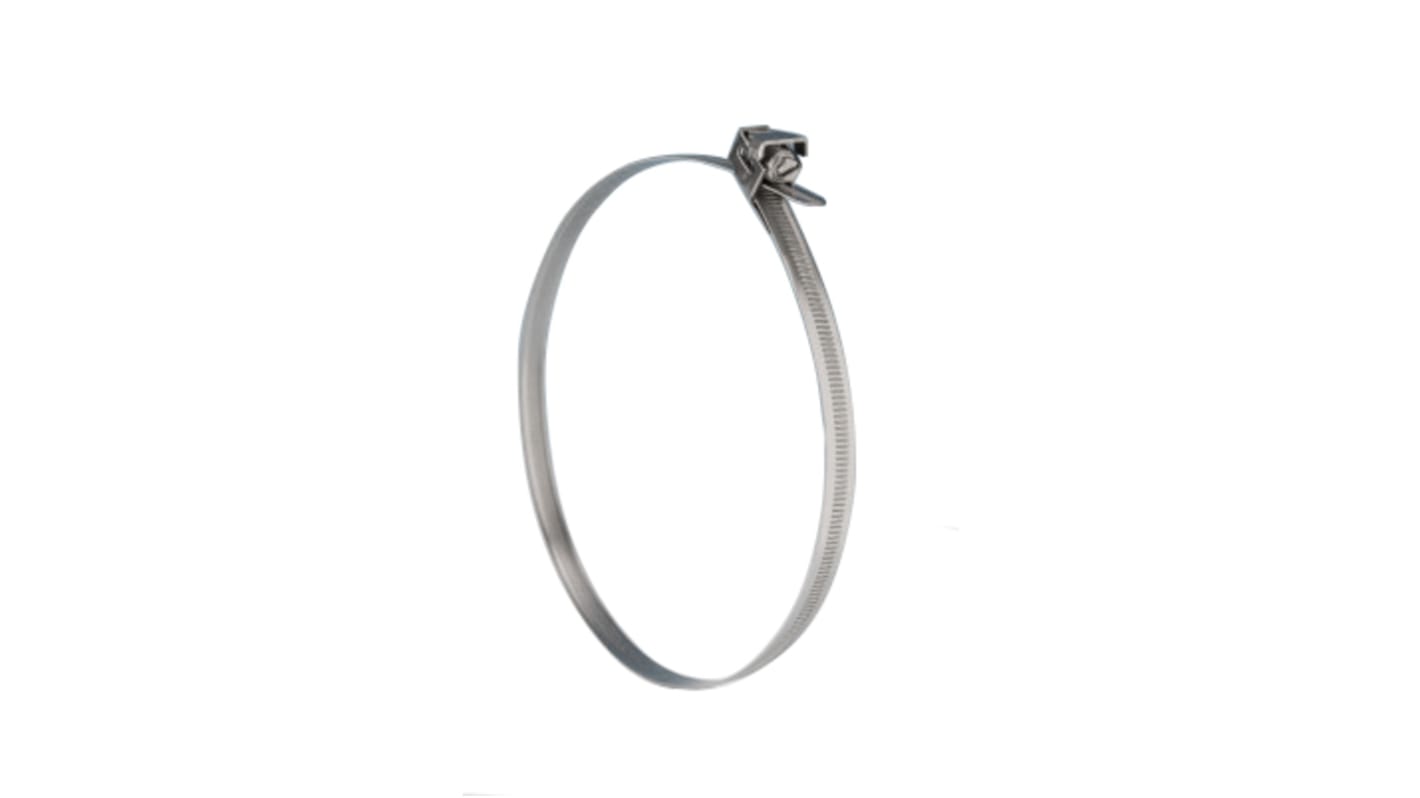

Jubilee Stainless Steel Slotted Hex Quick Release Strap, 11mm Band Width, 50 → 200mm ID

Save 16% when you buy 30 units

Subtotal (1 bag of 5 units)*

£53.18

(exc. VAT)

£63.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£53.18£10.636
5 - 9£50.52£10.104
10 - 29£47.86£9.572
30 +£44.67£8.934

*price indicative

RS Stock No.:
144-0760
Mfr. Part No.:
CAS200SS
Brand:
Jubilee
Find similar products by selecting one or more attributes.
Select all

Brand

Jubilee

Inside Diameter

50 → 200mm

Clip Type

Quick Release Strap

Material

Stainless Steel

Inside Diameter Minimum

50mm

Inside Diameter Maximum

200mm

Band Width

11mm

Stainless Steel Type

A2 304

Screw/Bolt Head

Slotted Hex

COO (Country of Origin):
GB
Jubilee Captive Straps are used in a wide range of applications where a closed installation requires the clamp to be opened fully for positioning of the clamp. Examples include sign fixing, cable retention, repairs and heating, ventilation and air conditioning. Jubilee Captive Straps are available in mild and stainless steel.

7mm hex head or slotted design
Zinc protected mild steel or all 304 stainless steel
11mm or 7mm band width
Made in UK

Jubilee Quick Release Straps are used in a wide range of applications where a closed installation requires the clamp to be opened fully for positioning. Examples include sign fixing, cable retention, repairs and heating, ventilation and air conditioning. Jubilee Quick Release Straps are available in mild and stainless steel. Jubilee Quick Release Straps are manufactured with a quick release swivel housing design which locks into position once the clip is fastened. The strong housing design ensures a higher maximum tightening torque than other quick release designs and the screw fitting requires no specialist tools to install, making installation quicker and more cost effective than some more complex solutions. The design also benefits from being reusable. Jubilee Quick Release Straps may also be used in cable retaining applications where nylon cable ties are not suitable due to fire regulations. Jubilee Quick Release Straps have a very wide clamping range and excess band material can be removed at the point of installation. These clamps are flexible enough to conform to unusually shaped fittings and they are also suitable for very large diameter applications.
