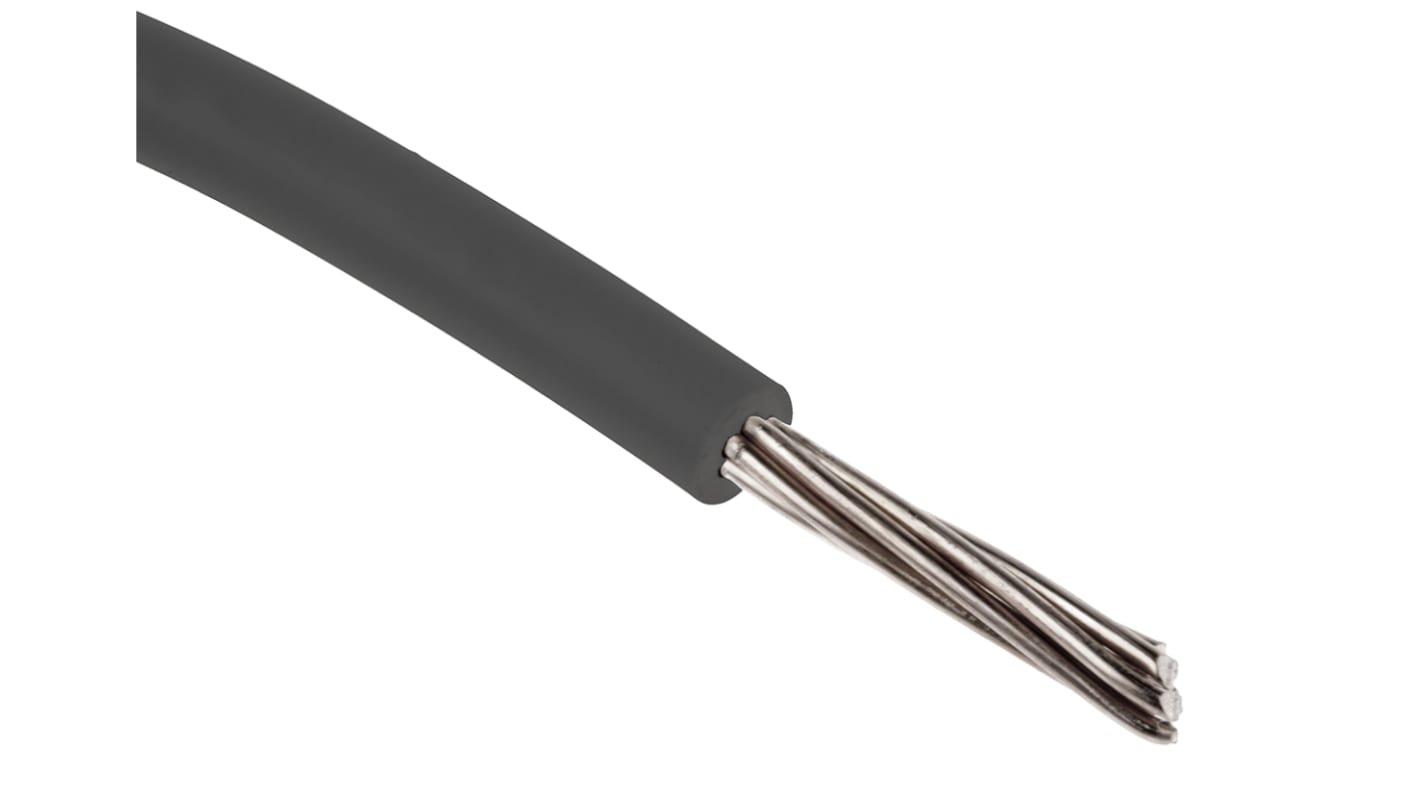

RS PRO Grey 0.13 mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 100m, PVC Insulation

View all Hook Up Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Black 0.13mm² Hook Up Wire, 26 AWG, 7/0.16 mm, 100m, PVC Insulation
RS Stock No.
884-0869

1 Reel of 100 Metre(s)

£10.39

(exc. VAT)

£12.47

(inc. VAT)

RS Stock No.:
884-0893
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.13 mm²

Sheath Colour

Grey

American Wire Gauge

26 AWG

Core Strands

7/0.16 mm

Length

100m

Insulation Material

PVC

Outer Diameter

1.3mm

Voltage Rating

300 V

Maximum Operating Temperature

+105°C

Conductor Material

Stranded Tinned Copper

Standards Met

UL 1569, UL 1581, UL 758

Wire Style

UL1569

Insulation Wall Thickness

0.4mm

Number of Strands

7

Size of Strands

0.16 mm

COO (Country of Origin):
CN

RS UL1569 Hook-Up Wire


The UL1569 Hook-up wire can be used in electronic and appiliance applications where they are not subjected to movement or mechanical damage.

• Soft annealed bare copper conductor
• PVC Insulated
• High flexing UL 10198
• Continuous use up to 105°C
• Various colours available

Note

Tag may also indicate the following: 600 V peak for electronic use only.
