Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	0.2 mm²
	Sheath Colour	Grey
	American Wire Gauge	24 AWG
	Core Strands	7/0.20 mm
	Length	100m
	Insulation Material	PTFE
	Outer Diameter	1.35mm
	Voltage Rating	300 V ac
	Maximum Operating Temperature	+200°C
	Conductor Material	Silver Plated Copper
	Wire Style	UL1180
	Standards Met	RoHS Compliant, UL 758
	Insulation Wall Thickness	0.3mm
	Number of Strands	7
	Size of Strands	0.203 mm

	Select all
	Brand RS PRO
	Cross Sectional Area 0.2 mm²
	Sheath Colour Grey
	American Wire Gauge 24 AWG
	Core Strands 7/0.20 mm
	Length 100m
	Insulation Material PTFE
	Outer Diameter 1.35mm
	Voltage Rating 300 V ac
	Maximum Operating Temperature +200°C
	Conductor Material Silver Plated Copper
	Wire Style UL1180
	Standards Met RoHS Compliant, UL 758
	Insulation Wall Thickness 0.3mm
	Number of Strands 7
	Size of Strands 0.203 mm

COO (Country of Origin):: CN

RS UL 1180 Hook-Up Wire

The UL 1180 hook up wire is designed for internal wiring of electronic, electrical equipment and applications where chemical exposure, temperature extremes and dielectric stresses are a possibility. UL 1180 is suitable to be immersed in gasoline, gasoline vapor and at +80°C maximum oil.

• PTFE Material
• Various Colours
• Stranded silver plated copper conductor
• UL758
• 22, 24, 26, 28AWG

Standards

UL758

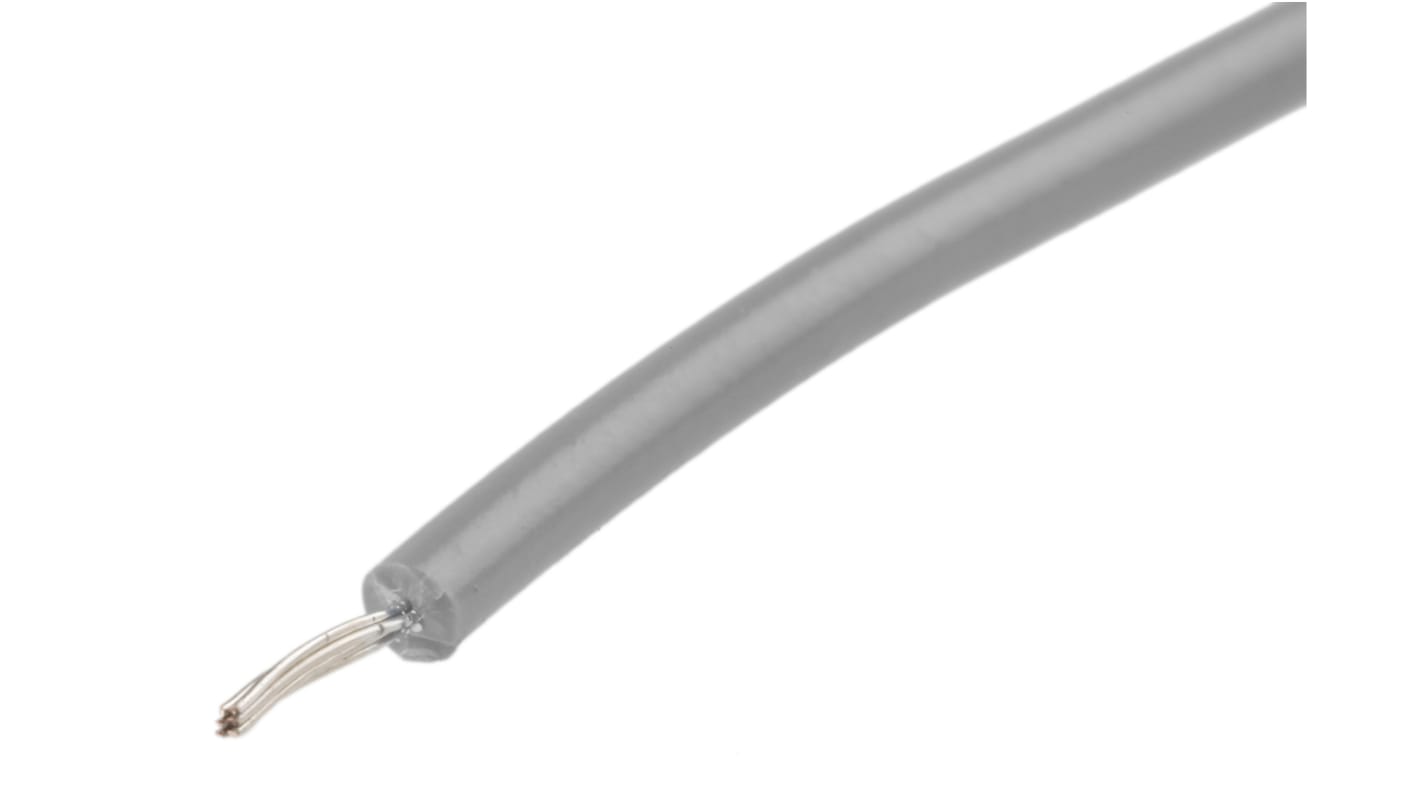

RS PRO Grey 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 100m, PTFE Insulation
