Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 836-0931
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 10 mm² | |
| Sheath Colour | Grey | |
| Voltage Rating | 750 V | |
| Outer Diameter | 5.6 → 6.7mm | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| Insulation Wall Thickness | 1mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 10 mm² | ||
Sheath Colour Grey | ||
Voltage Rating 750 V | ||
Outer Diameter 5.6 → 6.7mm | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Insulation Wall Thickness 1mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- TR

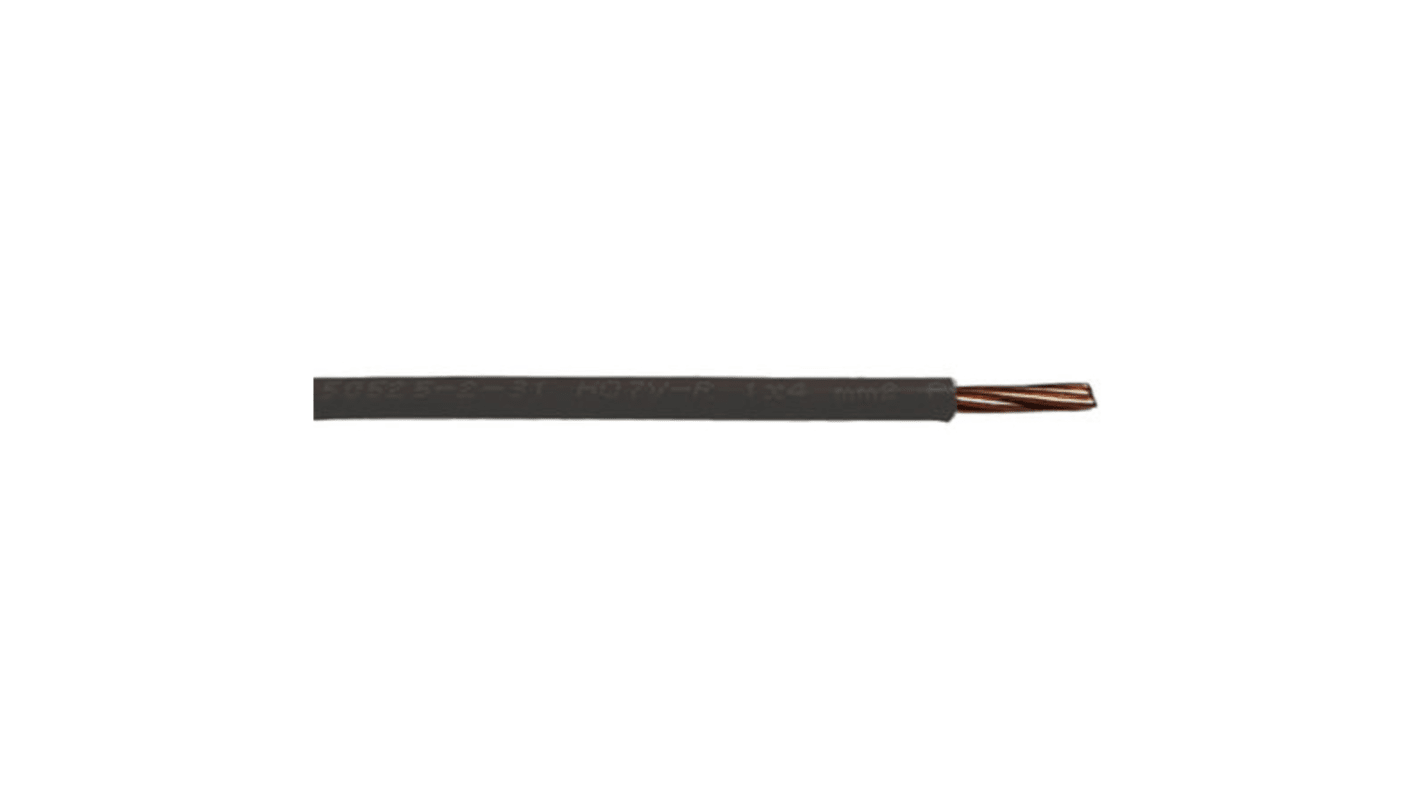

6491X H07V-R Conduit Cable
The 6491X cable H07V-R harmonized is suitable for power and lighting circuits and building wire.
For use in semi flush exposed and embedded conduits, closed installation ducts
Ideal for internal wiring appliances
PVC insulation
Class 2stranded copper conductor
Flame retardant
Ideal for internal wiring appliances
PVC insulation
Class 2stranded copper conductor
Flame retardant
Standards
EN 50525-2-31, IEC 60228, EN 50363-3, IEC 60332-1, RoHS
