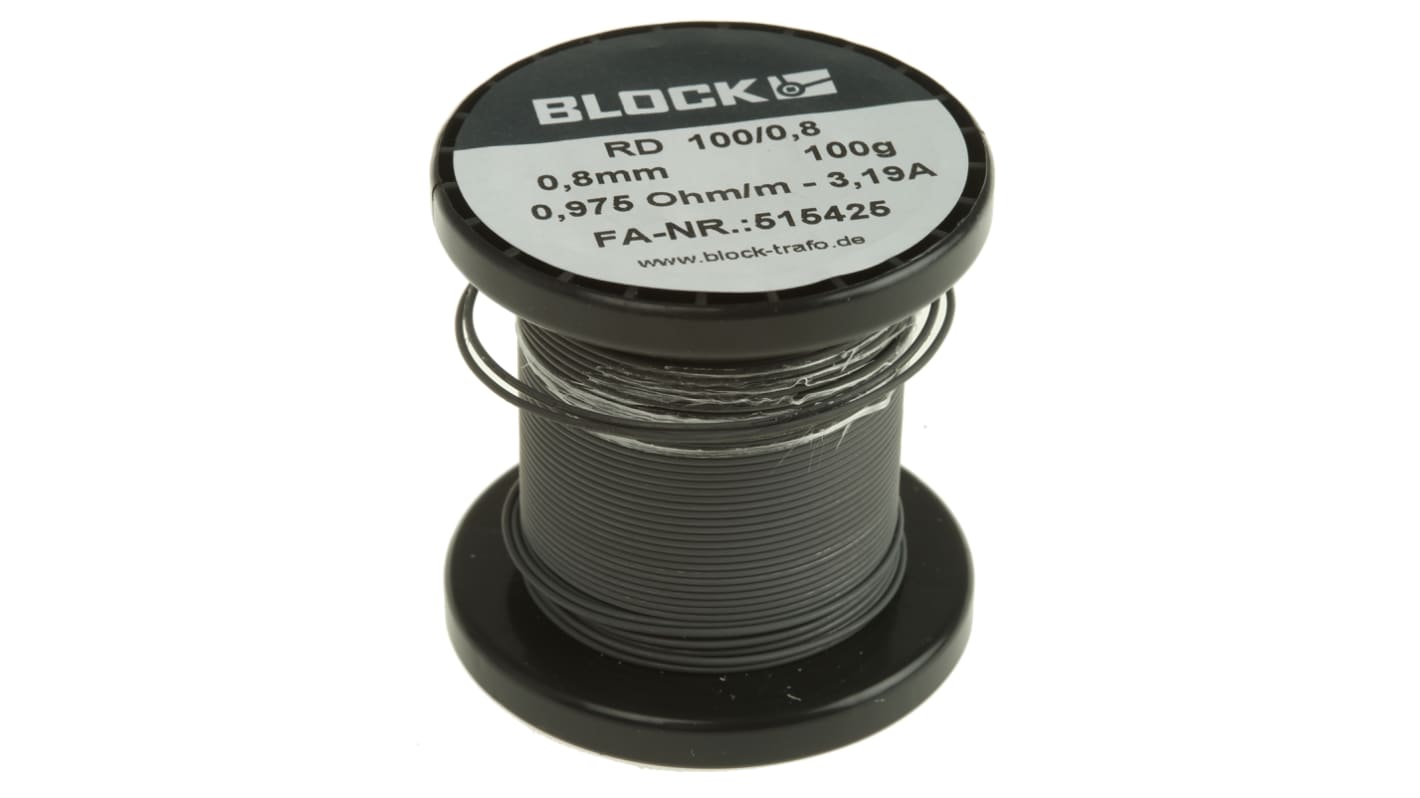

Block RD Series Hook Up Wire, 37 AWG, 1/0.8 mm, 22m, RD 100/0,8
- RS Stock No.:
- 749-6344
- Mfr. Part No.:
- RD 100/0,8
- Brand:
- Block
Bulk discount available
Subtotal (1 unit)*
£19.57
(exc. VAT)
£23.48
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £19.57 |
| 5 - 9 | £17.36 |
| 10 + | £15.31 |
*price indicative
- RS Stock No.:
- 749-6344
- Mfr. Part No.:
- RD 100/0,8
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| American Wire Gauge | 37 AWG | |
| Core Strands | 1/0.8 mm | |
| Length | 22m | |
| Outer Diameter | 0.8mm | |
| Maximum Operating Temperature | +600°C | |
| Minimum Operating Temperature | 0°C | |
| Conductor Material | Copper | |
| Series | RD | |
Select all | ||
|---|---|---|
Brand Block | ||
American Wire Gauge 37 AWG | ||
Core Strands 1/0.8 mm | ||
Length 22m | ||
Outer Diameter 0.8mm | ||
Maximum Operating Temperature +600°C | ||
Minimum Operating Temperature 0°C | ||
Conductor Material Copper | ||
Series RD | ||
- COO (Country of Origin):
- DE
Block Resistance Wire
Block resistance wire is made from a high quality Constantan alloy which ensures that resistance levels remain practically unchanged regardless of temperature. Block resistance wire also features a firmly adhering surface oxide coating that withstands any temperature change and protects against further oxidation under continuous load, whilst maintaining malleability for easy machining. Block resistance wire can be used for soft soldering, hard soldering or welding and applications include the production of technical resistances, shunts and other general laboratory needs.
Resistor allow as specified in DIN 46 461 (CuNi44)
Specific electrical resistance 0.49 ((Ω x mm²)/m)
Average temperature constant of the electrical resistor at 20°C = 0.00004 - 0.00008
Average linear thermal expansion coefficient between 20°C - 100°C = 13.5 x 10 - 6
Melting temperature 1220°C - 1270°C
Maximum permissible wire temperature up to 600°C
Specific electrical resistance 0.49 ((Ω x mm²)/m)
Average temperature constant of the electrical resistor at 20°C = 0.00004 - 0.00008
Average linear thermal expansion coefficient between 20°C - 100°C = 13.5 x 10 - 6
Melting temperature 1220°C - 1270°C
Maximum permissible wire temperature up to 600°C
Constantan Alloy Resistance Wire
