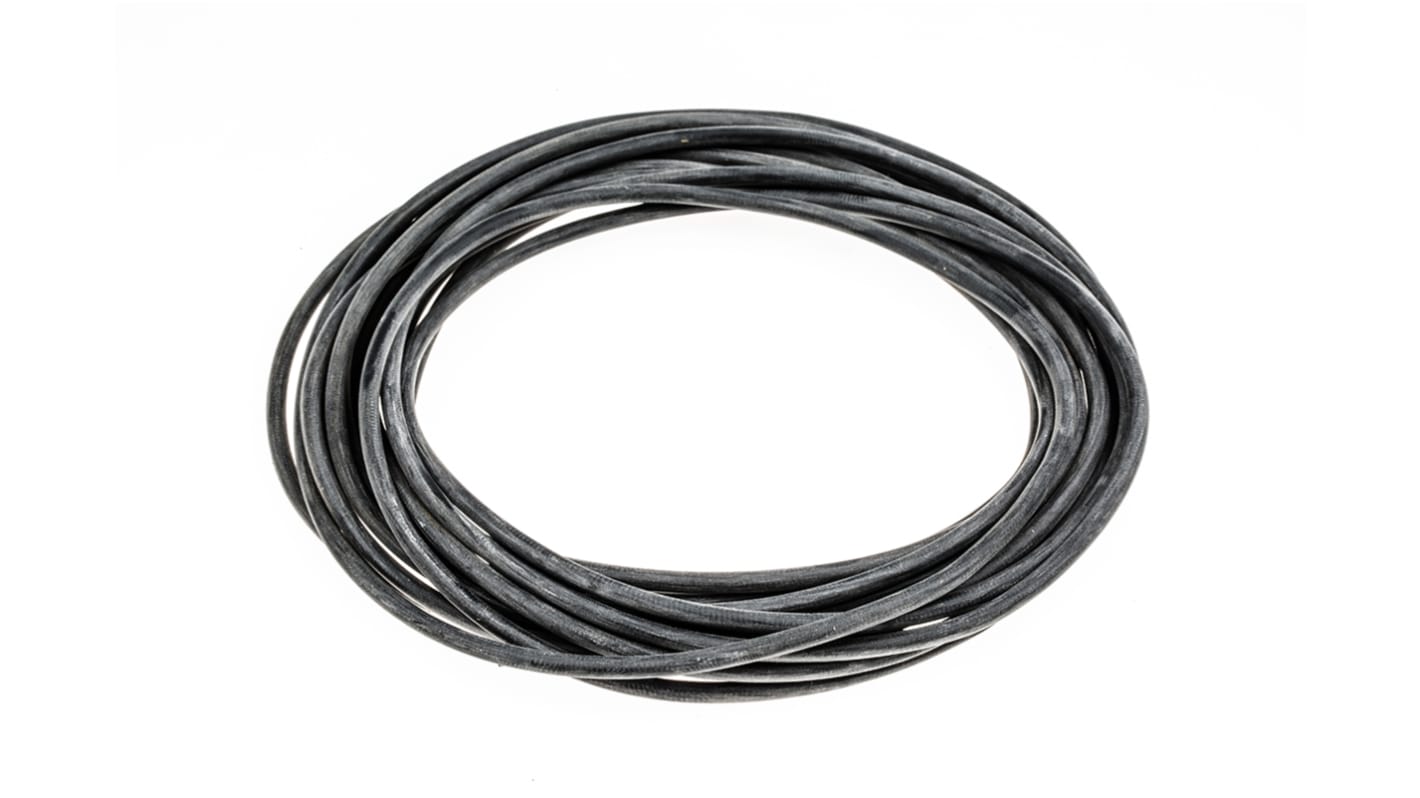

RS PRO Black 1 mm² Test Lead Wire, 17 AWG, 332/0.08 mm, 5m, Silicone Insulation
- RS Stock No.:
- 748-1973
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 5 Metre(s)
£13.59
(exc. VAT)
£16.31
(inc. VAT)
- RS Stock No.:
- 748-1973
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 17 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 332/0.08 mm | |
| Length | 5m | |
| Insulation Material | Silicone | |
| Outer Diameter | 3.3mm | |
| Voltage Rating | 500 V | |
| Maximum Operating Temperature | +200°C | |
| Minimum Operating Temperature | -55°C | |
| Current Rating | 19 A | |
| Conductor Material | Tinned Copper | |
| Insulation Wall Thickness | 1mm | |
| Shield Type | Tinned Copper | |
| Number of Strands | 332 | |
| Size of Strands | 0.06 mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 17 AWG | ||
Cable Shape Single Core | ||
Core Strands 332/0.08 mm | ||
Length 5m | ||
Insulation Material Silicone | ||
Outer Diameter 3.3mm | ||
Voltage Rating 500 V | ||
Maximum Operating Temperature +200°C | ||
Minimum Operating Temperature -55°C | ||
Current Rating 19 A | ||
Conductor Material Tinned Copper | ||
Insulation Wall Thickness 1mm | ||
Shield Type Tinned Copper | ||
Number of Strands 332 | ||
Size of Strands 0.06 mm | ||
- COO (Country of Origin):
- CN
RS PRO Tinned Copper Test Lead Wire 1 mm² CSA 500 V 19 A Black Silicone, 332 Strands 5 m
If you need a test lead wire that will withstand harsh conditions and high currents, turn to this option from RS PRO.
Its core is made up of 332 tinned copper conductor strands, meaning it's flexible and offers greater resistance than solid wires. With a black silicone sheath that's 1 mm thick, it can withstand temperatures as low as -55°C or as high as +200°C without melting or cracking. It has a current rating of 19 A, so it's safe for high-current applications.
The wire comes in a length of 5 metres, so you can assemble test leads to any desired length. It has a cross-sectional area of 1 mm² and an outer diameter of 3.3 mm. It conforms to electrostatic control standards and is flame-retardant and halogen-free.
This test lead wire is useful for monitoring and testing equipment that's exposed to high temperatures, oils or radiation.
Its core is made up of 332 tinned copper conductor strands, meaning it's flexible and offers greater resistance than solid wires. With a black silicone sheath that's 1 mm thick, it can withstand temperatures as low as -55°C or as high as +200°C without melting or cracking. It has a current rating of 19 A, so it's safe for high-current applications.
The wire comes in a length of 5 metres, so you can assemble test leads to any desired length. It has a cross-sectional area of 1 mm² and an outer diameter of 3.3 mm. It conforms to electrostatic control standards and is flame-retardant and halogen-free.
This test lead wire is useful for monitoring and testing equipment that's exposed to high temperatures, oils or radiation.
Features and Benefits
• Test lead wire
• Black silicone sheath
• Core of 332 0.06 mm tinned copper conductor strands
• Insulation wall thickness of 1 mm
• Outer diameter of 3.3 mm
• Cross-sectional area of 1 mm²
• American Wire Gauge (AWG) 17
• Voltage rating of 500 V
• Current rating of 19 A
• Minimum operating temperature of -55°C
• Maximum operating temperature of +200°C
• Black silicone sheath
• Core of 332 0.06 mm tinned copper conductor strands
• Insulation wall thickness of 1 mm
• Outer diameter of 3.3 mm
• Cross-sectional area of 1 mm²
• American Wire Gauge (AWG) 17
• Voltage rating of 500 V
• Current rating of 19 A
• Minimum operating temperature of -55°C
• Maximum operating temperature of +200°C
