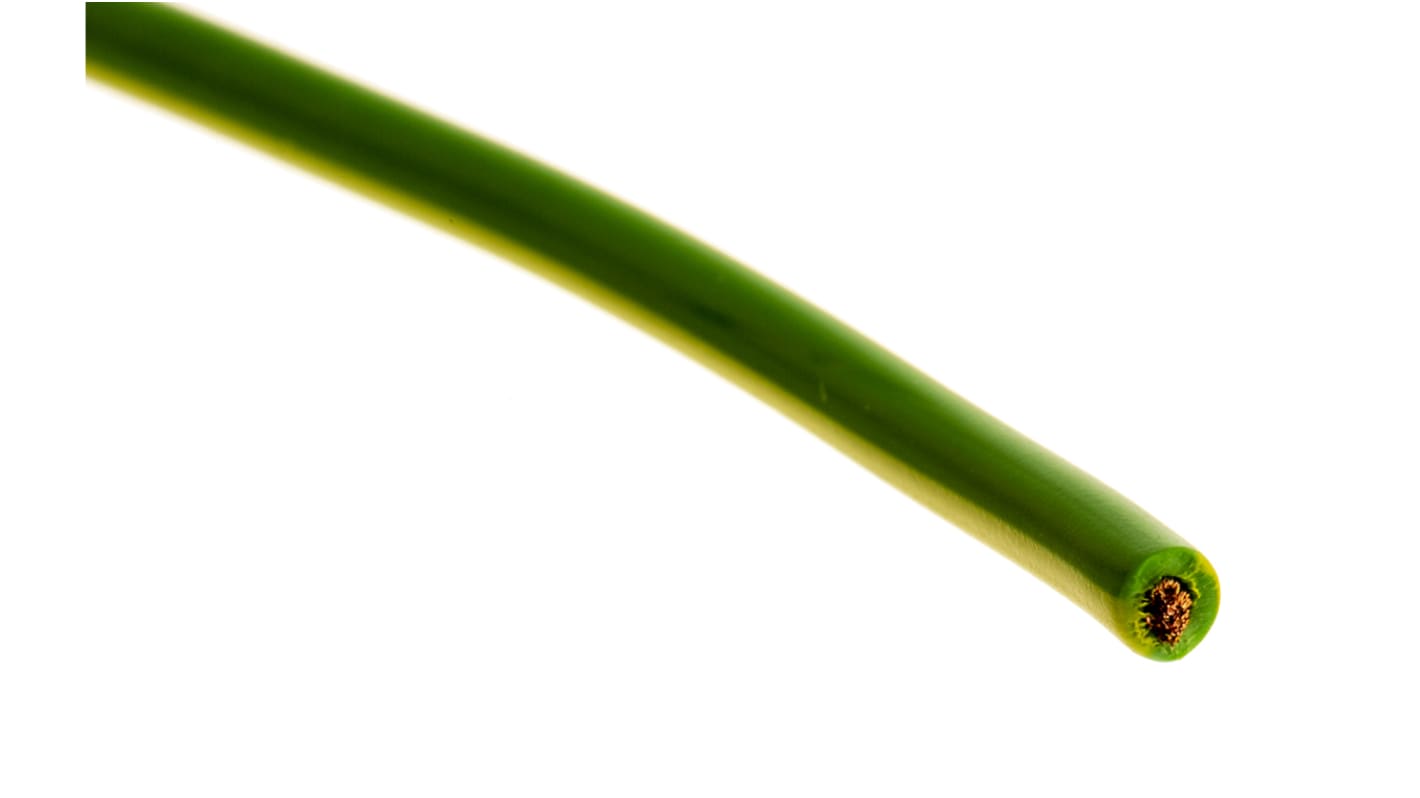

Lapp Green/Yellow 1 mm² Hookup & Equipment Wire, 17 AWG, 100m, PVC Insulation, 4560027S
- RS Stock No.:
- 719-1706
- Mfr. Part No.:
- 4560027S
- Brand:
- Lapp
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 719-1706
- Mfr. Part No.:
- 4560027S
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 1 mm² | |
| Sheath Colour | Green/Yellow | |
| Cable Shape | Single Core | |
| American Wire Gauge | 17 AWG | |
| Length | 100m | |
| Insulation Material | PVC | |
| Outer Diameter | 2.9mm | |
| Voltage Rating | 500 V | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Copper | |
| Size of Strands | 0.07 mm | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 1 mm² | ||
Sheath Colour Green/Yellow | ||
Cable Shape Single Core | ||
American Wire Gauge 17 AWG | ||
Length 100m | ||
Insulation Material PVC | ||
Outer Diameter 2.9mm | ||
Voltage Rating 500 V | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Size of Strands 0.07 mm | ||
LiFY Single Core
From Lapp, this LiFY wire is extra-finely stranded and ideal for wiring portable devices and mobile machinery. Extremely flexible, even at cold temperatures, this measuring cable presents a reliable and a versatile wiring solution in demanding conditions where vibration might be a factor.
With PVC insulation, this special class 6 single core cable is protected for low voltage.
Features and Benefits
• Highly Flexible LiFY Cores
• Conductor of fine wire strands of copper in accordance to VDE 0295, class 6
• Protected for Low Voltage
• This cable conforms to ECD 73/23/EEC (low voltage directive)
• Operating Temperature under Flexible Use: -15°C to +70°C
Applications
While this wire is optimal for use in mobile and portable equipment, and is also frequently used in measurement assemblies in applications such as;
• Technical Training Sessions
• Education
• Electric Laboratories
Frequently Asked Questions
Can this wire be used outdoors?
These wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
With PVC insulation, this special class 6 single core cable is protected for low voltage.
Features and Benefits
• Highly Flexible LiFY Cores
• Conductor of fine wire strands of copper in accordance to VDE 0295, class 6
• Protected for Low Voltage
• This cable conforms to ECD 73/23/EEC (low voltage directive)
• Operating Temperature under Flexible Use: -15°C to +70°C
Applications
While this wire is optimal for use in mobile and portable equipment, and is also frequently used in measurement assemblies in applications such as;
• Technical Training Sessions
• Education
• Electric Laboratories
Frequently Asked Questions
Can this wire be used outdoors?
These wires are designed to be used in indoor systems, however, the wide temperature operation resistance may allow for a short period of time outdoor operation.
Which wire types are a better choice, stranded or solid?
Both stranded and solid wire have the same resistance properties but stranded wire guarantee an extra flexibility, resistance to bending and are generally easier to install than solid cables.
LAPP Unitronic® Sensor/Actuator Cables
Signal transmission cables for use with industrial M8, M12 & M18 threaded connectors to connect with sensors, actuators, and distributed I/O. Industry standard colour coded and OD to match the connector gland size.
Color coding:
3 core – Brown, Blue, Black
4 core – Brown, White, Blue, Black
5 core – Brown, White, Blue, Black, Grey
Color coding:
3 core – Brown, Blue, Black
4 core – Brown, White, Blue, Black
5 core – Brown, White, Blue, Black, Grey
