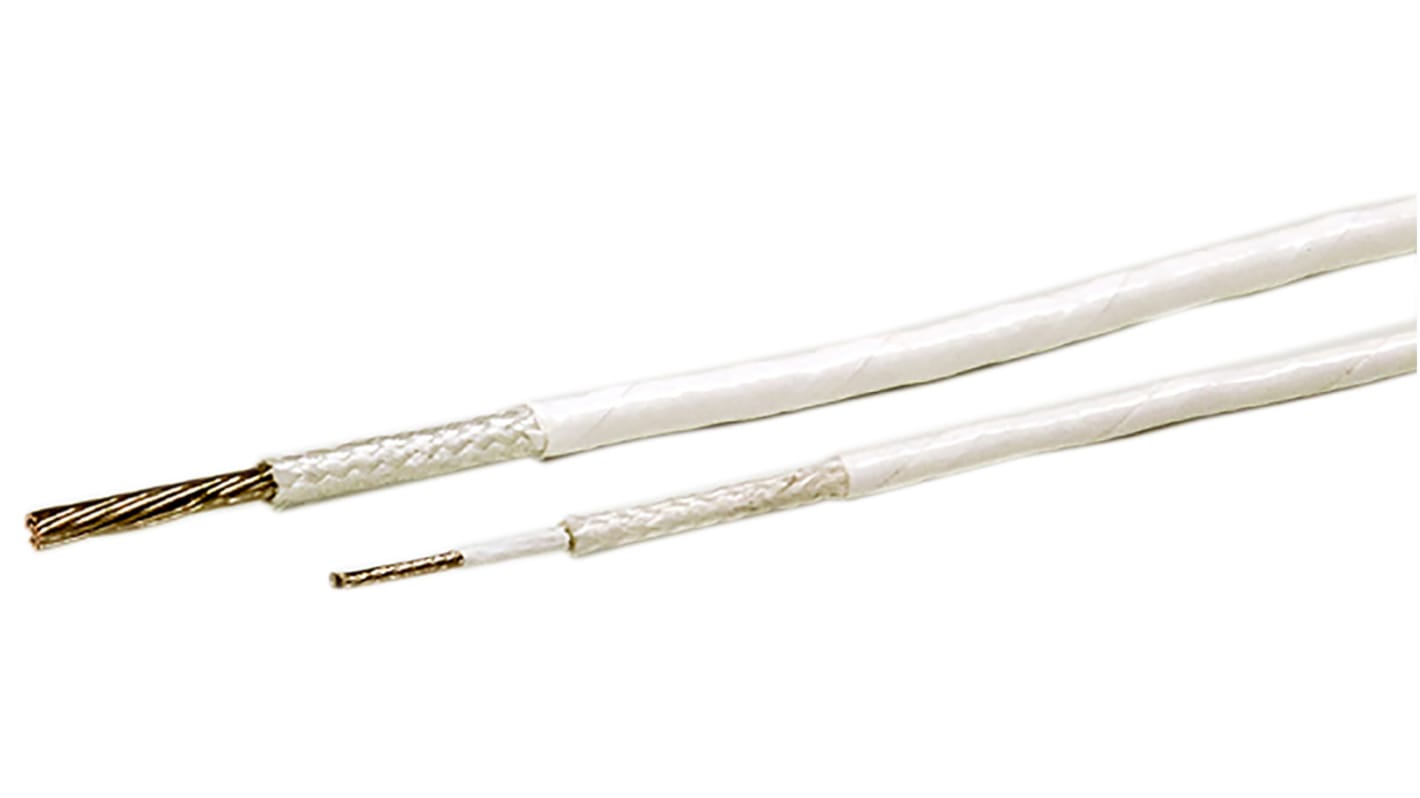

RS PRO Grey 3.8 mm² Harsh Environment Wire, 12 AWG, 37/0.315 mm, 100m, PTFE Insulation
- RS Stock No.:
- 232-1078
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 232-1078
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 3.8 mm² | |
| Sheath Colour | Grey | |
| American Wire Gauge | 12 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 37/0.315 mm | |
| Length | 100m | |
| Insulation Material | PTFE | |
| Outer Diameter | 3.8mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +260°C | |
| Minimum Operating Temperature | -70°C | |
| Conductor Material | Nickel Plated Copper | |
| Standards Met | EFGLAS BS G222 | |
| Number of Strands | 37 | |
| Size of Strands | 0.315 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 3.8 mm² | ||
Sheath Colour Grey | ||
American Wire Gauge 12 AWG | ||
Cable Shape Single Core | ||
Core Strands 37/0.315 mm | ||
Length 100m | ||
Insulation Material PTFE | ||
Outer Diameter 3.8mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +260°C | ||
Minimum Operating Temperature -70°C | ||
Conductor Material Nickel Plated Copper | ||
Standards Met EFGLAS BS G222 | ||
Number of Strands 37 | ||
Size of Strands 0.315 mm | ||
- COO (Country of Origin):
- GB
Standards
EFGLAS BS G222; MIL-W-22759
