RS PRO Brown 35 mm² Conduit & Trunking Cable, 7/2.52 mm, 100m
- RS Stock No.:
- 185-3982
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£625.52
(exc. VAT)
£750.62
(inc. VAT)
- RS Stock No.:
- 185-3982
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 35 mm² | |
| Sheath Colour | Brown | |
| Cable Shape | Single Core | |
| Core Strands | 7/2.52 mm | |
| Length | 100m | |
| Voltage Rating | 450 V dc, 750 V ac | |
| Outer Diameter | 11.3mm | |
| Cable Type | 6491B | |
| Insulation Wall Thickness | 1.2mm | |
| Size of Strands | 2.52 mm | |
| Outer Sheath Material | LSZH | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 35 mm² | ||
Sheath Colour Brown | ||
Cable Shape Single Core | ||
Core Strands 7/2.52 mm | ||
Length 100m | ||
Voltage Rating 450 V dc, 750 V ac | ||
Outer Diameter 11.3mm | ||
Cable Type 6491B | ||
Insulation Wall Thickness 1.2mm | ||
Size of Strands 2.52 mm | ||
Outer Sheath Material LSZH | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- GB

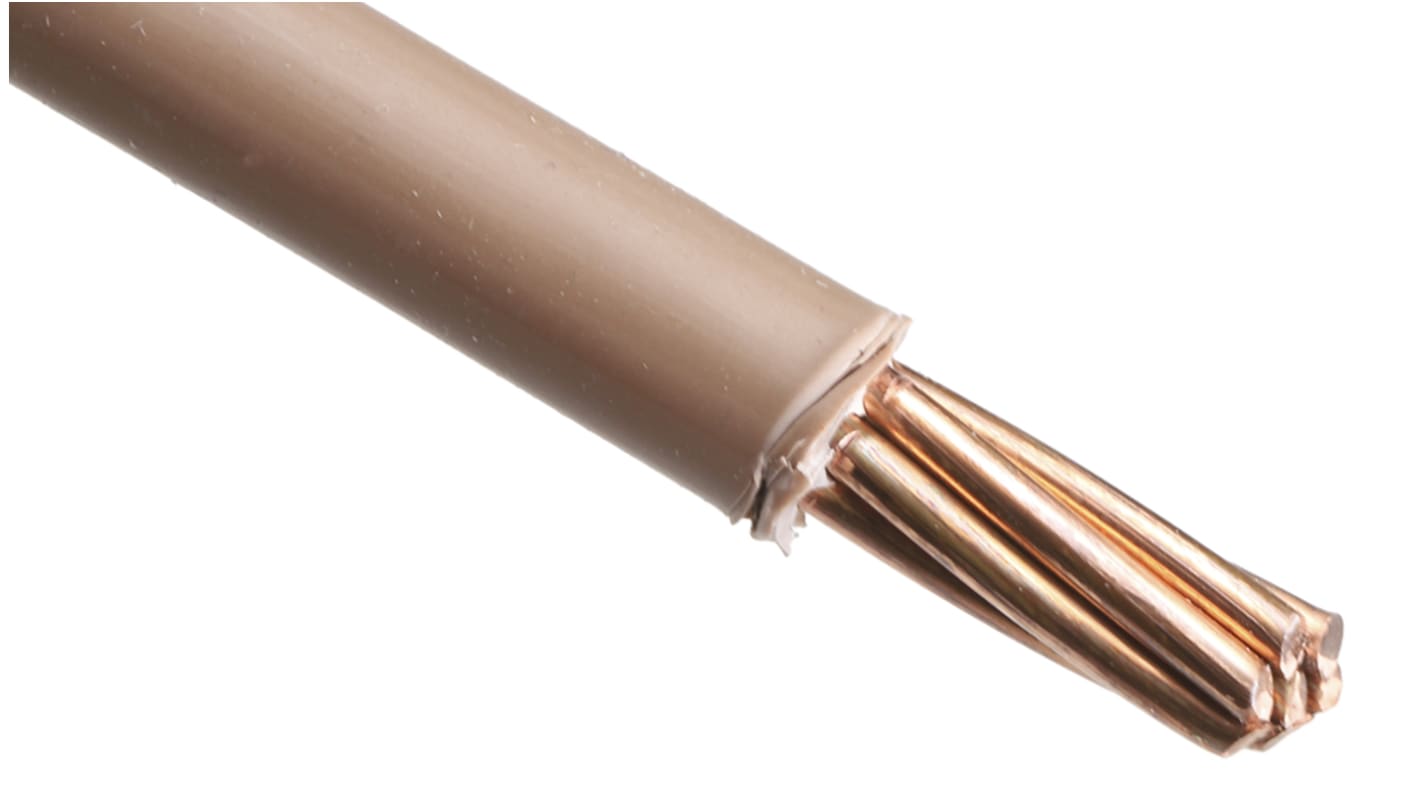

RS PRO Single Core Cable
The RS PRO 100m low smoke non-halogen (LSNH) thermosetting insulated single-core cable has a plain annealed copper conductor with a nominal cross-sectional area of 35mm². The HO7Z-R harmonised brown coloured cable has a voltage rating of 450VDC and 750VAC. It is designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire. The cable is intended for installation in surface mount or embedded conduits, or similar closed systems. This cable is suitable for use in channels with cover.
Features and Benefits
• Operating temperature ranges between -15°C and 90°C
• Low smoke non halogen insulation
• Insulation wall thickness: 1.2mm
• Strand size: 2.52mm
• Overall diameter ranges between 9mm and 11.3mm
• Number of strands: 7
• Low smoke non halogen insulation
• Insulation wall thickness: 1.2mm
• Strand size: 2.52mm
• Overall diameter ranges between 9mm and 11.3mm
• Number of strands: 7
Applications
• Switchgear
• Controlgear
• Fixed protection installation
• Controlgear
• Fixed protection installation
Certifications
• BS EN 60228
• BS EN 50363-5
• BS EN 50525-3-41:2011
• BS EN 50363-5
• BS EN 50525-3-41:2011
