RS PRO Grey 2.5 mm² Conduit & Trunking Cable, 1/1.78 mm, 100m

View all Hook Up Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
185-3907
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

2.5 mm²

Sheath Colour

Grey

Cable Shape

Single Core

Core Strands

1/1.78 mm

Length

100m

Voltage Rating

450 V dc, 750 V ac

Outer Diameter

3.9mm

Cable Type

6491X

Insulation Wall Thickness

0.8mm

Number of Strands

1

Size of Strands

1.78 mm

Outer Sheath Material

PVC

COO (Country of Origin):
GB

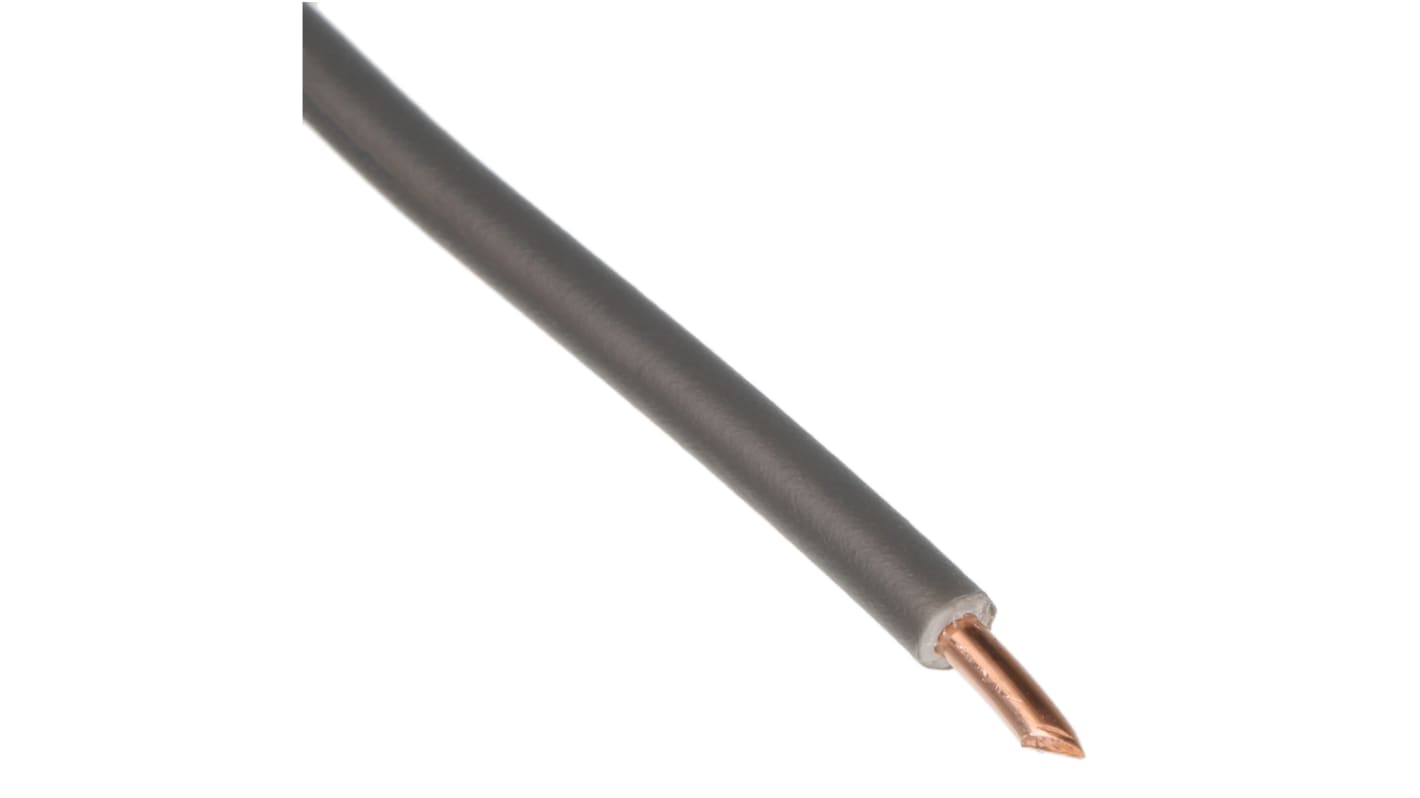

RS PRO Single Core Cable


The RS PRO 100m PVC insulated single-core cable has a plain annealed copper conductor with a nominal cross-sectional area of 2.5mm². The HO7V-U harmonised grey coloured cable has a voltage rating of 450VDC and 750VAC. The cable is intended for installation in surface mount or embedded conduits, or similar closed systems. This cable is suitable for use in channels with cover.

Features and Benefits


• Operating temperature ranges between -15°C and 70°C
• Insulation wall thickness: 0.8mm
• Strand size: 1.78mm
• Overall diameter ranges between 3.2mm and 3.9mm
• Number of strands: 1

Applications


• Switchgear
• Controlgear
• Fixed protection installation

Certifications


• BS EN 60228
• BS EN 50363-3
• BS EN 50525-2-31:2011
